Patriot Tractor, Truck, & Equipment LLC is your local home for strong, powerful tractors made by Bad Boy and Yanmar. We promise personalized service and will give you the attention you deserve while you shop for your brand-new tractor. Pickup and delivery are both available for all purchases. Financing options are offered, and we also do consignments, offering you the ability to sell your pre-owned equipment on our lot for a small percentage of the sales. Reach out today if you're interested in tractor sales in Dover, NH or a surrounding area!
Visit us in Somersworth, NH to check out our inventory of top-of-the-line tractors. We're proud to be a veteran-owned and -operated family business.
Caution! Attachments and links (urls) can contain deceptive and/or malicious content.

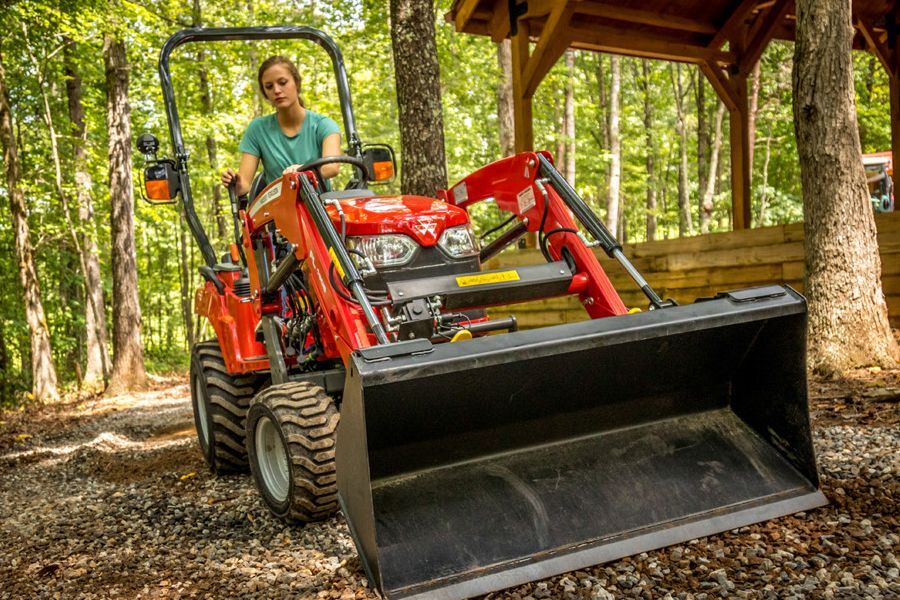

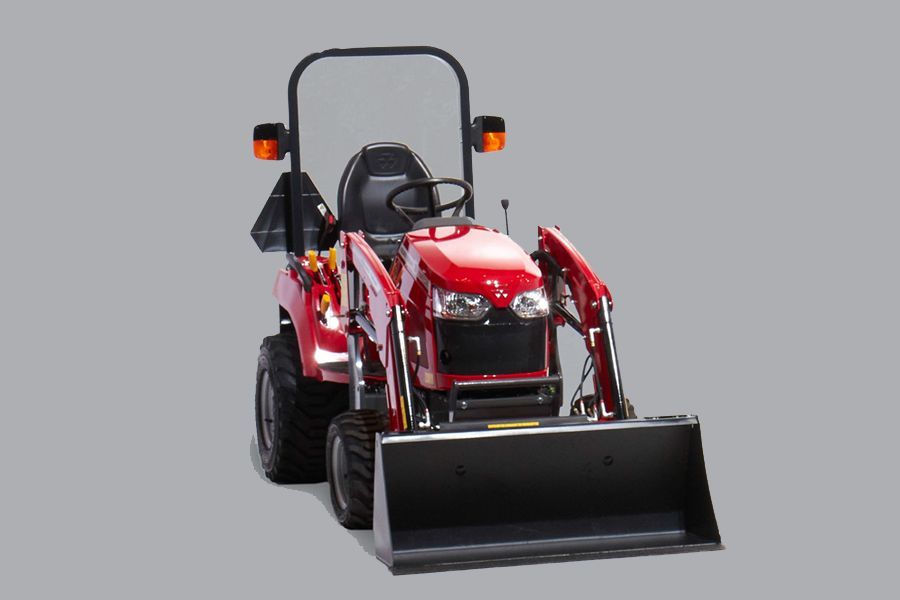

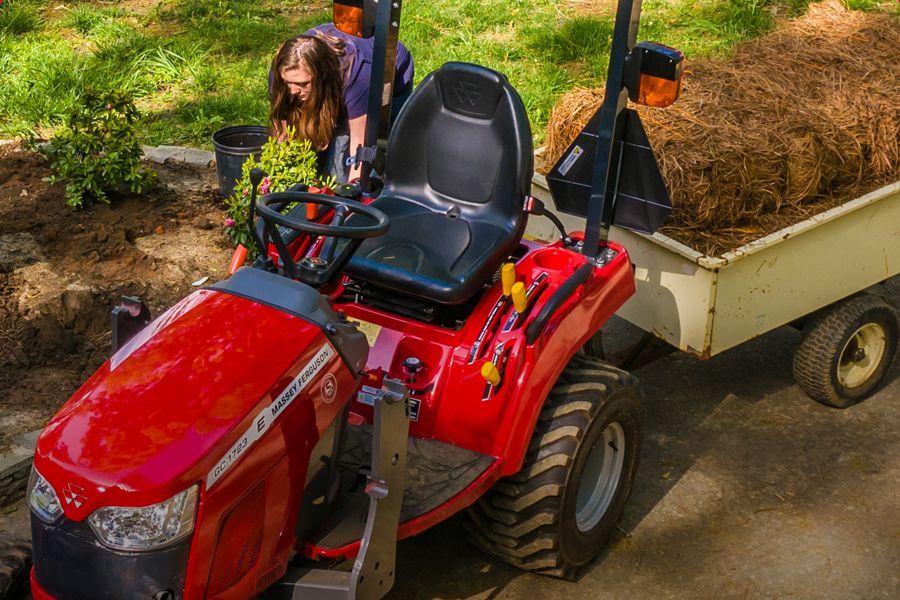

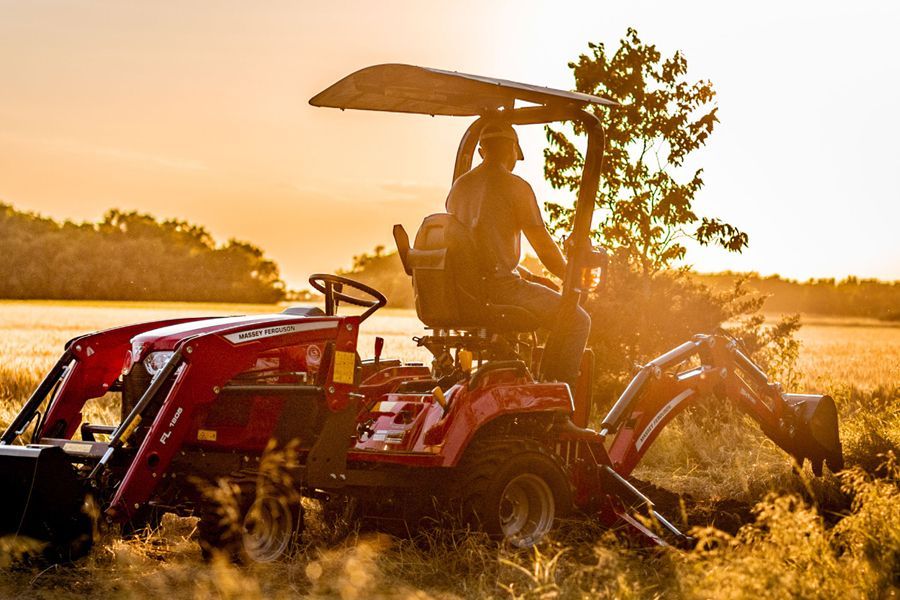

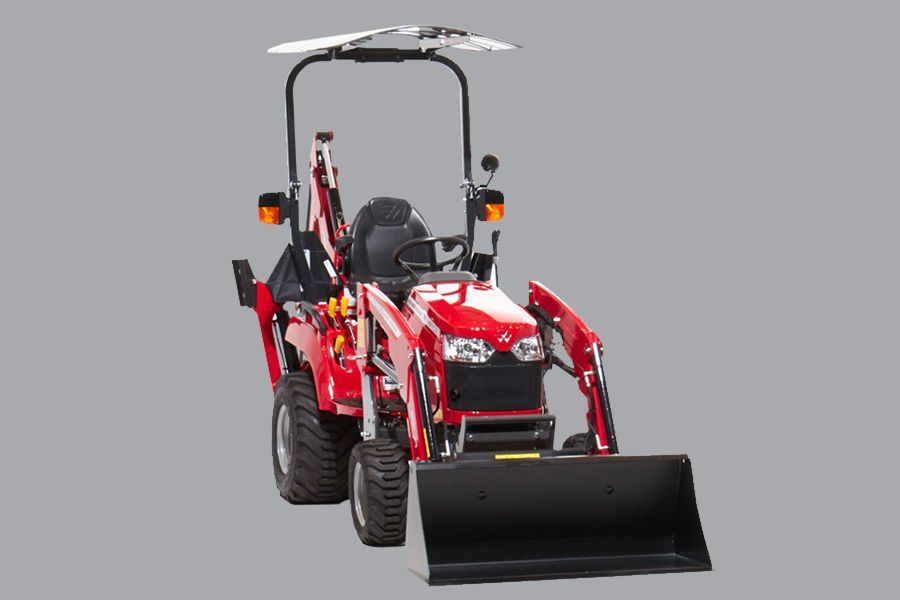

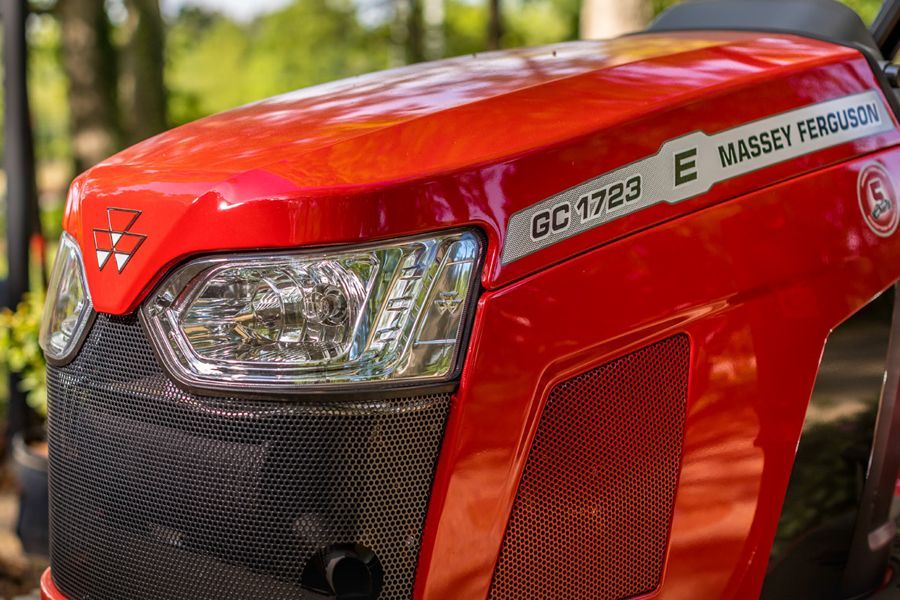

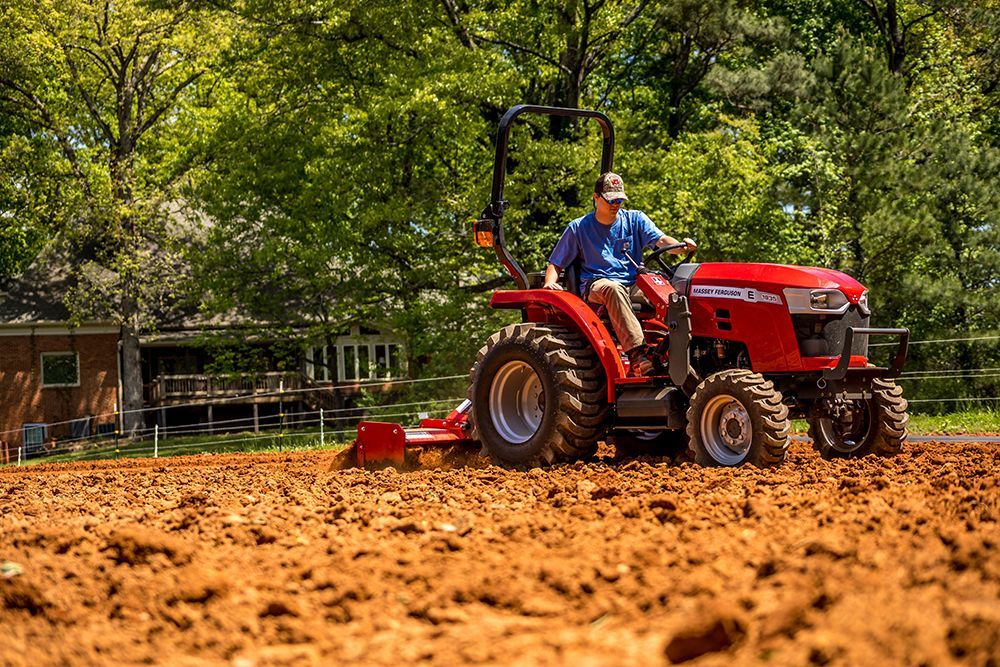

If you're looking to get more out of your tractor, the MF GC1723 E sub-compact model is the go-to standard for getting the job done. With the optional loader attachment, you can tackle material handling, driveway maintenance, and larger chores with ease. Plus, the loader can be effortlessly removed for mowing or navigating tight spaces.
MFGC1723E
Rated Engine Power @HP (kW): 22.5 (16.8)
Rated Engine Speed @ RPM: 2,600
PTO Power @ HP (kW): 18.3 (13.6)
Engine: Iseki 1.1-liter, 3-cylinder, liquid-cooled diesel
Transmission: 2-range hydrostatic transmission with side-by-side foot pedals and cruise control
Rear PTO: Independent, 540 RPM, 1.375-inch, six-spline
Mid-PTO (in.): Independent, 2000 RPM, 1-inch, fifteen spline
Hydraulic Flow @GPM (Lpm): 6.3 (23.0)
3-Point Hitch: Cat. I
3-Point Hitch Lift Capacity – Pivot Pin | lbs. (kg): 1,191 (540)
3-Point Hitch Lift Capacity – 24 in.
behind Pivot Pins | lbs. (kg): 661 (300)
Tire Options (AG, Turf, R4 Ind.): Front: 18 x 8.50–10 Rear: 26 x 12.00–12
ROPS Type: Fixed
Tractor-Loader-Backhoe Package: No
MFGC1723EB
Rated Engine Power @HP (kW): 22.5 (16.8)
Rated Engine Speed @ RPM: 2,600
PTO Power @ HP (kW): 18.3 (13.6)
Engine: Iseki 1.1-liter, 3-cylinder, liquid-cooled diesel
Transmission: 2-range hydrostatic transmission with side-by-side foot pedals and cruise control
Rear PTO: Independent, 540 RPM, 1.375-inch, six-spline
Mid-PTO (in.): Independent, 2000 RPM, 1-inch, fifteen spline
Hydraulic Flow @GPM (Lpm): 6.3 (23.0)
3-Point Hitch: Cat. I
3-Point Hitch Lift Capacity – Pivot Pin | lbs. (kg): 1,191 (540)
3-Point Hitch Lift Capacity – 24 in.
behind Pivot Pins | lbs. (kg): 661 (300)
Tire Options (AG, Turf, R4 Ind.): Front: 18 x 8.50–10 Rear: 26 x 12.00–12
ROPS Type: Folding
Tractor-Loader-Backhoe Package: Yes
FL1805
Tool Carrier: Skid Steer Quick Attach
Bucket Width: 48in
Maximum Lift Height – Pivot Pin: 74in (1,880mm)
Maximum Dump Angle: 43°
Maximum Rollback Angle: 30°
Digging Depth: 2.0in (50mm)
Lift Capacity to Maximum Height – Pivot Pin: 922 lbs. (418kg)
Breakout Force – Pivot Pin: 1,392 lbs. (631kg)
Lift Cylinder Diameter: 2 x 1.57in (40)mm
Bucket Cylinder Diameter: 2 x 1.57in (40mm)
BH2720
Control Type: SAE with boom float
Digging Depth: 76in (192cm)
Max Reach: 107in (272cm)
Bucket Digging Force: 2,184 lbs. (991kg)
Boom Digging Force: 1,541 lbs. (699kg)
Loading Height: 66in (168cm)
Transport Height: 71in (180cm)
Swing Arc: 150°
Bucket Rotation: 177°
Bucket Widths: 10in (opt) 12in (std) 16in (opt)

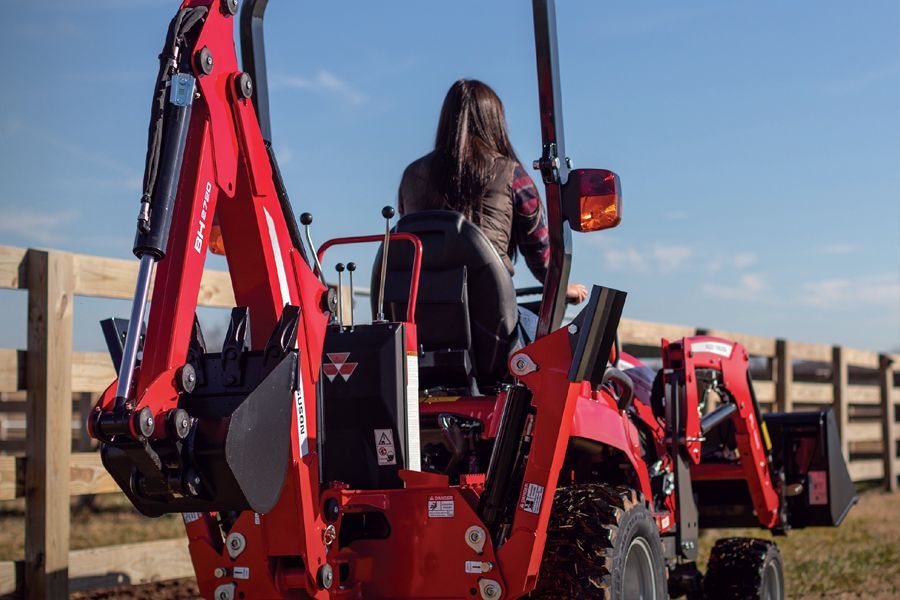

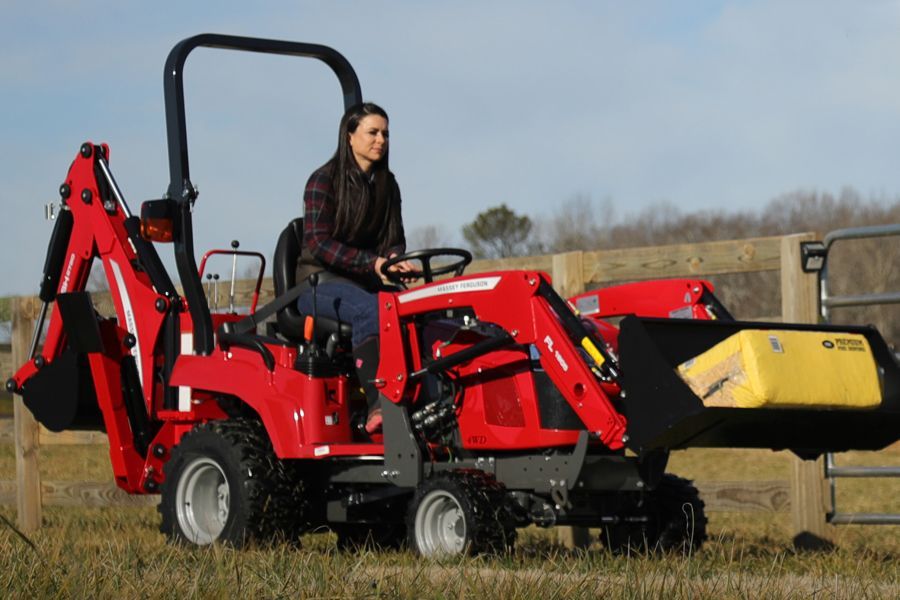

The MF GC1725 offers unparalleled versatility. With the loader/backhoe combo, there's virtually no task you can't handle. Plus, both attachments are designed for easy removal, providing you with ultimate flexibility. Upgrading to the MF GC1725 M adds even more features, such as a 12V outlet in the glove box, a seat with foldable armrests, taillight brush guards, and a rear work light, enhancing your overall experience.
MFGC1725M
Rated Engine Power @HP (kW): 24.5 (18.6)
Rated Engine Speed @ RPM: 3,000
PTO Power @ HP (kW): 19.6 (14.8)
Engine: Iseki 1.1-liter, 3-cylinder, liquid-cooled diesel
Transmission: 2-range hydrostatic transmission with side-by-side foot pedals and cruise control
Rear PTO: Independent, 540 RPM, 1.375-inch, six-spline
Mid-PTO (in.): Independent, 2000 RPM, 1-inch, fifteen spline
Hydraulic Flow @GPM (Lpm): 6.8 (25.7)
3-Point Hitch: Cat. I
3-Point Hitch Lift Capacity – Pivot Pin | lbs. (kg): 1,191 (540)
3-Point Hitch Lift Capacity – 24 in.
behind Pivot Pins | lbs. (kg): 661 (300)
Tire Options (AG, Turf, R4 Ind.): Front: 18 x 8.50–10 Rear: 26 x 12.00–12
ROPS Type: Fixed
Tractor-Loader-Backhoe Package: No
MFGC1725MB
Rated Engine Power @HP (kW): 24.5 (18.6)
Rated Engine Speed @ RPM: 3,000
PTO Power @ HP (kW): 19.6 (14.8)
Engine: Iseki 1.1-liter, 3-cylinder, liquid-cooled diesel
Transmission: 2-range hydrostatic transmission with side-by-side foot pedals and cruise control
Rear PTO: Independent, 540 RPM, 1.375-inch, six-spline
Mid-PTO (in.): Independent, 2000 RPM, 1-inch, fifteen spline
Hydraulic Flow @GPM (Lpm): 6.8 (25.7)
3-Point Hitch: Cat. I
3-Point Hitch Lift Capacity – Pivot Pin | lbs. (kg): 1,191 (540)
3-Point Hitch Lift Capacity – 24 in.
behind Pivot Pins | lbs. (kg): 661 (300)
Tire Options (AG, Turf, R4 Ind.): Front: 18 x 8.50–10 Rear: 26 x 12.00–12
ROPS Type: Folding
Tractor-Loader-Backhoe Package: Yes
FL1805
Tool Carrier: Skid Steer Quick Attach
Bucket Width: 48in
Maximum Lift Height – Pivot Pin: 74in (1,880mm)
Maximum Dump Angle: 43°
Maximum Rollback Angle: 30°
Digging Depth: 2.0in (50mm)
Lift Capacity to Maximum Height – Pivot Pin: 922 lbs. (418kg)
Breakout Force – Pivot Pin: 1,392 lbs. (631kg)
Lift Cylinder Diameter: 2 x 1.57in (40)mm
Bucket Cylinder Diameter: 2 x 1.57in (40mm)
BH2720
Control Type: SAE with boom float
Digging Depth: 76in (192cm)
Max Reach: 107in (272cm)
Bucket Digging Force: 2,184 lbs. (991kg)
Boom Digging Force: 1,541 lbs. (699kg)
Loading Height: 66in (168cm)
Transport Height: 71in (180cm)
Swing Arc: 150°
Bucket Rotation: 177°
Bucket Widths: 10in (opt) 12in (std) 16in (opt)

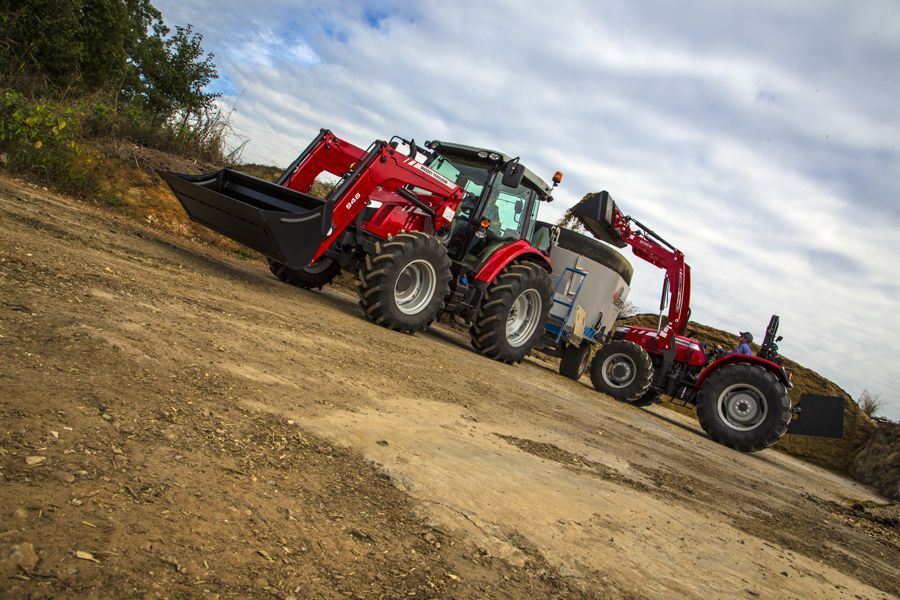

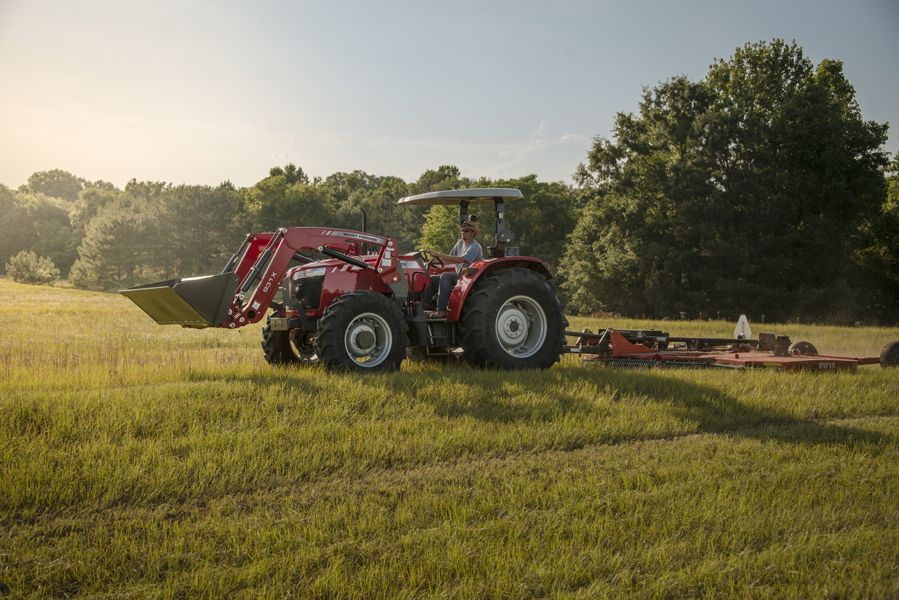

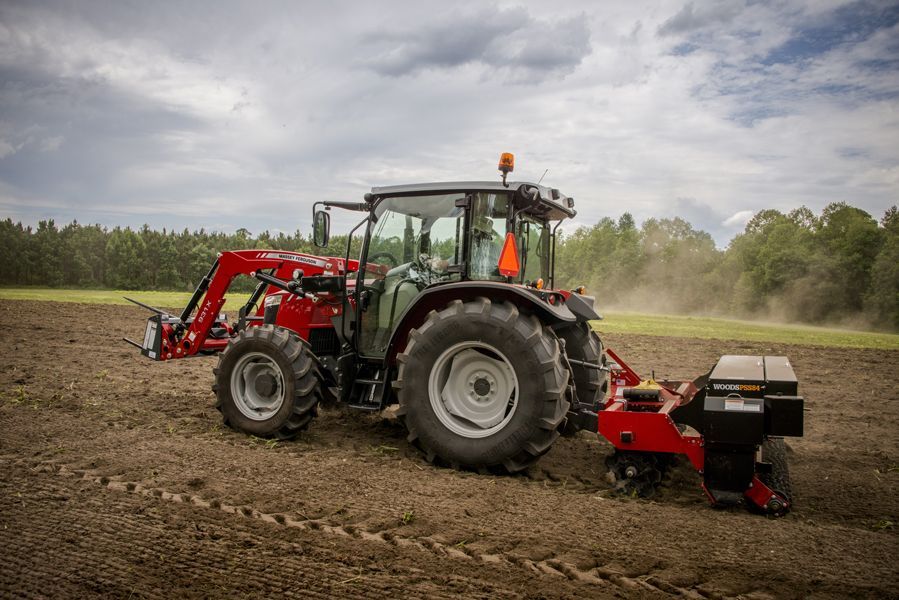

You’ve got a ton of different jobs to tend to each day, and the last thing you need is a feeble tractor that shies away from the really tough ones. The MF 4700, MF 5700 and MF 6700 Global Series are heavier than other tractors in their class, designed to handle larger, heavier implements and more demanding applications. So, yeah, they’ll be there when you need them.

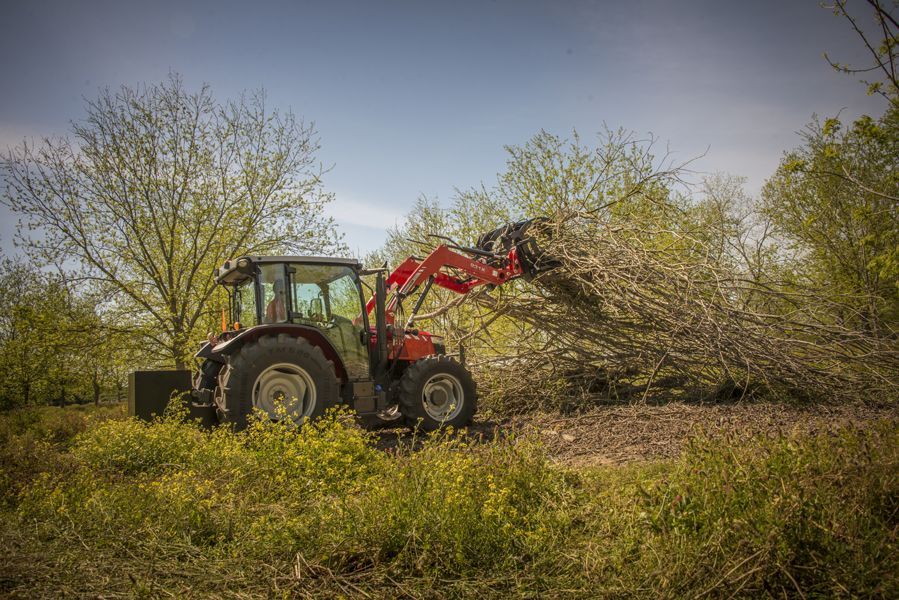

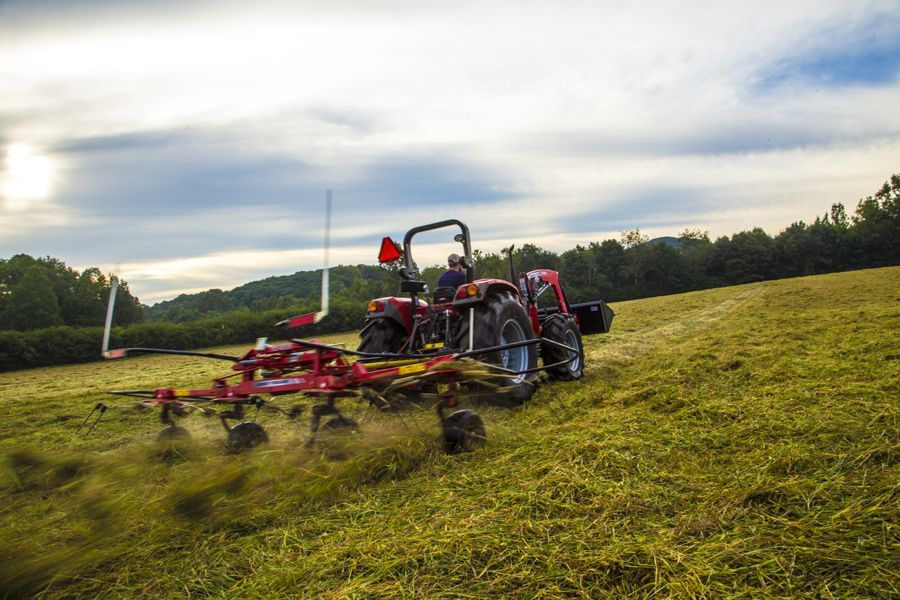

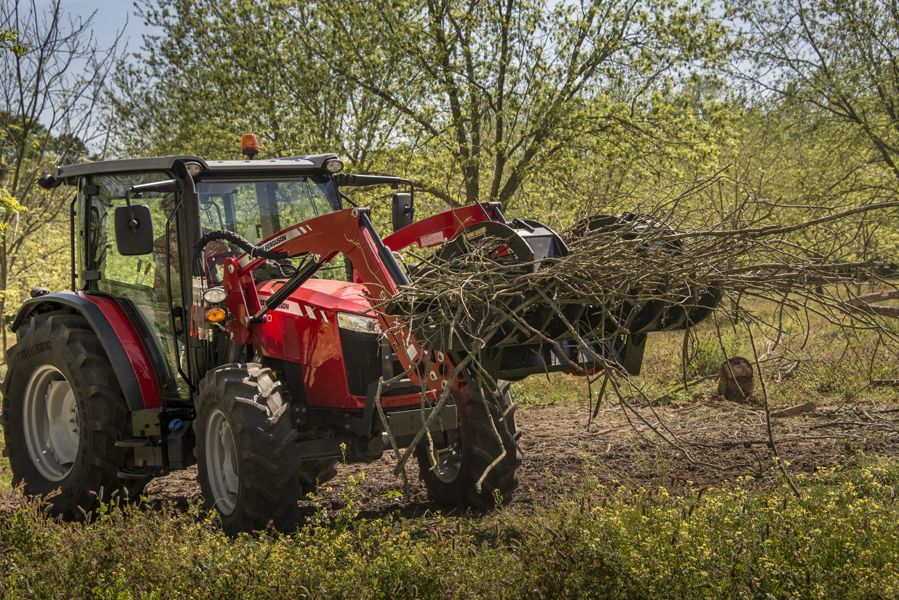

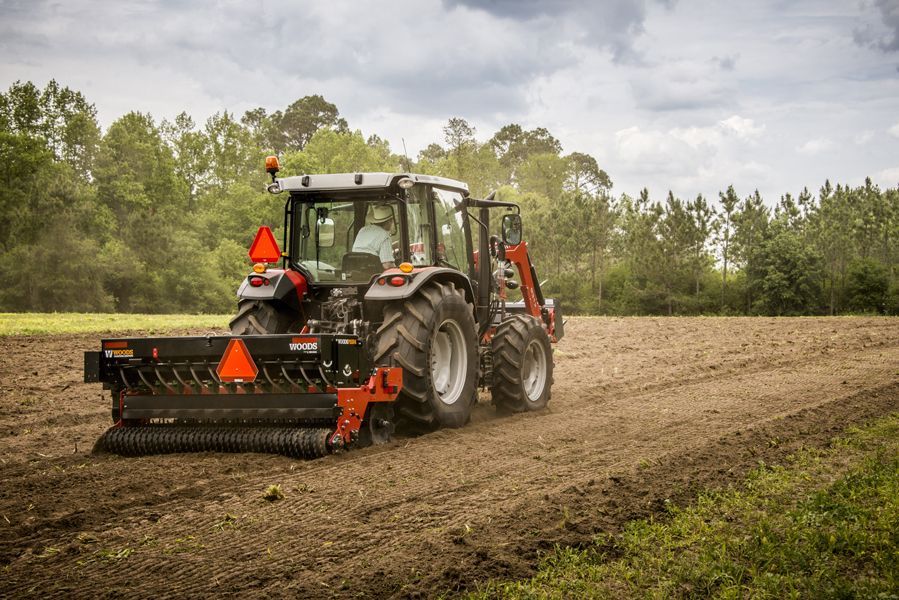

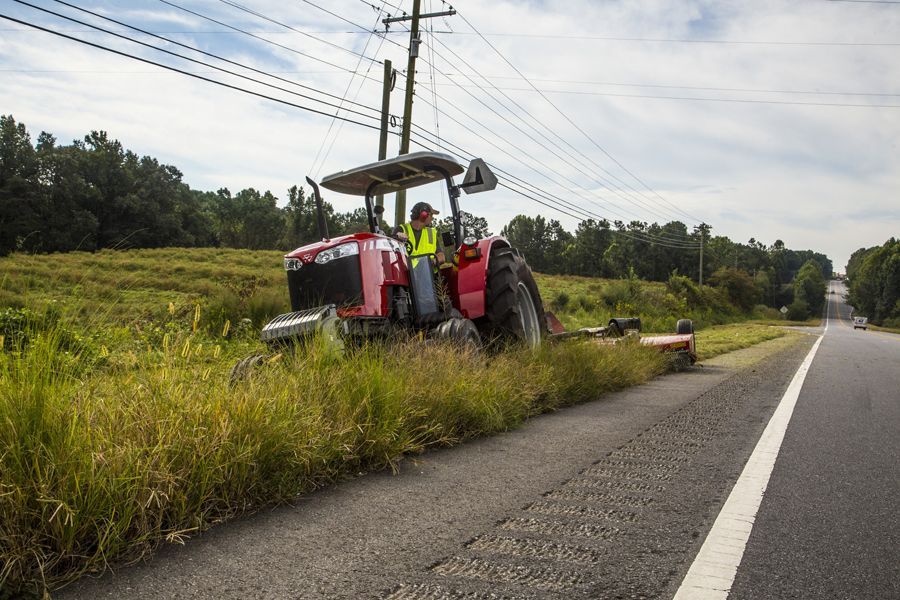

MF 4709
Max engine power @ 2000 rpm: 95 (70.8)
Rated engine power: 90 (67.1)
PTO: 77 (57.4) @ 2000 rpm
Engine: 3-cyl, 3.3L AGCO Power, intercooled turbocharged, high-pressure common-rail direct fuel injection (HPCR)
Emissions control; EPA Tier 4 compliant: SCR technology (post-combustion DEF), diesel oxidation catalyst (DOC)
Transmission type: Std. 12 x 12 fully synchronized – 6 gears x 2 ranges / Opt. 24 x 24 fully synchronized — 2 powershift – 6 gears x 2 ranges
Clutch: Multidisk wet clutch with easy shift knob and electrohydraulic Power Shuttle lever
Rear axle: Flange-type with internal planetary final drives
Differential lock: Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch
Front axle: Heavy-duty 2WD or 4WD front axle
Wheelbase: 88.5 (2,250)
Minimum width: 60.3 (1,533) with std. 420/85R30 rear tires
Base weight without ballast: 2WD ROPS: 7,478 (3,392); 2WD Cab: 8,294 (3,762) 4WD ROPS: 7,734 (3,508); 4WD Cab: 8,644 (3,921)
Fuel capacity: 33 (125), ground fill with metal fuel-tank guard
Hydraulic system: Open center, two-stage pum
Hydraulic flow @ rear remotes: 17.2 (65)
Rear remote valves: 2 valves standard with (DA, KO, FL) 3rd valve optional with (DA, KO, FL, FD)
Loader joystick: Optional integrated factory-installed joystick
3-pt. lift capacity lbs. (kg.) full stroke
@ 24" (610 mm) behind ball ends: 5,291 (2,400)
Rear PTO: Electrohydraulic engagement via switch, 540/540E Std., 540/1000 Opt.
Electrical system: 12-volt DC system, 80-amp alternator, 7-pin trailer socket, 30-amp auxiliary power socket
Platform features: Semi-platform deck, folding ROPS, rubber mat, toolbox, L & R shields, grab handles
Lighting (ROPS): 4 headlights, 2 rear signal/hazard lights, 1 rear ROPS work light, 2 mid-mount adjustable work lights
Std. Steering: Cab = tilt and telescopic steering platform = tilt steering
Std. Seat: MF 4700 Series cab = mechanical swiveling seat with armrests (air-ride swivel seat optional)
MF 4700 Series platform = mechanical spring suspension seat with armrests

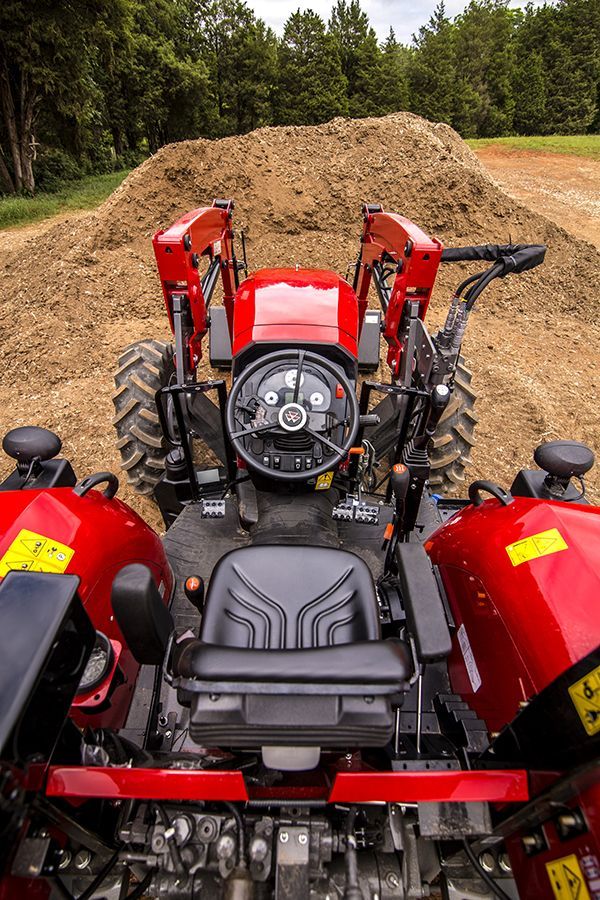

MF 4710
Max engine power @ 2000 rpm: 100 (74.6)
Rated engine power: 100 (74.6)
PTO: 87 (64.9) @ 2000 RPM
Engine: 3-cyl, 3.3L AGCO Power, intercooled turbocharged, high-pressure common-rail direct fuel injection (HPCR)
Emissions control; EPA Tier 4 compliant: SCR technology (post-combustion DEF), diesel oxidation catalyst (DOC)
Transmission type: Std. 12 x 12 fully synchronized – 6 gears x 2 ranges / Opt. 24 x 24 fully synchronized — 2 powershift – 6 gears x 2 ranges
Clutch: Multidisk wet clutch with easy shift knob and electrohydraulic Power Shuttle lever
Rear axle: Flange-type with internal planetary final drives
Differential lock: Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch
Front axle: Heavy-duty 2WD or 4WD front axle
Wheelbase: 88.5 (2,250)
Minimum width: 60.3 (1,533) with std. 420/85R30 rear tires
Base weight without ballast: 2WD ROPS: 7,478 (3,392); 2WD Cab: 8,294 (3,762) 4WD ROPS: 7,734 (3,508); 4WD Cab: 8,644 (3,921)
Fuel capacity: 33 (125), ground fill with metal fuel-tank guard
Hydraulic system: Open center, two-stage pum
Hydraulic flow @ rear remotes: 17.2 (65)
Rear remote valves: 2 valves standard with (DA, KO, FL) 3rd valve optional with (DA, KO, FL, FD)
Loader joystick: Optional integrated factory-installed joystick
3-pt. lift capacity lbs. (kg.) full stroke
@ 24" (610 mm) behind ball ends: 5,291 (2,400)
Rear PTO: Electrohydraulic engagement via switch, 540/540E Std., 540/1000 Opt.
Electrical system: 12-volt DC system, 80-amp alternator, 7-pin trailer socket, 30-amp auxiliary power socket
Platform features: Semi-platform deck, folding ROPS, rubber mat, toolbox, L & R shields, grab handles
Lighting (ROPS): 4 headlights, 2 rear signal/hazard lights, 1 rear ROPS work light, 2 mid-mount adjustable work lights
Std. Steering: Cab = tilt and telescopic steering platform = tilt steering
Std. Seat: MF 4700 Series cab = mechanical swiveling seat with armrests (air-ride swivel seat optional)
MF 4700 Series platform = mechanical spring suspension seat with armrests
Caution! Attachments and links (urls) can contain deceptive and/or malicious content.
And they have gained a reputation for tackling jobs that would overwhelm lesser-built compacts. They are stout — built with a rugged cast rear end, solid cast front axle and a robust rear 3-point hitch. The extra heft puts more power to ground, provides greater stability and supplies the muscle to knock out heavy-duty jobs that are typically handled by larger utility tractors.

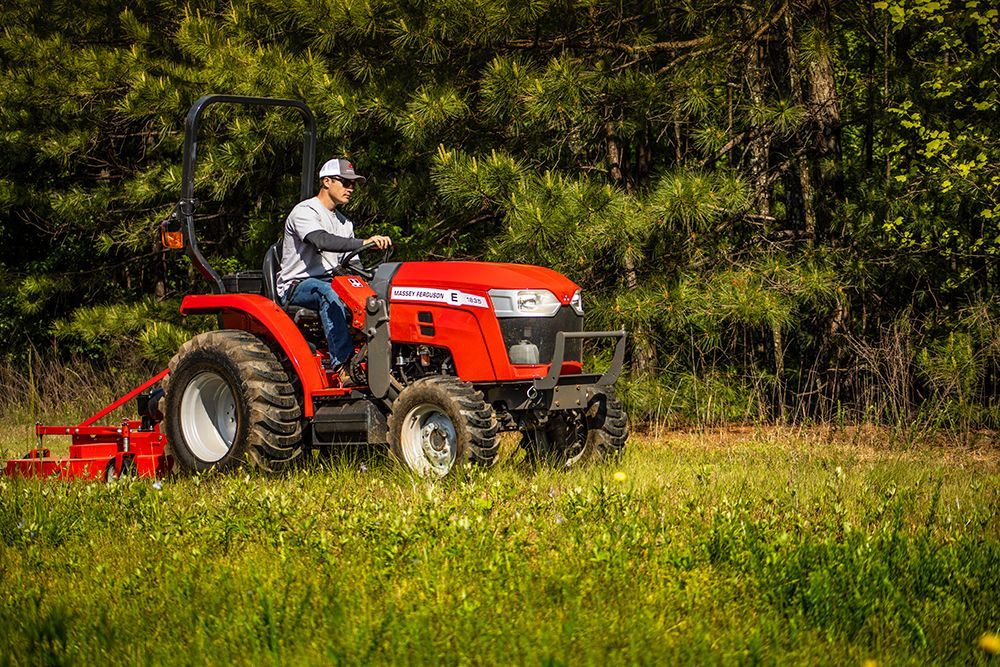

Now there’s an even more powerful reason to own an MF E Series tractor. Tilt open the hood and you’ll find a dependable, fuel-efficient Iseki engine. Iseki is the same engine found in our premium compacts — and found on a broad range of ag and construction equipment working in some of the harshest, most demanding conditions on earth.
1835 E
Rated Engine Power @ 2600 rpm HP (kW): 34.5 (25.7)
PTO Power @ 540 rpm HP (kW): Mech: 29.2 (21.8) / HST: 27.6 (20.6)
Engine: Iseki, 1.83 L, 3-cyl diesel
Aspiration:Turbocharged
Emissions: Exhaust gas recirculation (EGR), diesel oxidation catalyst (DOC), diesel particulate filter (DPF)
Mechanical Transmission: 8x8 Synchro Shuttle, mechanical shuttle lever, left side of steering column
Hydrostatic Transmission: 3-range HST, mechanically controlled, foot pedal on RH side
Hydraulic System: Open center, two gear-type pumps for steering and 3-point/remotes
Steering Flow gpm (Lpm): 3.8 (14.3)
Implement Flow gpm (Lpm): 7.6 (28.9)
3-Point Hitch: Cat. I
Lift Capacity – Ball Ends lbs. (kg.): 2,205 (1,000)
PTO Type: Mech: independent / HST: transmission
Overall Length in. (mm): 116.5 (2,960)
Minimum Width in. (mm): 52.4 (1,330)
Overall Height in. (mm): 97.6 (2,480)
Ground Clearance in. (mm): 11 (280)
Base Weight lbs. (kg.): 2,877 (1,305)
Fuel Tank gal. (L): 10 (38)
Caution! Attachments and links (urls) can contain deceptive and/or malicious content.
For commercial operators who won’t accept downtime. Snow contractors who spend
Long hours in the harshest conditions. Growers and livestock operations who rely on their equipment day in and out. And property owners who are short on time but have an endless to-do list — for all of you who demand more from your tractor — there’s the Massey Ferguson® M Series.
With MF M Series compact tractors, you have a choice of an open station or cab configuration. The open station models are designed with a wide, flat, unobstructed platform, providing for easier entry and exit — from either side. A thick heavy floor mat provides more comfort and suppresses noise and vibration. And there’s plenty of leg- and elbowroom. All controls are close at hand. And a vinyl-clad seat adds even greater comfort and support. The ROPS easily folds down so the tractor fits beneath a standard 7-foot garage door.
That’s not the case at Massey Ferguson. Here, the cab is an integral part of the overall tractor design and build process. As such, the standard cab delivers an operator environment that’s anything but “standard.” Enjoy exceptional visibility — to the front and sides, to the highest reach of the loader and to the rear when hooking up implements. You won’t strain your neck trying to improve your view. Of course, you’ll also enjoy a quiet, climate-controlled operator environment — a comfortable haven for those long, hot summer days or frigid winter nights. It’s also ROPs certified for safety. There’s even a handy holder in the corner post for your smart phone. See the long list of other standard features below.
Step up to the optional deluxe cab. You’ll work in superior comfort thanks to an adjustable, air-suspension seat — it cradles your spine and removes the stress and strain of a long day in the field or on the job site. The deluxe upgrade also includes a premium radio/CD with Bluetooth, bright LED work lights and a rear defroster — a welcome feature if you live in snow country.
2860 M
Rated Engine Power @ 2600 RPM HP (kW): 60.3 (45.0)
PTO Power @ 540 rpm HP (kW): Mech: 47.0 (35.0) / HST: 44.6 (33.3)
Engine: 1.83 L, 3-cyl diesel, 2.43 L, 4-cyl diesel
Air and Fuel Systems: Turbo-charged and liquid-cooled, common rail direct injection, electronic engine management
Emission Control: Exhaust gas recirculation (EGR), diesel oxidation catalyst (DOC), diesel particulate filter (DPF)
Mechanical Transmission: 12x12 Power Shuttle, electronic shuttle lever, left side of steering column
Hydrostatic Transmission: Servo-HST, electronically controlled, 3-range hydrostatic transmission
Hydraulic System: Open center, two gear-type pumps for steering and 3-point/remotes
Steering Flow gpm (Lpm): 7.1 (26.7)
Implement Flow gpm (Lpm): Mech: 12.7 (48.0) / HST: 12.6 (47.8)
3-Point Rear Hitch: Cat. I, Cat. I & II
Lift Capacity lbs. – Ball Ends: lbs. (kg.): Mech: 3,748 (1,700) / HST: 3,483 (1,580)
Lift Capacity - 24 in. Behind Ball Ends lbs. (kg.): Mech: 3,307 (1,500) / HST: 3,086 (1,400)
PTO Type: Independent with SoftStart electronic modulation
Overall Length in. (mm): 134.6 (3,420)
Minimum Width in. (mm): 71.3 (1,810)
Overall Height in. (mm): ROPS: 103.1 (2,620) / Cab: 93.3 (2,370)
Ground Clearance in. (mm): Mech: 11.6 (295) / HST: 14.0 (355)
Base Weight lbs. (kg.): ROPS: 4,288 (1,945) / Cab: 4,674 (2,120)
Fuel Tank gal. (L): 14.0 (53)
Caution! Attachments and links (urls) can contain deceptive and/or malicious content.
175 years ago, we pioneered the equipment that would ultimately become the famed Massey Ferguson® tractor. And vnow, all over the world, there
are more Massey Ferguson tractors on the job than any other brand.

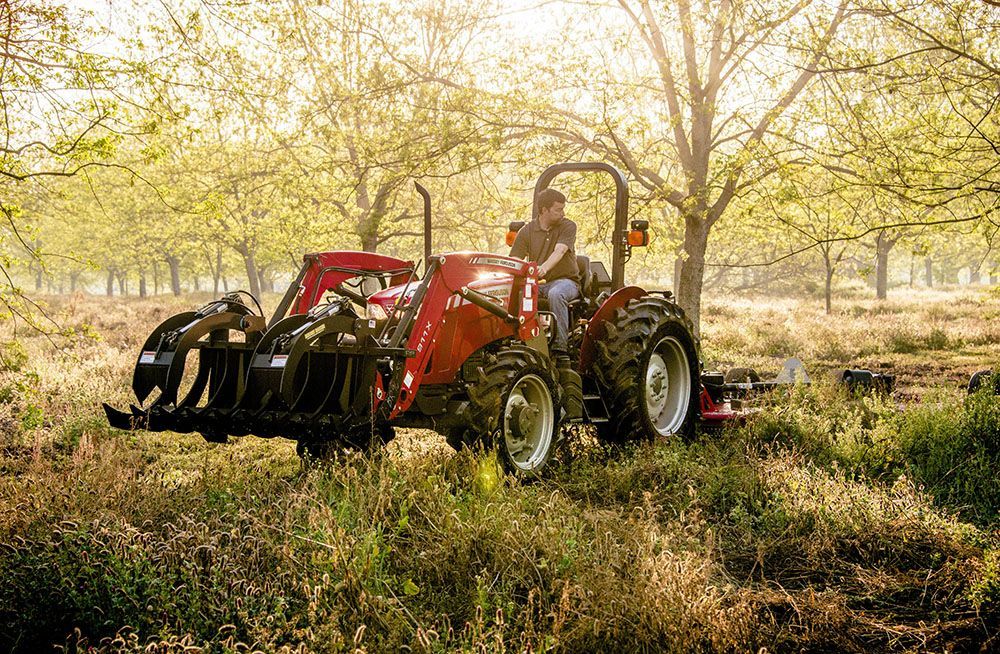

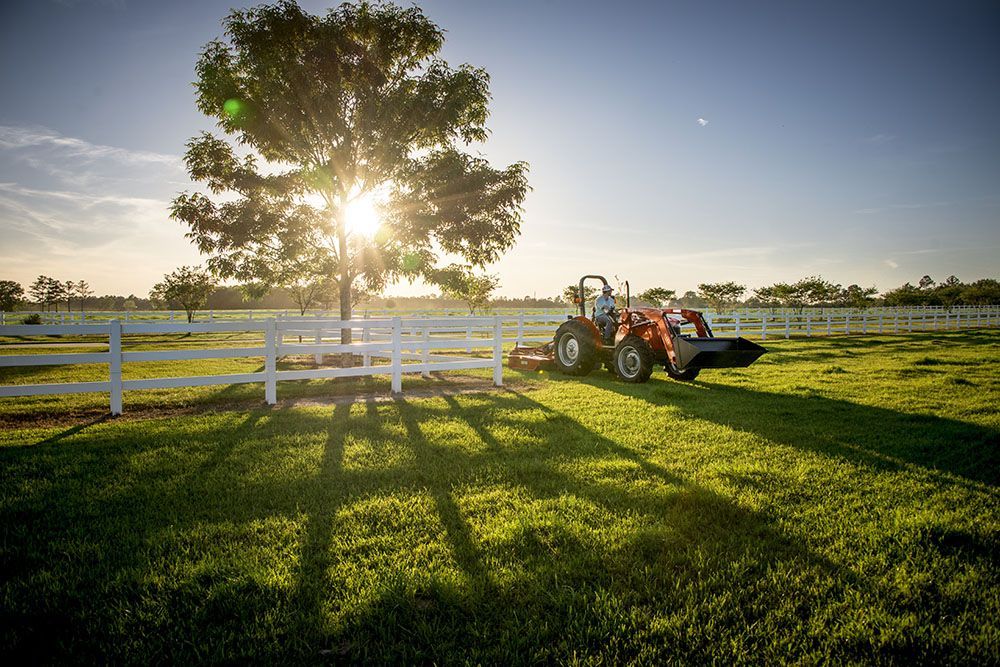

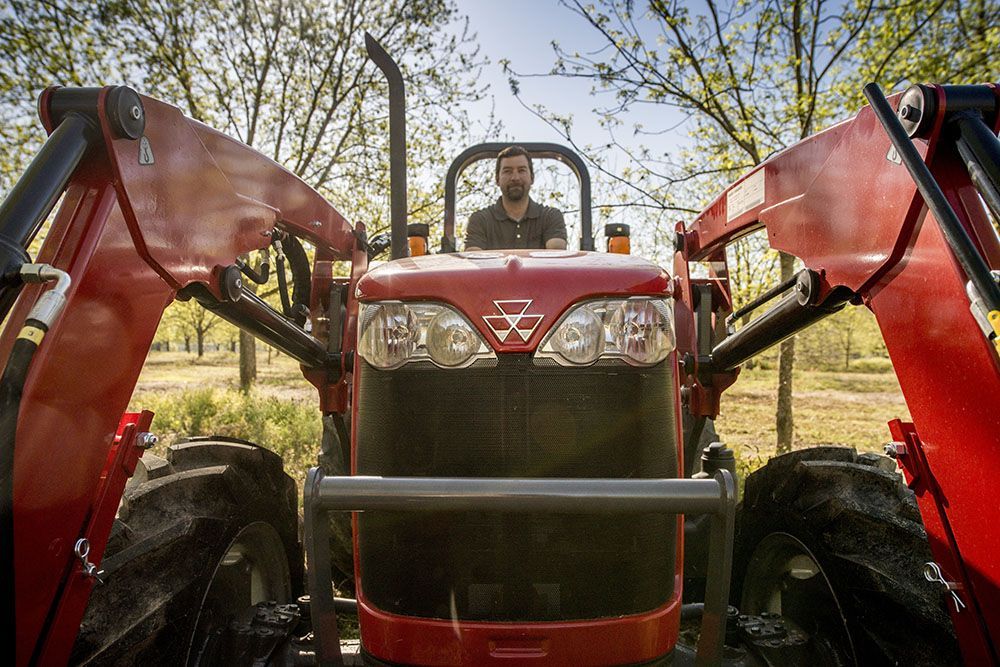

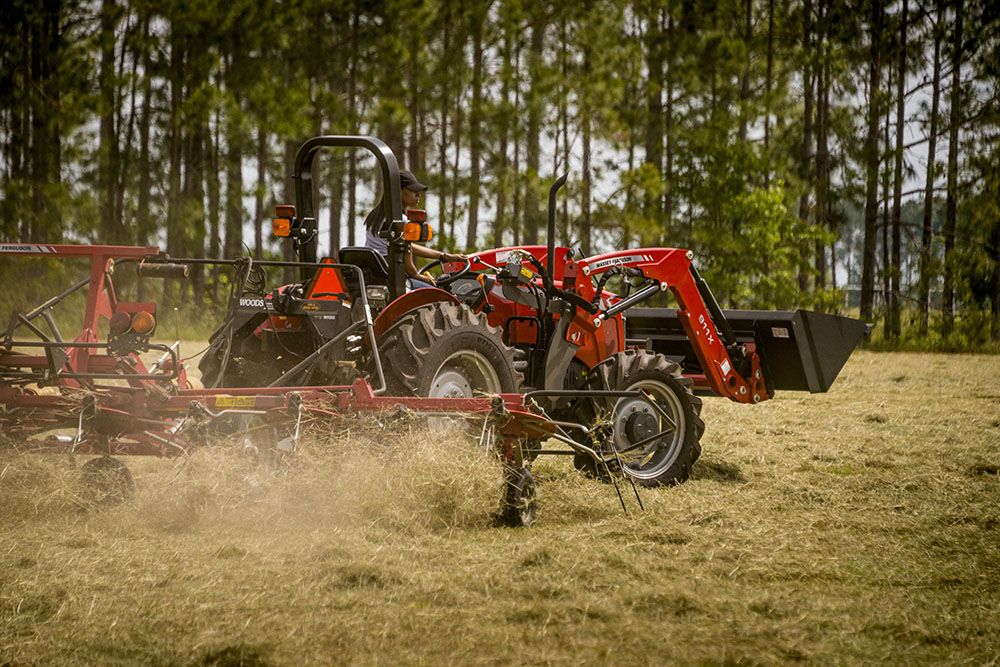

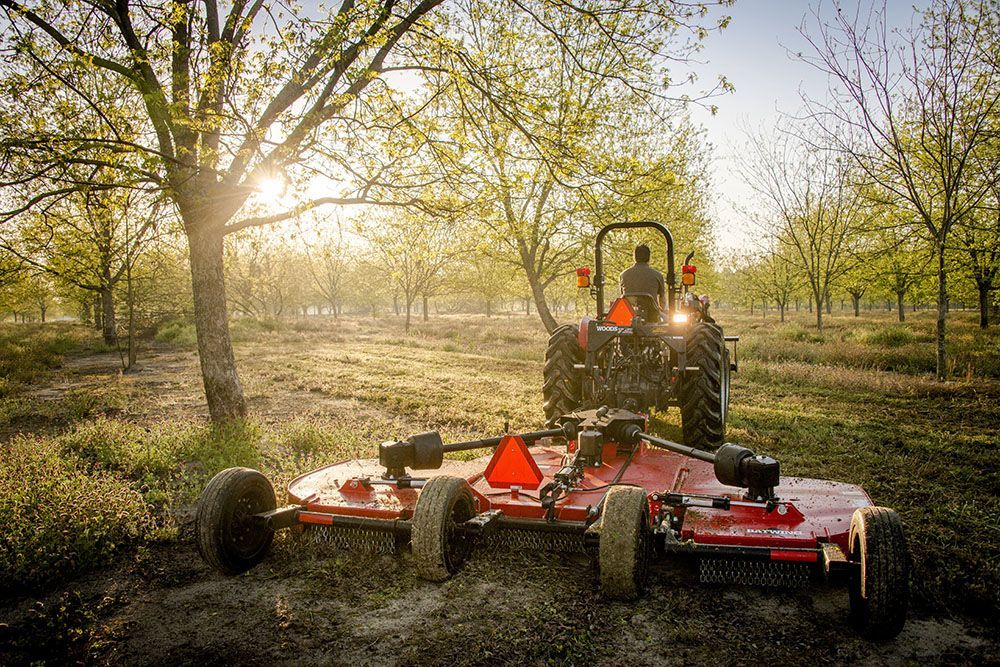

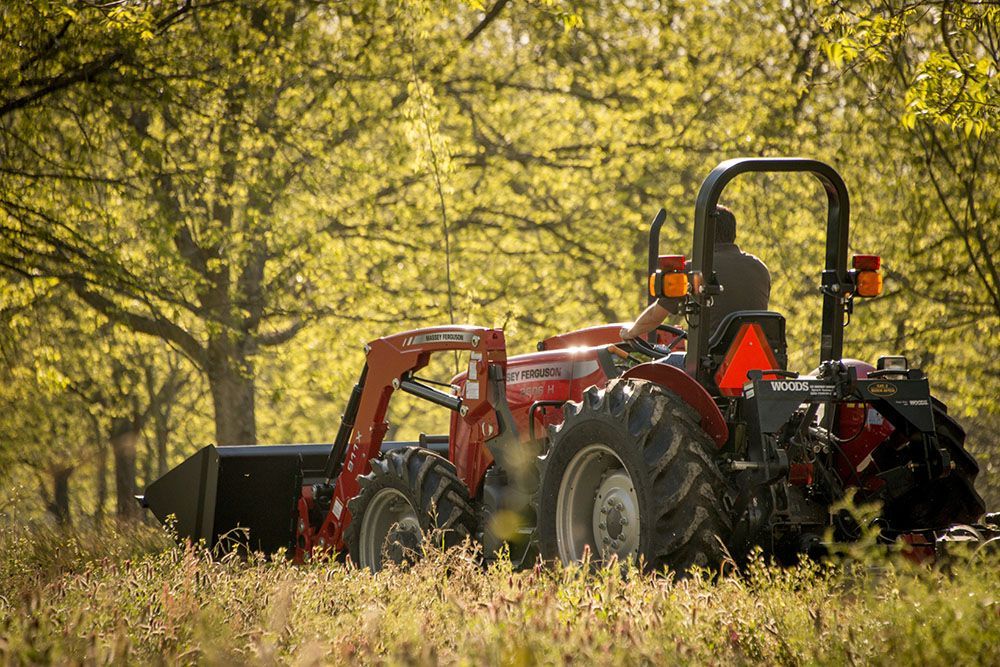

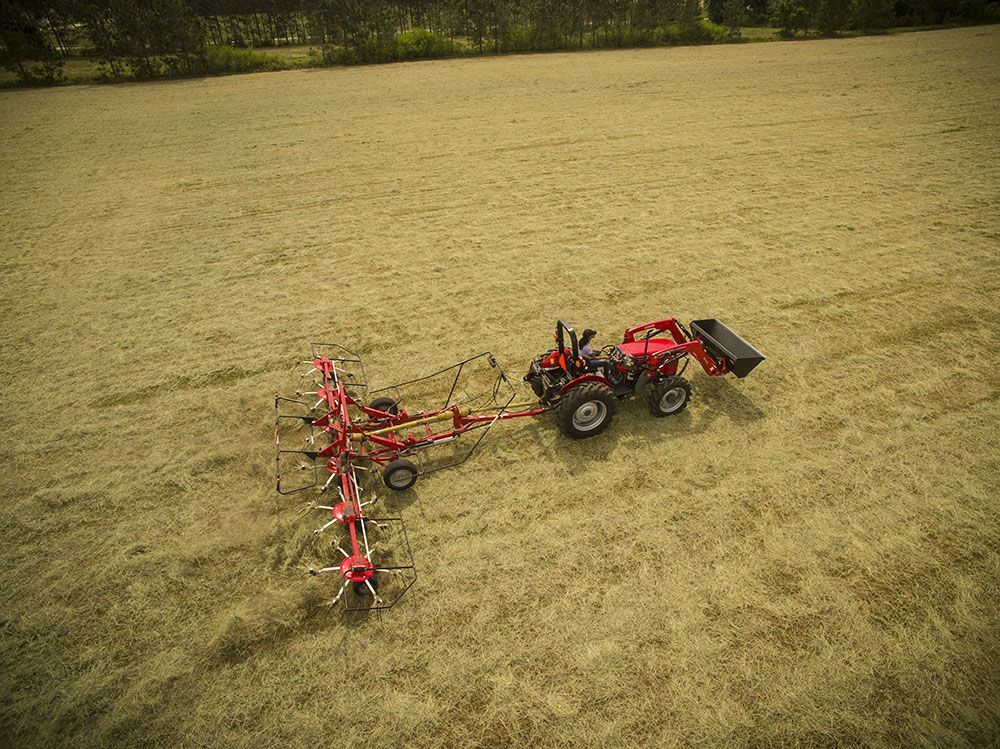

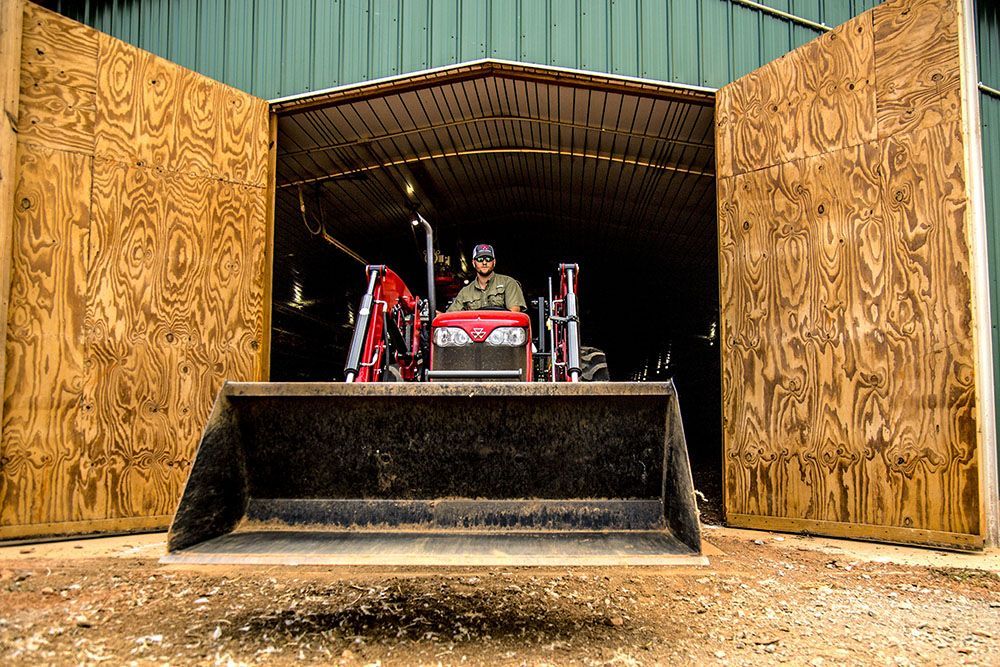

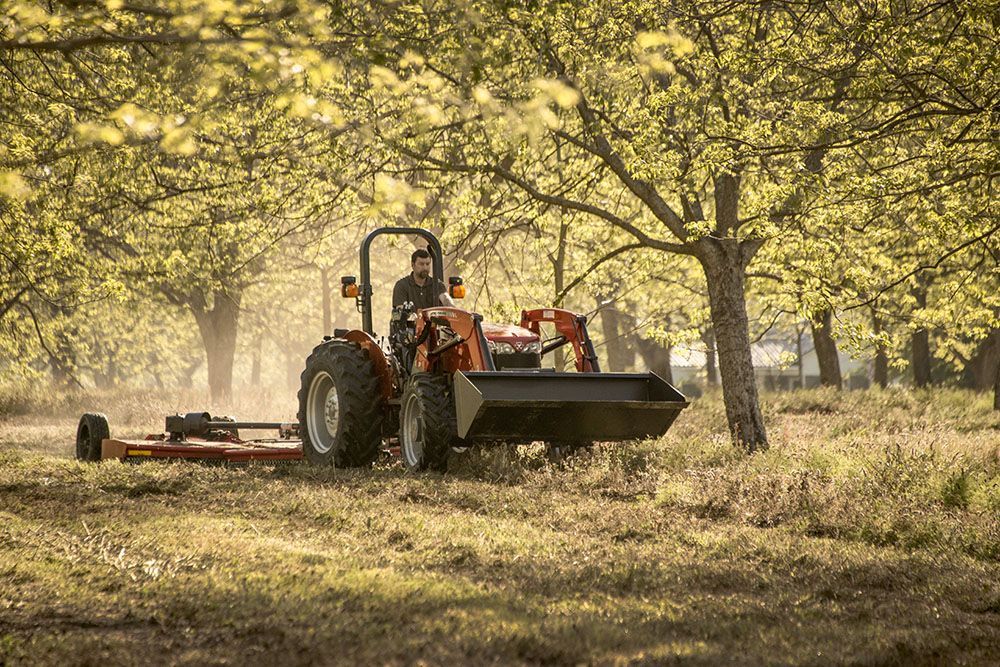

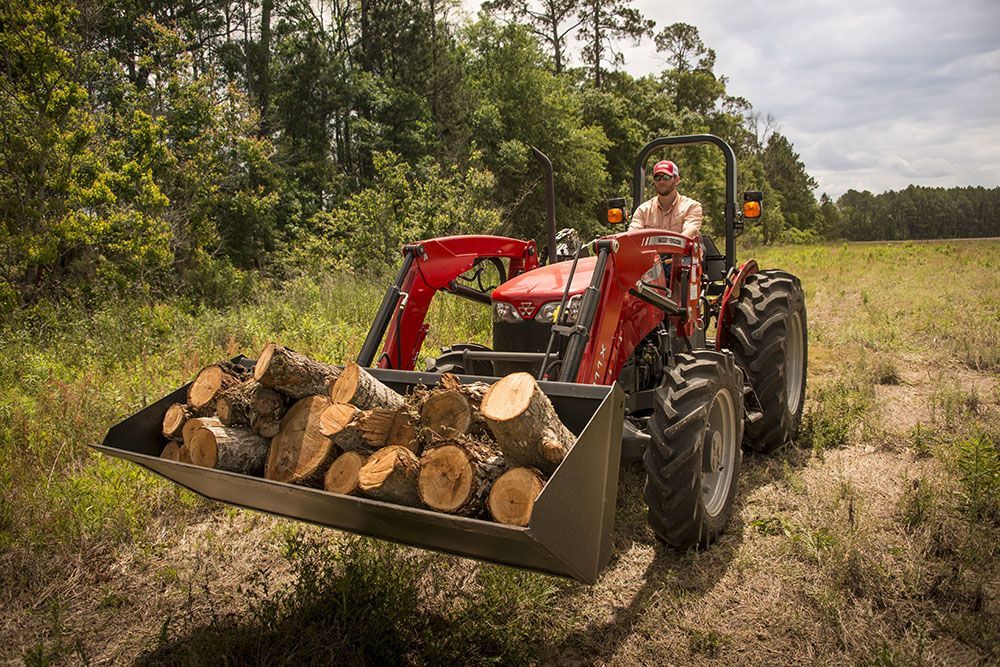

The Massey Ferguson 2600 H Series is a rugged line of straightforward and dependable utility tractors that offer the heritage and affordability of classic Massey Ferguson models. These tractors feature everything you expect in a Massey Ferguson, starting with a simple, open-platform design. A steel hood, fenders and platform offer rugged durability while the high-capacity hydraulics enable loader and implement work.
VERSATILE — Whether you farm, landscape or contract, the MF 2600 H Series will help you get work done. A Transmission — Choose between an 8F x 2R with live PTO or an 8F x 8R shuttle with independent PTO.
STABLE — MF 2600 H Series tractors combine innovation with confidence-building stability. It all adds up to a tough tractor that’s ready to go when you are.
COMFORTABLE — Even if you don’t need all the bells and whistles, you still want a comfortable ride. The MF 2600 H Series delivers.
EASY TO USE — The MF 2600 H Series makes everything easier for the operator.
No DPF — No diesel particulate filter (DPF). No regenerations. No downtime.
No DEF — Does not require the use of diesel exhaust fluid (DEF).
Serviceability — A simple release hood latch makes preventative maintenance, like checking filters and fluid levels, easy.
Buying, owning and maintaining equipment can be complex. That’s why ensuring you have support and peace of mind is always an important consideration. With Massey Ferguson, you can count on personalized, responsive support from our network of dealers. Plus, there’s no cut-off time for parts and service, meaning we’re available to you throughout the lifetime of your machine. There’s a pride and responsibility built into every piece of equipment we sell, and we make it our mission to keep your machine running smoothly, every single time you turn the key.
Ask your dealer about AGCO Protection, an extended warranty program that prolongs your coverage and safeguards against the cost of sudden breakdowns.
AGCO replacement parts are made to the same high standards as those used on the assembly line, so your AGCO® equipment will stay running like new. Talk to your dealer, or shop at parts.agcocorp.com to find the AGCO Genuine Parts you need.
2607 H
Rated Engine Power HP (kW): 74 (55.1)
Rated PTO power: 64 (47)
Engine: Simpson 2.6 L, 3-cylinder, Tier 4 final-compliant
Air and fuel systems: Intercooler turbo-charged with electronically controlled high-pressure common rail fuel injection
Emission control: External cooled exhaust gas recirculation (EGR) with diesel oxidation catalyst (DOC)
Mechanical transmission: 8F x 8R Synchro Shuttle
Main clutch: Split torque clutch
Rear axle: Outboard planetary
Brakes: Oil-immersed wet disc
Differential lock: Mechanical engagement via right-side heel pedal
Front axle: 2WD straight adjustable / 4WD planetary reduction
4WD engagement: Mechanical via push-pull lever in platform to left of seat
Hydraulics
Hydraulic system: Massey Ferguson hydraulics, Mark 1A scotch yoke piston pump
Hydraulic flow @ remote GPM (LPM): 10.6 (40.1)
Total hydraulic flow GPM (LPM): 15.7 (59.5)
Remote valves: Two standard
3-point lift capacity @ pins lbs. (kg): 4,519 (2,050)
3-point lift capacity @ 24" behind lbs. (kg): 2,755 (1,250)
Rear PTO: 2WD & 4WD — independent
Operator Area
Platform features: Debris/heat shield, rubber floormat
Seat and steering: ReverseRise adjustable seat w/ fixed steering column
Dimensions
Overall length in. (mm) - 2WD — 138 (3,510); 4WD — 139 (3,526)
Wheelbase in. (mm): 2WD — 80.7 (2,070); 4WD — 81.5 (2,050)
Overall width in. (mm): 72.9 (1,851)
Overall height in. (mm): 94.5 (2,400)
ROPS base weight without ballast lbs. (kg): 2WD — 5,269 (2,390)
4WD — 5,864 (2,660)
Fuel capacity gal. (L): 14.5 (55)

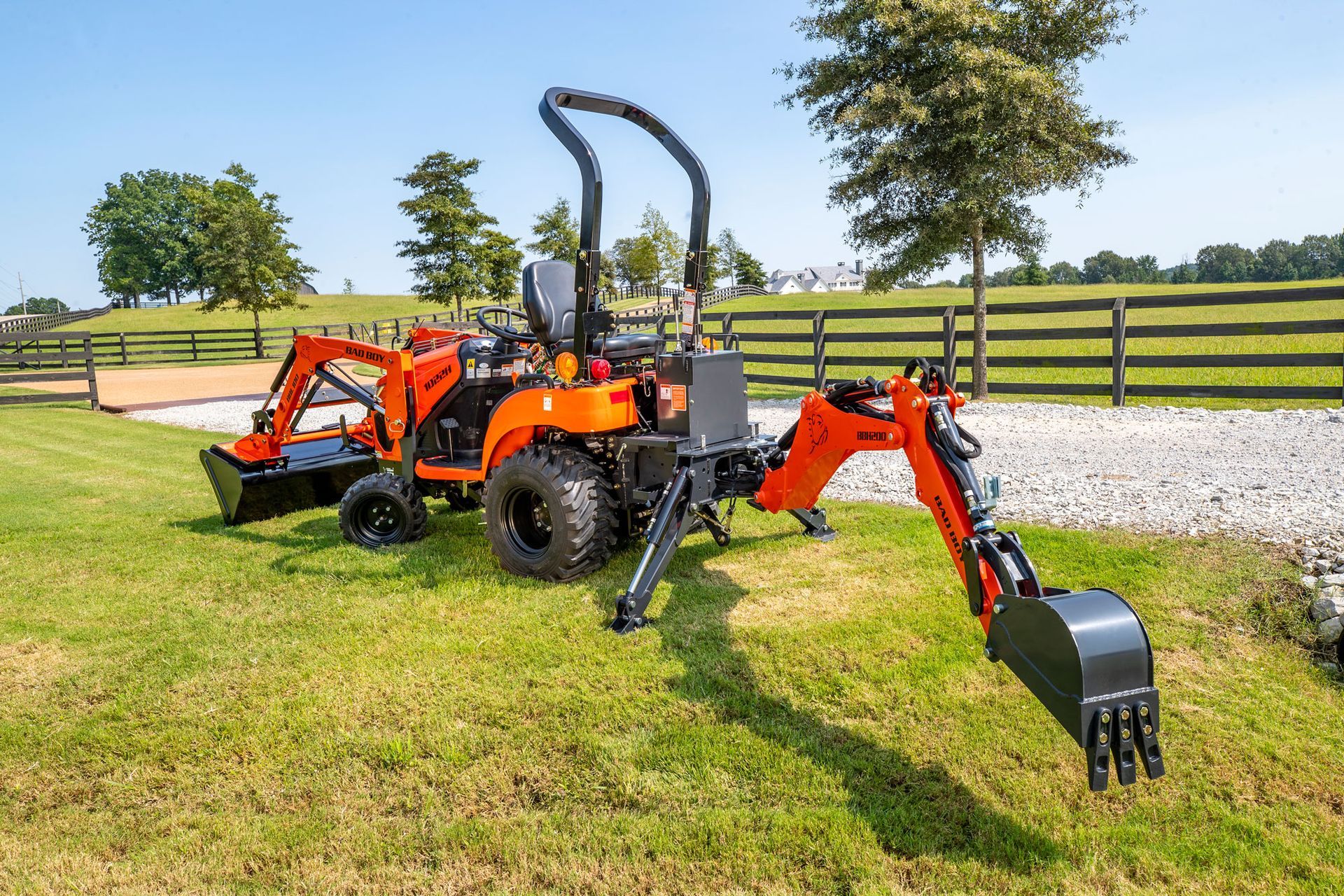

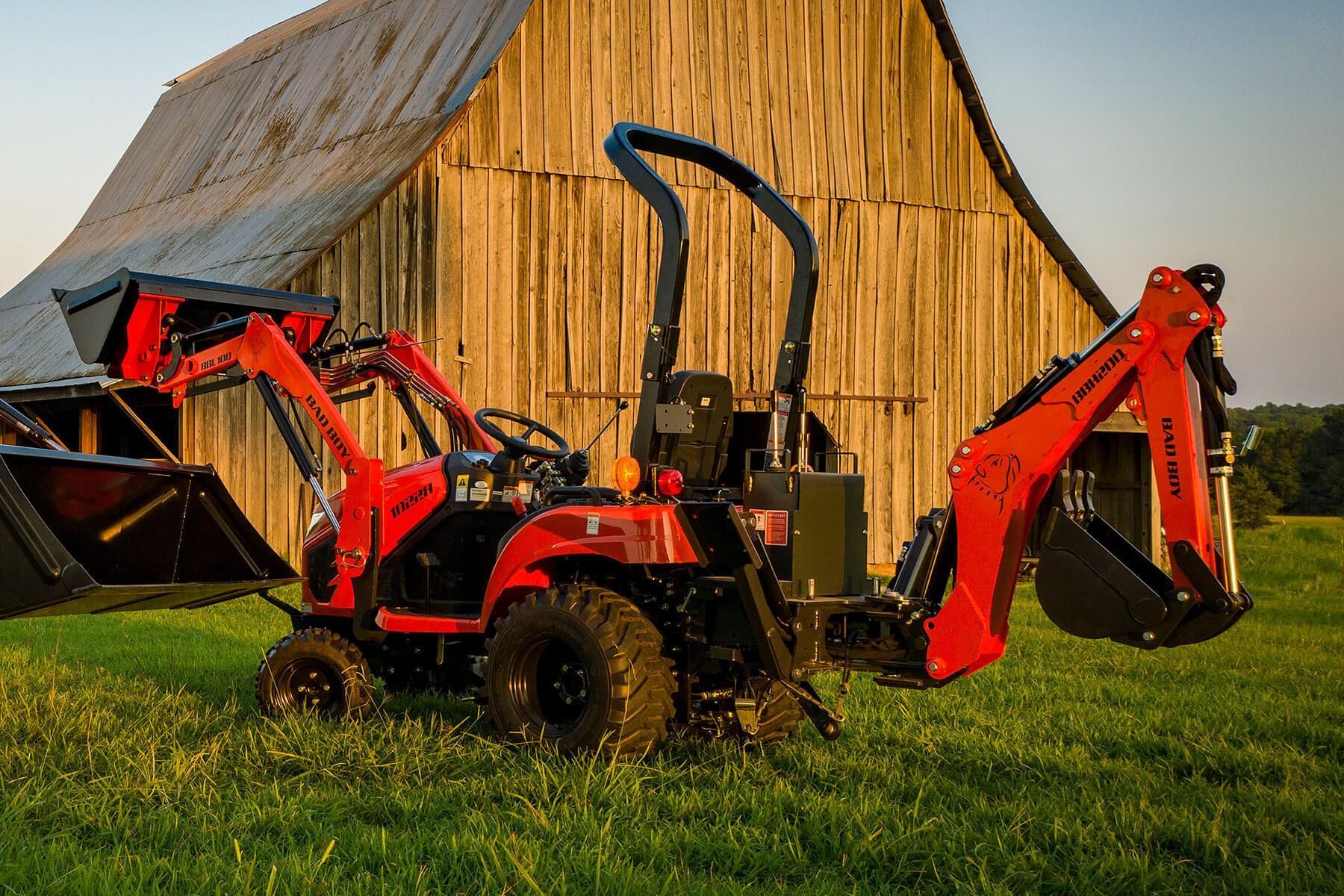

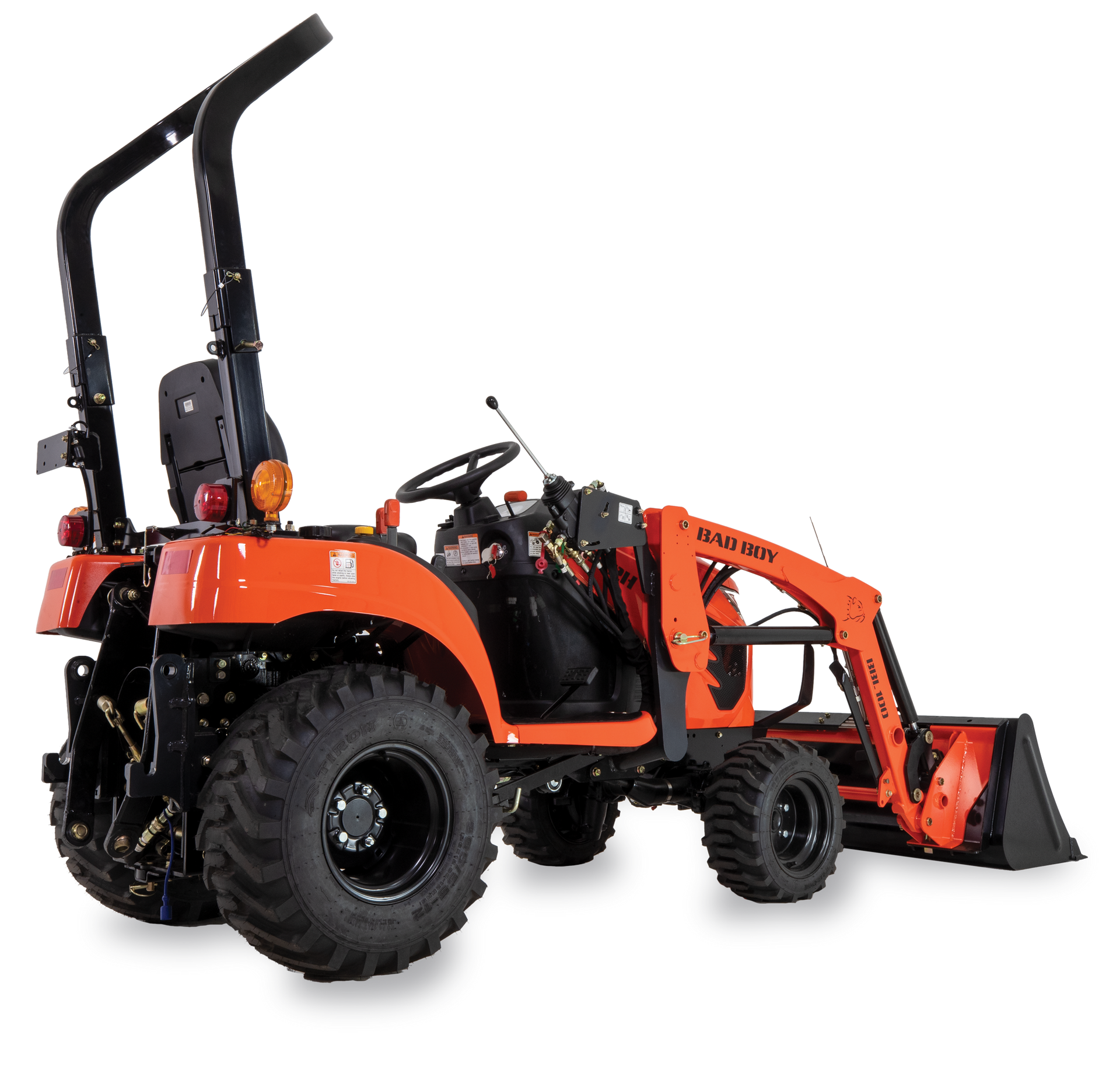

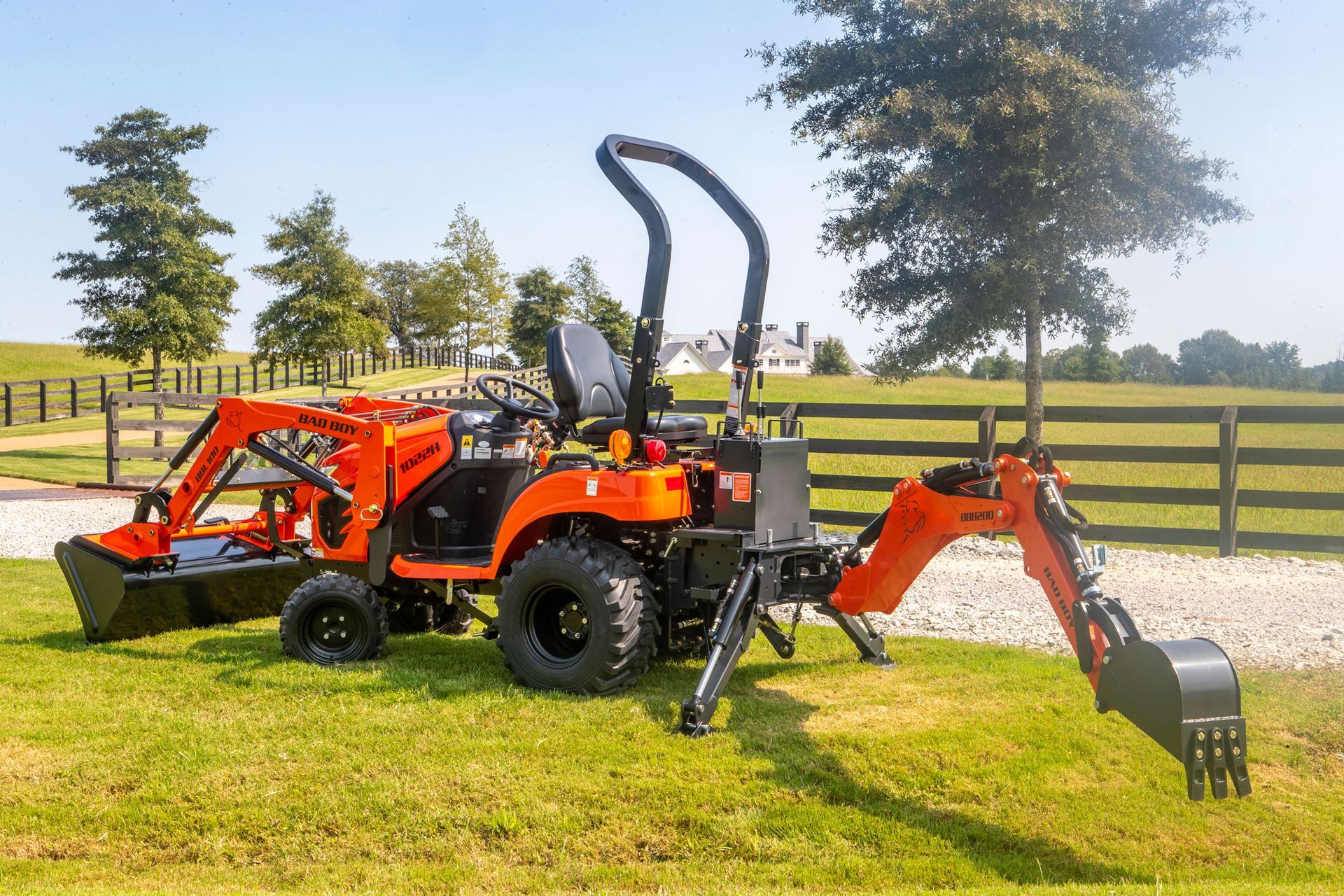

The 1022H Sub-Compact Bad Boy Tractor boasts 22 horsepower and over 600 pounds of lift capacity to allow you to stop breaking your back. Featuring four-wheel drive with high and low range plus a locking differential and cruise control, this tiny powerhouse is built to handle almost anything you can throw at it. Our automatic hydro-static transmission allows even the novice tractor user to feel comfortable behind the controls and get right to work. With a standard skid steer style front end and Category 1 three-point hitch, it's quick and easy to attach a variety of implements including our front loader and backhoe.
1022 POWER TRAIN
Engine: 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM: 21.5
Displacement (In.): 60.6"
Number of Cylinders: 3
Fuel Tank (Gal.): 6.6 gal.
1022 DRIVE TRAIN
Transmission: HST
Number of Speeds: 2 Range
Clutch: No
Brakes: Wet, Multi-disc
1022 PTO
Type: Independent
Rear (Mid) PTO Speed: 540
PTO HP: 15.4
1022 HYDRAULICS
Type: Power Assisted Hydro-static
Total Hydraulic Flow (Power Steering + Implement): 6.3 (2.1+4.2)/23.8 (8+15.8)
3-Point Hitch: CAT 1
Rear Remote Valve: Optional (Up to 1)
3-Point Hitch Lift Capacity @ 24” Behind Lift Point @ Ball Ends (Lbs.): 499 lbs.
1022 ELECTRICAL
Battery: 12V, 500CCA
Alternator: 12V, 40A
1022 DIMENSIONS
Overall Length (In.): 94.2"
Overall Width (In.): 44.5"
Overall Height (In.): 86.6"
Wheelbase (In.): 53.1"
Minimum Ground Clearance (In.): 8.3"
Weight (Lbs.): 1,433 lbs.
1022 WHEELS & TIRES
IND (Front): 18x8.50-10
IND (Rear): 26x12-12
1022 LOADER – MODEL BBL100
Standard Bucket Size (In.): 48"
Maximum Lift Height (In.): 72.7"
Dig Depth (In.): 4.0"
Lift Capacity to Full Height at Pivot Pin (Lbs.): 617 lbs.
Breakout Force (Lbs.): 1,253 lbs.
Shipping Weight (Lbs.): 438 lbs.
1022 BACKHOE – MODEL BBH100
Standard Bucket Size (In.): 12"
Type: Subframe-mounted, Quick Attach
Maximum Dig Depth (In.): 66"
Dig Force Bucket (Lbs.): 1,975 lbs.
Shipping Weight (Lbs.): 747 lbs.

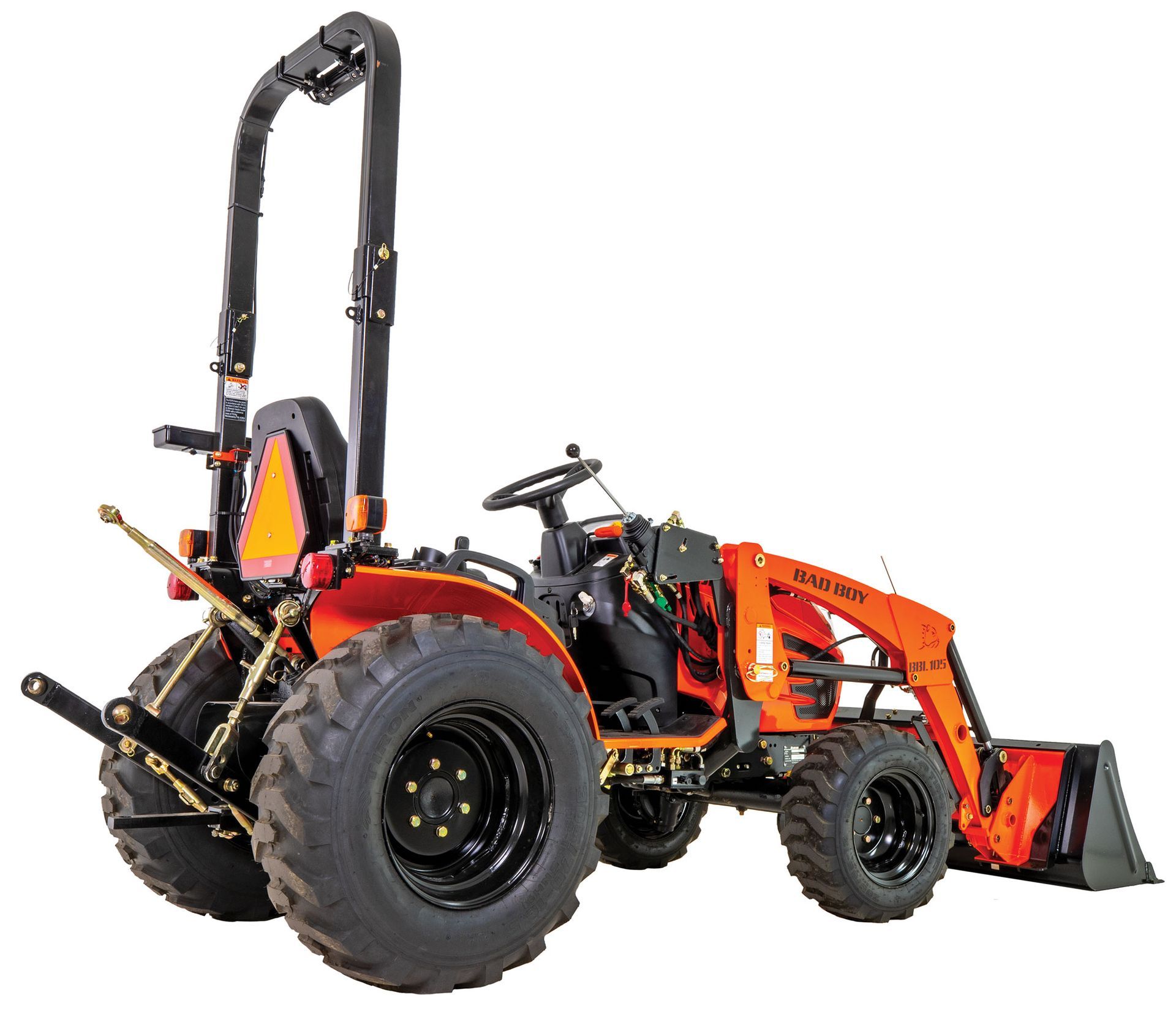

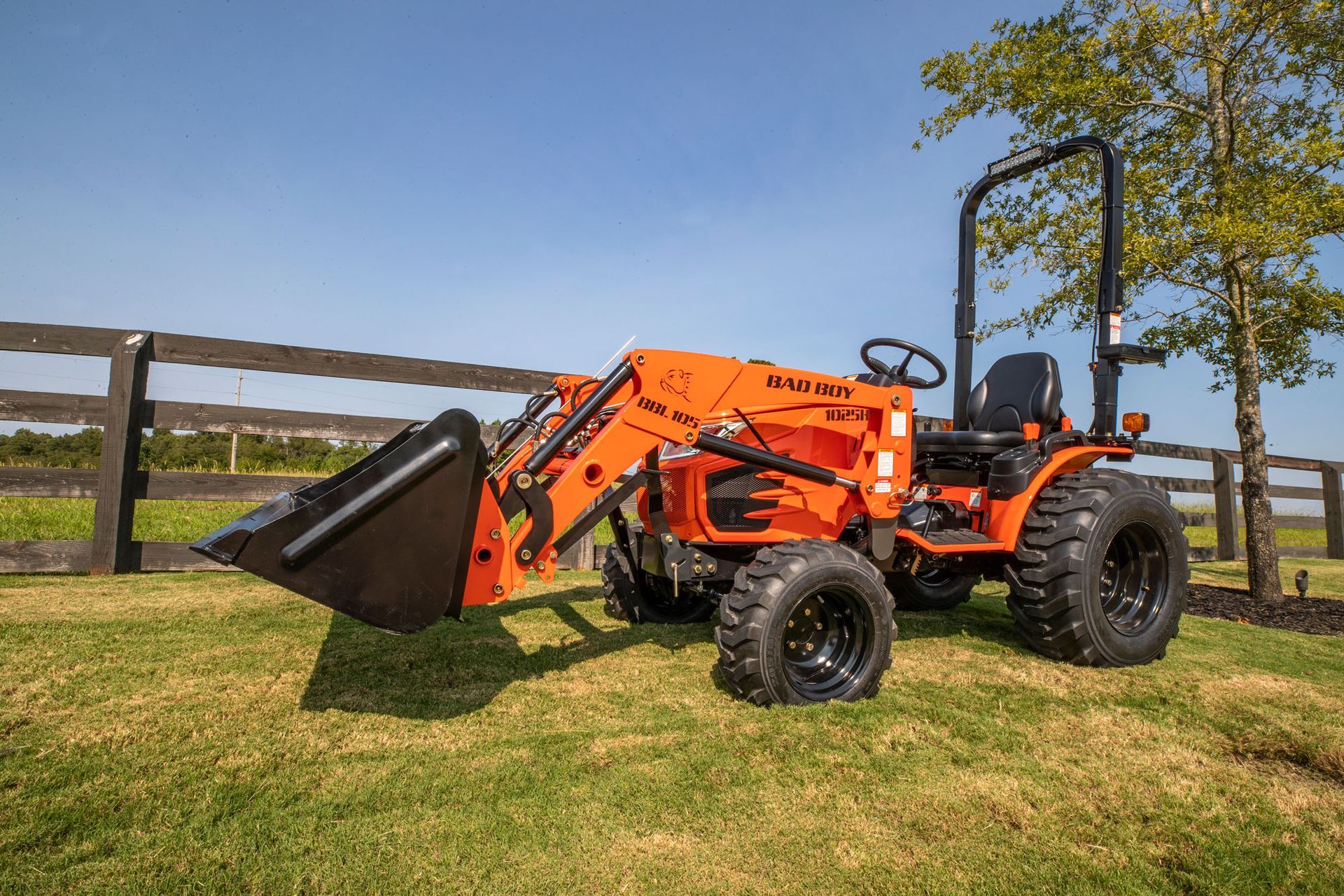

The 1025H Sub-Compact Bad Boy Tractor is small enough to go where bigger tractors can't, and powerful enough to get the job done. At under 4 feet wide, this sub-compact tractor can squeeze into barn stalls and through gates to get where you need to work. Featuring 25 horsepower and over 600 pounds of full lifting capacity, along with our easy-to-drive automatic hydro-static transmission and four-wheel drive you're ready to tackle any job for the small land owner. It's quick and easy to attach a wide variety of implements, like our front loader bucket or backhoe, thanks to the standard skid steer style front end and Category 1 three-point hitch.
1025 POWER TRAIN
Engine: 3 Cylinders, Water-Cooled, Diesel
Engine HP @ RPM (kW): 24.6 (18.4 kW)
Displacement (in.) (kW): 77.3” (1,267 kW)
Number of Cylinders: 3
Fuel Tank (gal)(l): 5.8(22)
1025 DRIVE TRAIN
Transmission: HST
Number of Speeds: 2 Range
Clutch: No
Brakes: Wet, Multi-Disc
1025 PTO
Type: Independent
Rear (Mid) PTO Speed: 540(2,000)
PTO HP (kW): 18.8(14.0 kW)
1025 HYDRAULICS
Type: Power Assisted Hydro-static
Total Hydraulic Flow (Power Steering+Implement): 7.0(2.8+4.2) / 25.7(10.5+15.8)
3-Point Hitch: Cat 1
Rear Remote Valve: Optional (Up to 1)
3-Point Hitch Lift Capacity @ 24” Behind Lift Point: 1,101(499)
1025 ELECTRICAL
Battery: 12V, 500CCA
Alternator: 12V, 40A
1025 DIMENSIONS
Overall Length Inches (mm): 104” (2,633mm)
Overall Width Inches (mm): 45.8” (1,164mm)
Overall Height Inches (mm): 91.3” (2,320mm)
Wheelbase Inches (mm): 57.5” (1,460mm)
Minimum Ground Clearance Inches (mm): 9.5” (240mm)
Turning Radius: 45°
Weight Lbs. (kg): 1,160 Lbs. (730kg)
1025 WHEELS & TIRES
IND (Front): 20x8.00-10
IND (Rear): 27x12.50-15
1025 LOADER – MODEL BBL105
Standard Bucket Size (In): 50”
Maximum Lift Height (In): 71.3”
Dig Depth (In): 4.6”
Lift Capacity to Full Height at Pivot Pin (Lbs.): 993 Lbs.
Breakout Force (Lbs.): 1,235 Lbs.
Shipping Weight (Lbs.): 573 Lbs.
1025 BACKHOE – MODEL BBH105
Standard Bucket Size (In): 12”
Type: Sub-frame Mounted, Quick Attach
Maximum Dig Depth (In): 76”
Dig Force Bucket (Lbs.): 2,020 Lbs.
Shipping Weight (Lbs.): 816 Lbs.

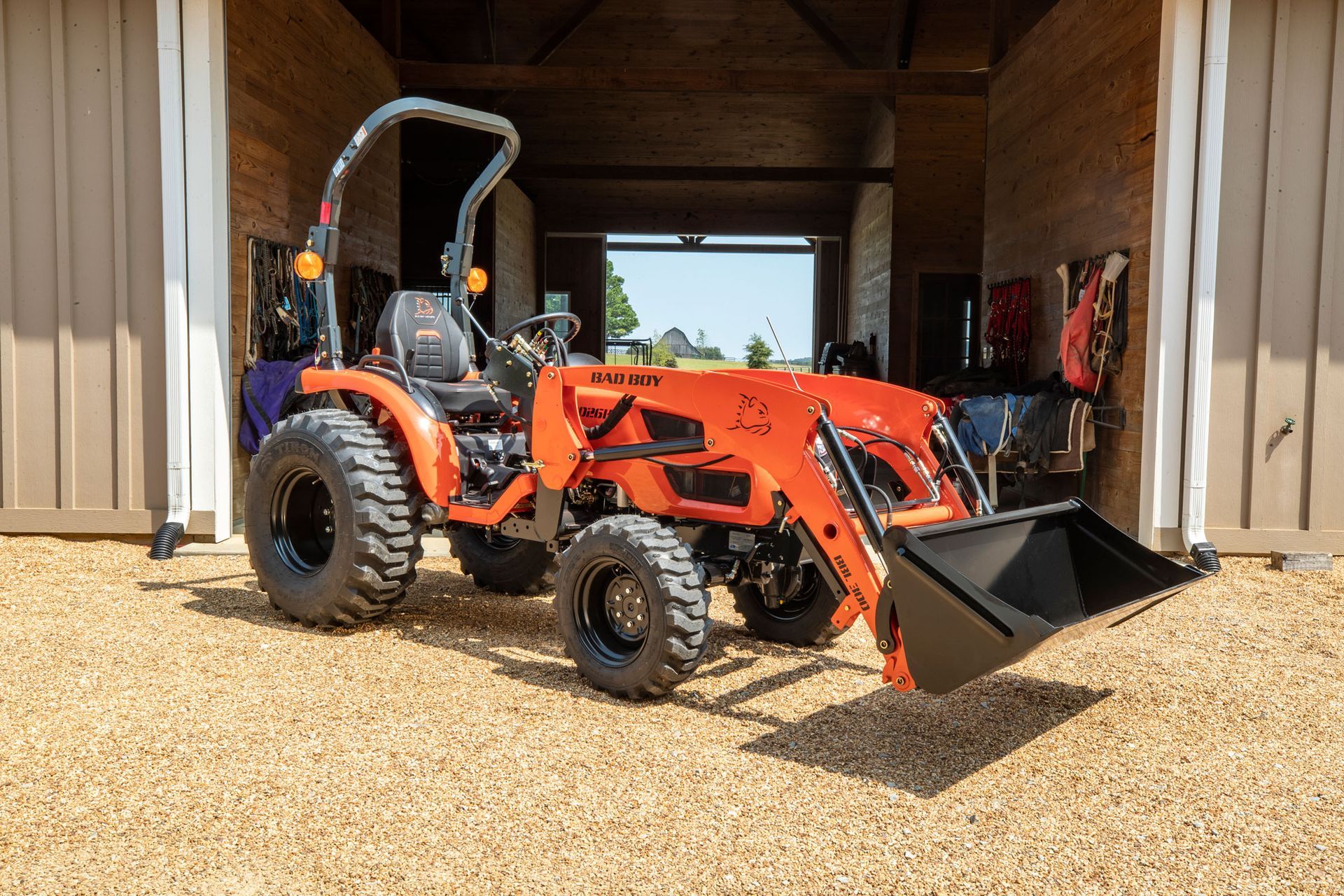

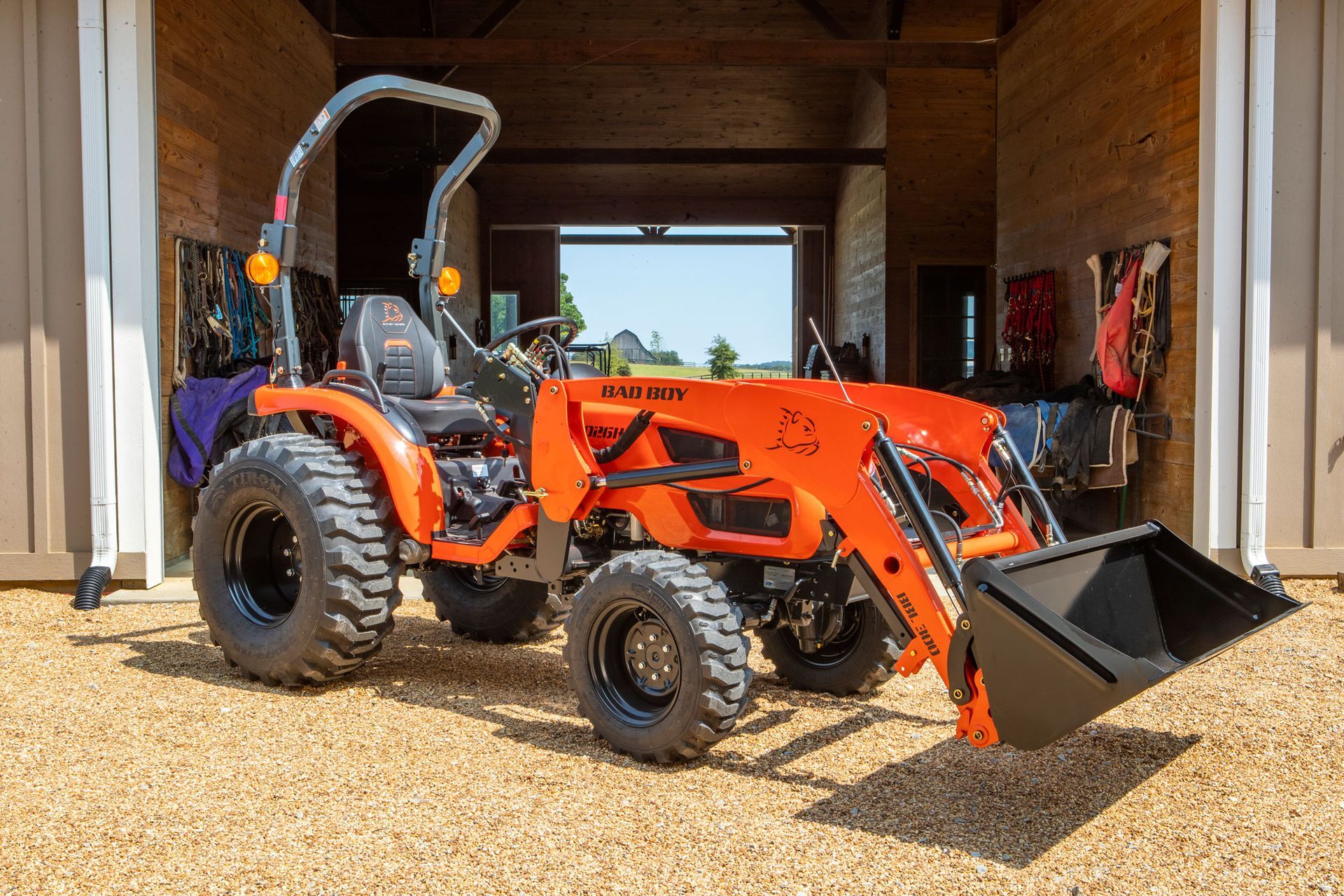

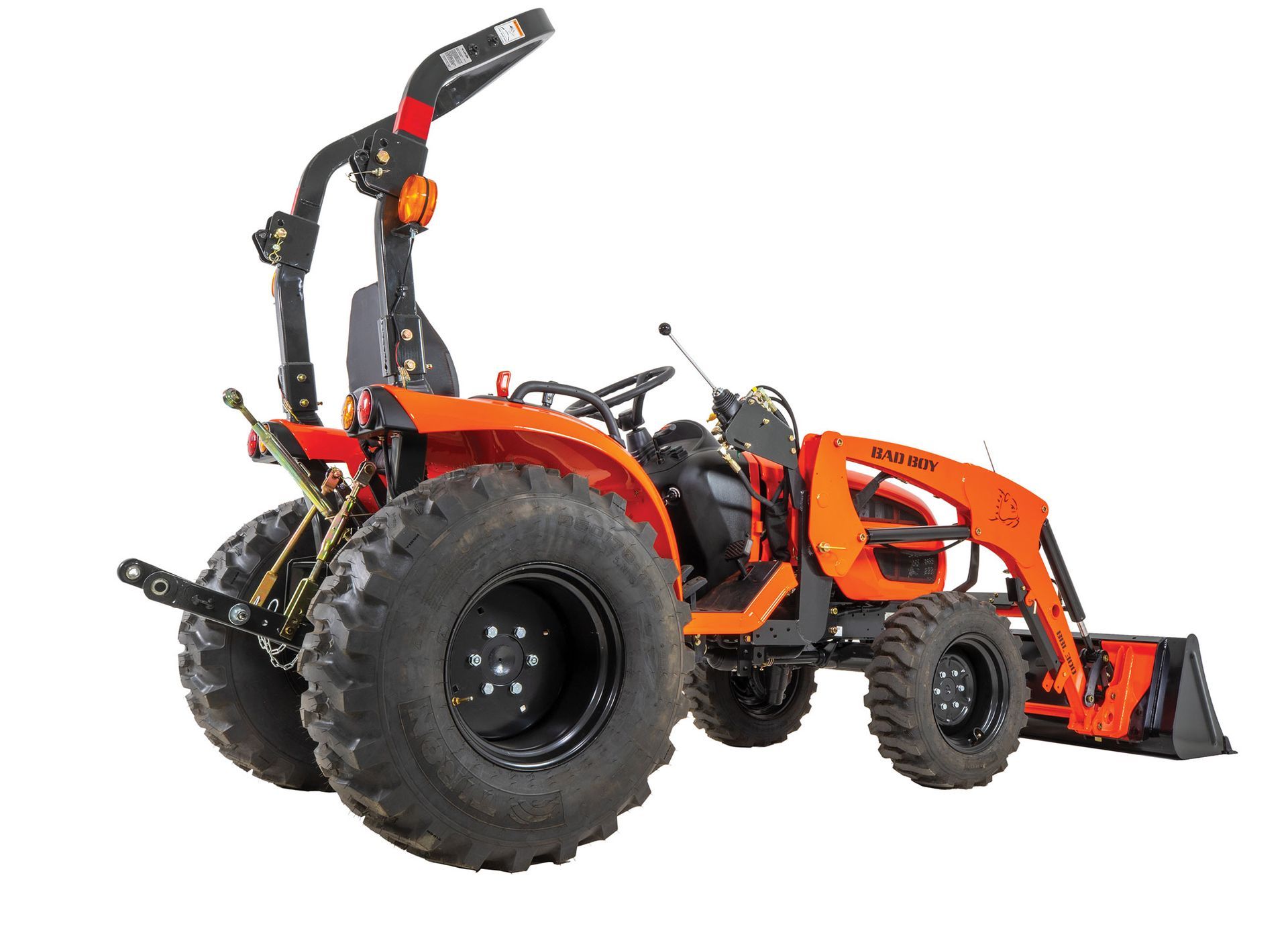

The 3026H carries the best of both Sub-Compact and Compact performance and construction features to work on your farm, business, or property. The longer frame size, larger tires, and higher ground clearance can handle just about any workload you throw at it.
The hydro-static three-range transmission gives you more flexible drive options and the hydraulic system lifts above its weight class against tractors far larger. Features an easy-to-read digital control display and a comfortable seat. Plus, you have all the power from the PTO to the front loader right at your fingertips, making it the value leader and the perfect choice for demanding performance.
TRACTOR MODEL 3026
Type: 3 Cylinder, Water-Cooled, Diesel
Engine: HP @ RPM 24
Displacement (In.): 71.7”
Number Of Cylinders: 3
Fuel Tank (Gal): 6.0 gal.
DRIVE TRAIN
Transmission: HST
Number Of Speeds: 3 Range
Clutch: Dry Single Plate
Brakes: Wet, Multi-Disc
PTO
Type: Live
Rear(Mid) PTO Speed: 540 / 960
PTO HP: 18
HYDRAULICS
Type: Power Assisted Hydrostatic
Total Hydraulic Flow (Power Steering+Implement): 7.4 (3.1+4.3) / 28.1 (11.7+16.4)
3-Point Hitch: Cat I
Rear Remote Valve: Optional (Up To 1)
3-Point Hitch Lift Capacity (Lbs.) @24 Behind Lift Point @ Ball Ends: 650
ELECTRICAL
Battery: 12V, 500CCA
Alternator: 12V, 60A
DIMENSIONS
Overall Length (In.): 110”
Overall Width (In.): 53.8”
Overall Height (In.): 91.4”
Wheelbase (In.): 65.7”
Minimum Ground Clearance (In.): 16.4”
Weight (Lbs.): 2106
WHEELS & TIRES
Ind (Front): 25x8.50-14
Ind (Rear): 14-X17.5
LOADER MODEL BBL300
Standard Bucket Size (In.): 54”
Maximum Lift Height (In.): 86”
Dig Depth (In.): 4.2”
Lift Capacity to Full Height at Pivot Pin (Lbs.): 1533
Breakout Force (Lbs.): 1,960
Shipping Weight (Lbs.): 654
BACKHOE MODEL BBH200
Standard Bucket Size (In.): 12”
Type: Subframe-Mounted, Quick Attach
Maximum Dig Depth (In.): 76”
Dig Force Bucket (Lbs.): 2050
Shipping Weight (Lbs.): 827

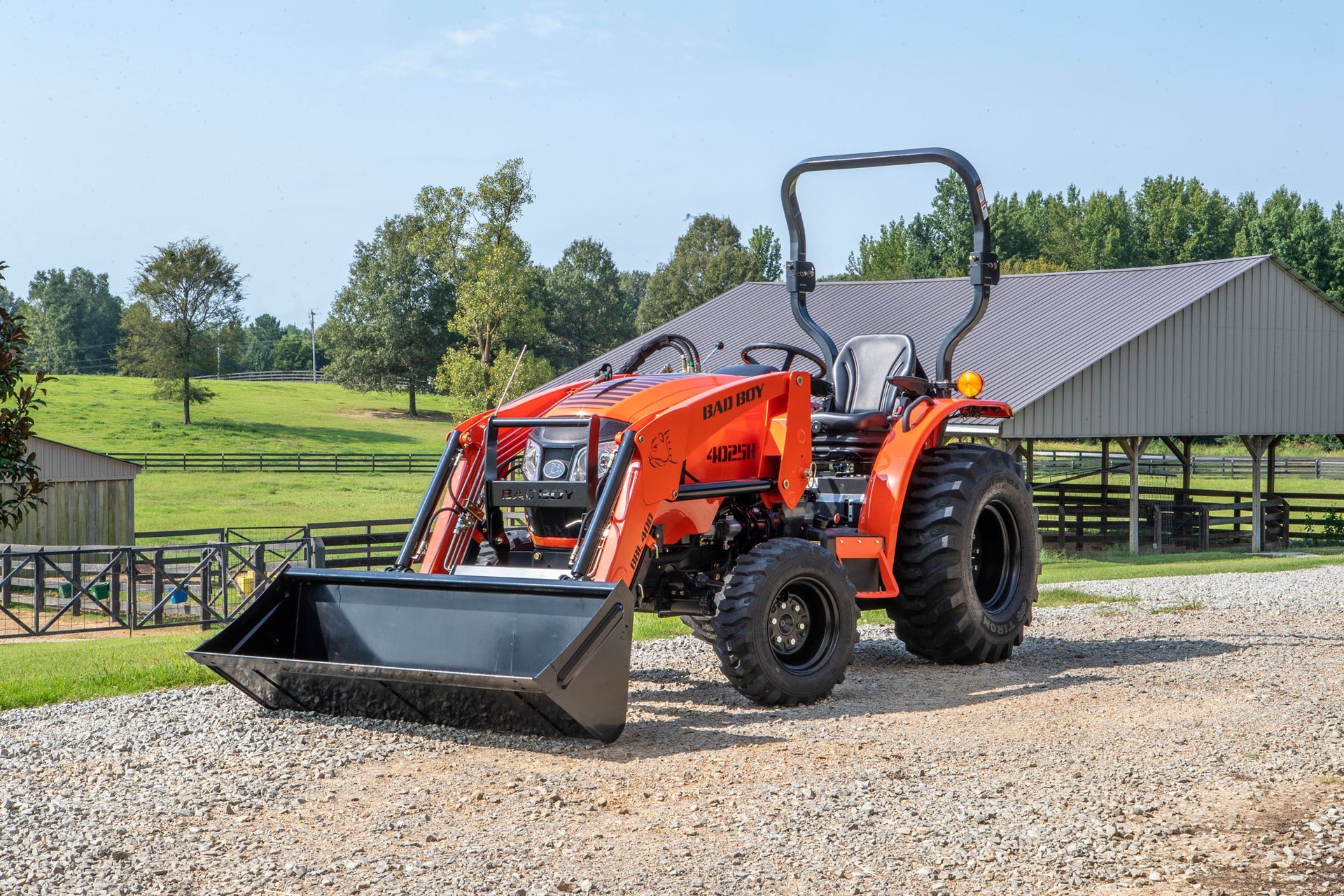

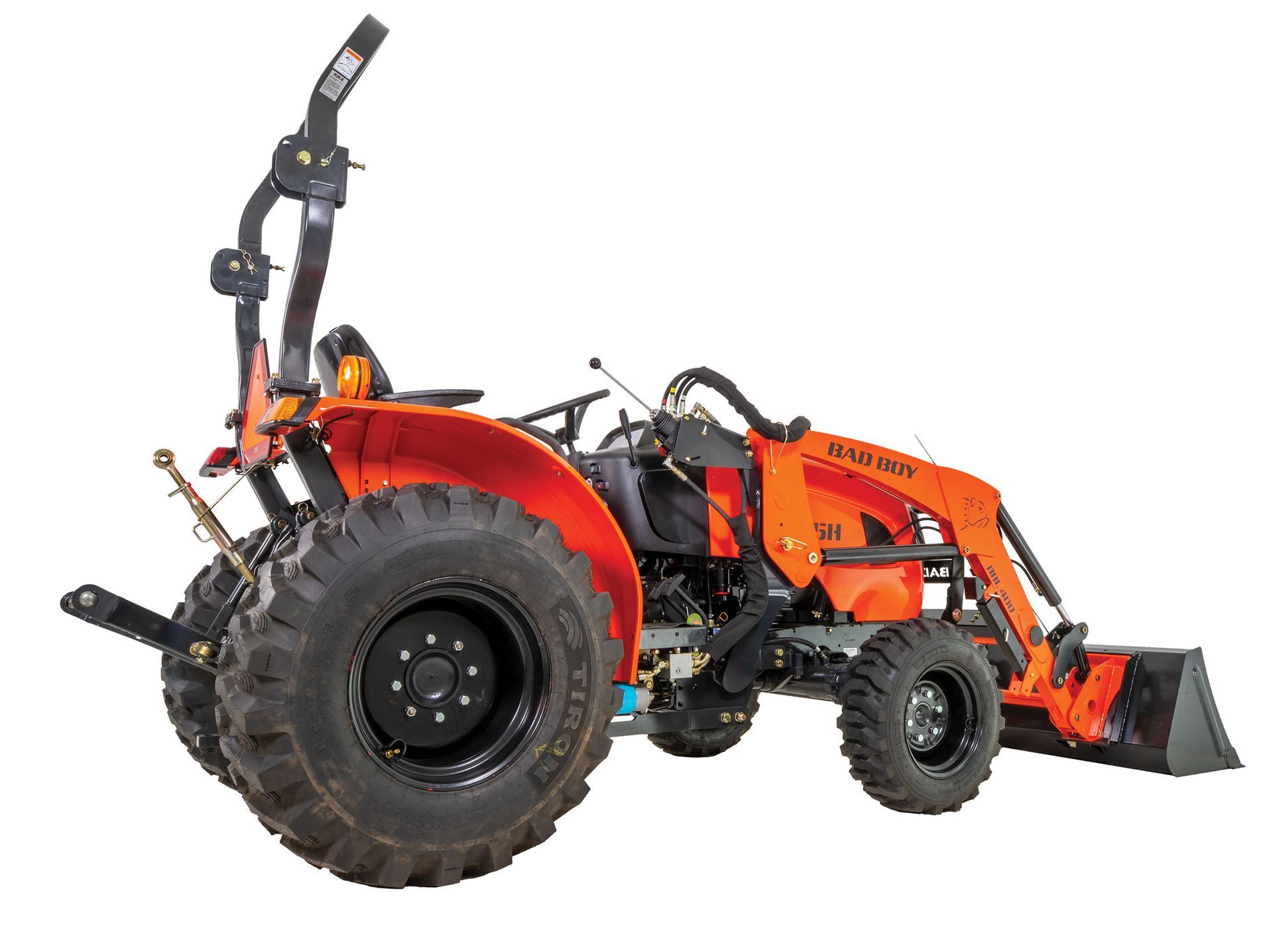

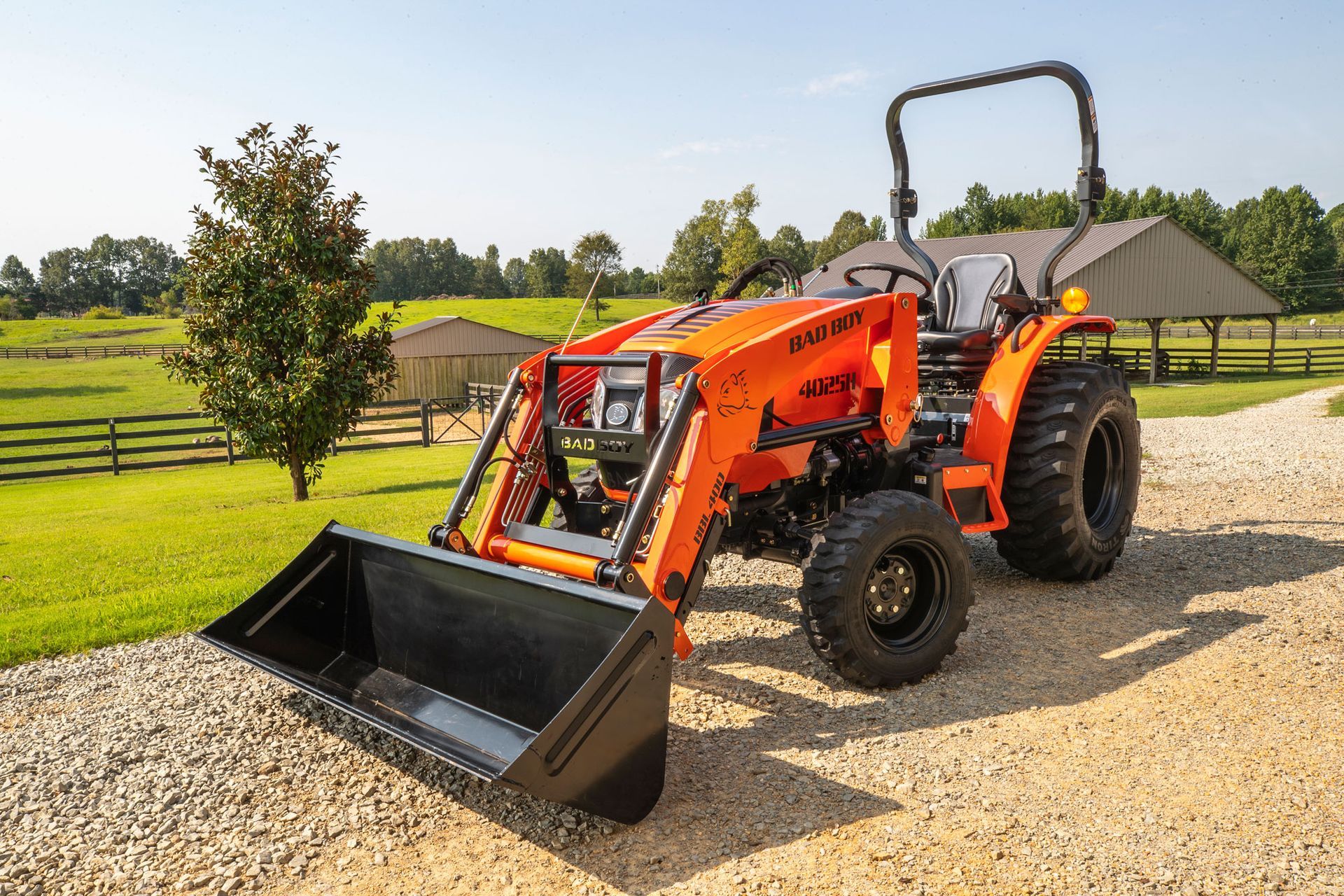

With its powerful 25hp, high-performance diesel engine, the only compact quality of the 4025H is its price. Its frame is the biggest in this class and with more ground clearance, it can handle chores usually reserved for much larger tractors. The 4025H also sports a very high lift capacity for a 25hp diesel, making it the perfect companion for a whole range of three-point hitch implements and demanding front-loader projects. The three-range hydro-static transmission gives you more range of performance and the all-steel hood, fender, and frame construction are all hallmarks of the legendary Bad Boy manufacturing legacy.
4025 POWER TRAIN
Engine: 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM (kW): 24 (18kW)
Displacement (In.)(kW): 104.5(1,714kW)
Number of Cylinders: 3
Fuel Tank (gal)(I): 7.1(27)
4025 DRIVE TRAIN
Transmission: HST
Number of Speeds: 3 Range
Clutch: No
Brakes: Wet, Multi-Disc
4025 PTO
Type: Independent
Rear(Mid) PTO Speed: 540
PTO HP (kW): 21 (15.7kW)
4025 HYDRAULICS
Type: Hydro-static Power Steering
Total Hydraulic Flow (Power Steering+Implement): 11.5 (4+7.5)
3-Point Hitch: Cat 1
Rear Remote Valve: Optional (Up to 2)
3-Point Hitch Lift Capacity @ 24” Behind Lift Point: 2,425 (1,100)
4025 ELECTRICAL
Battery: 12V, 540CCA
Alternator: 12V, 50A
4025 DIMENSIONS
Overall Length Inches (mm): 120.9” (3,071mm)
Overall Width Inches (mm): 56.3” (1,430mm)
Overall Height Inches (mm): 97.3” (2,471mm)
Wheelbase Inches (mm): 65.7” (1,670mm)
Minimum Ground Clearance Inches (mm): 14.4” (366mm)
Turning Radius: 45°
Weight Lbs. (kg): 2,969Lbs. (1,347kg)
4025 WHEELS & TIRES
IND (Front): 28x8.50-15
IND (Rear): 43x16.00-20
4025 LOADER – MODEL BBL400
Standard Bucket Size (In.): 62”
Maximum Lift Height (In.): 104”
Dig Depth (In.): 1.8”
Lift Capacity to Full Height at Pivot Pin (Lbs.): 2,200 Lbs.
Breakout Force (Lbs.): 3,660 lbs.
Shipping Weight (Lbs.): 1,007Lbs.
4025 BACKHOE – MODEL BBH400
Standard Bucket Size (In.): 16”
Type: Sub-frame Mounted, Quick Attach
Maximum Dig Depth (In.): 92.2”
Dig Force Bucket (Lbs.): 4,380Lbs.
Shipping Weight (Lbs.): 1,270Lbs.

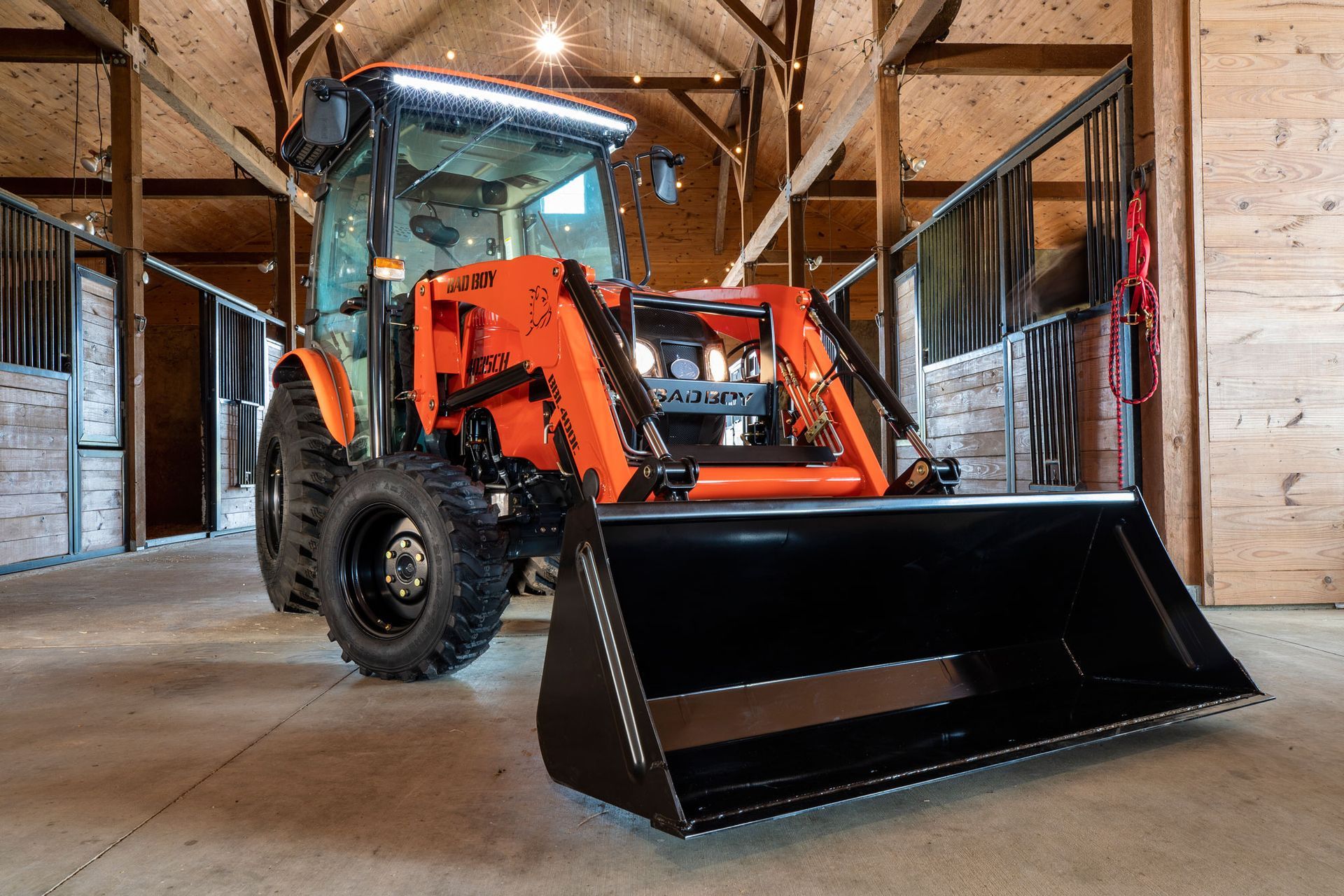

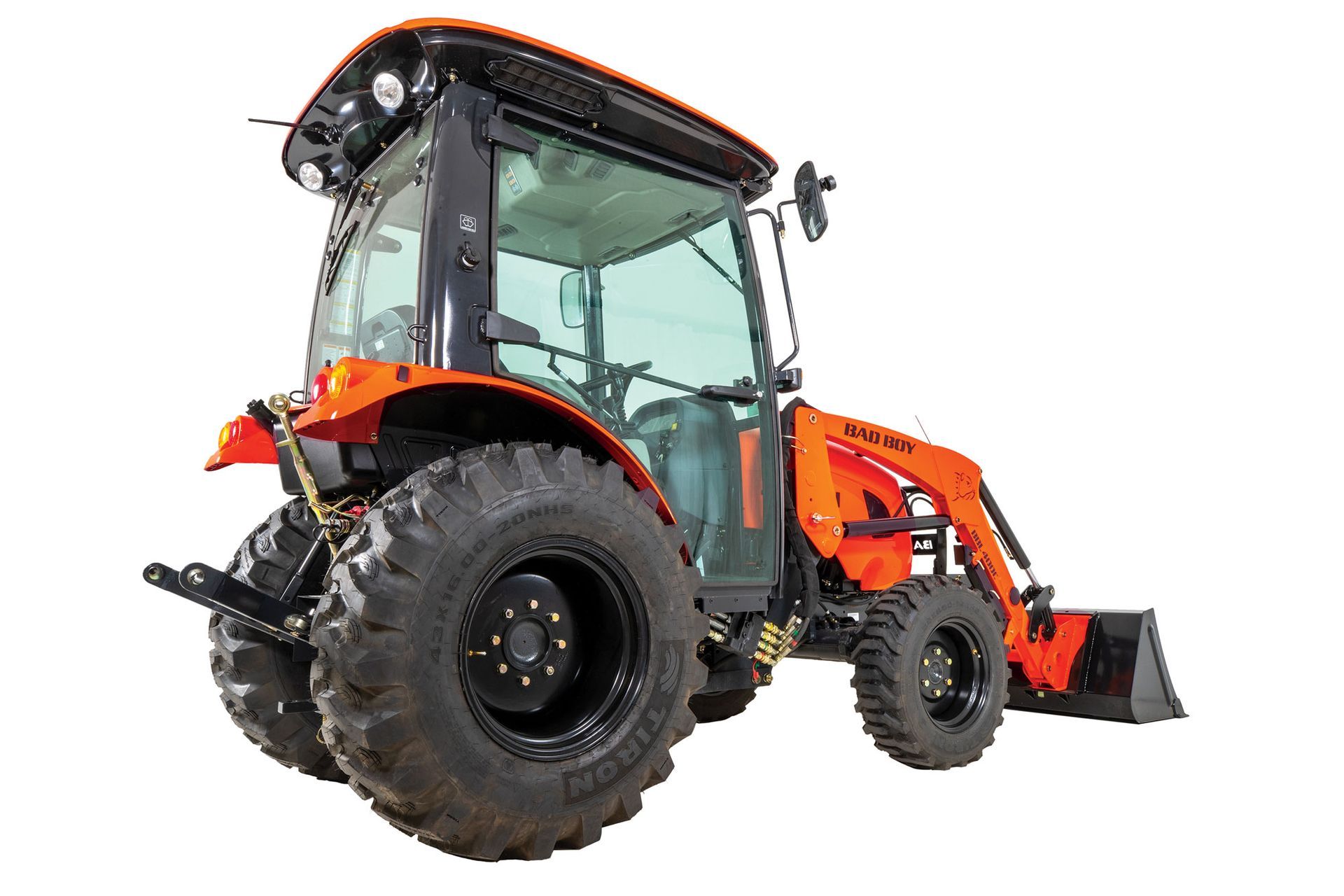

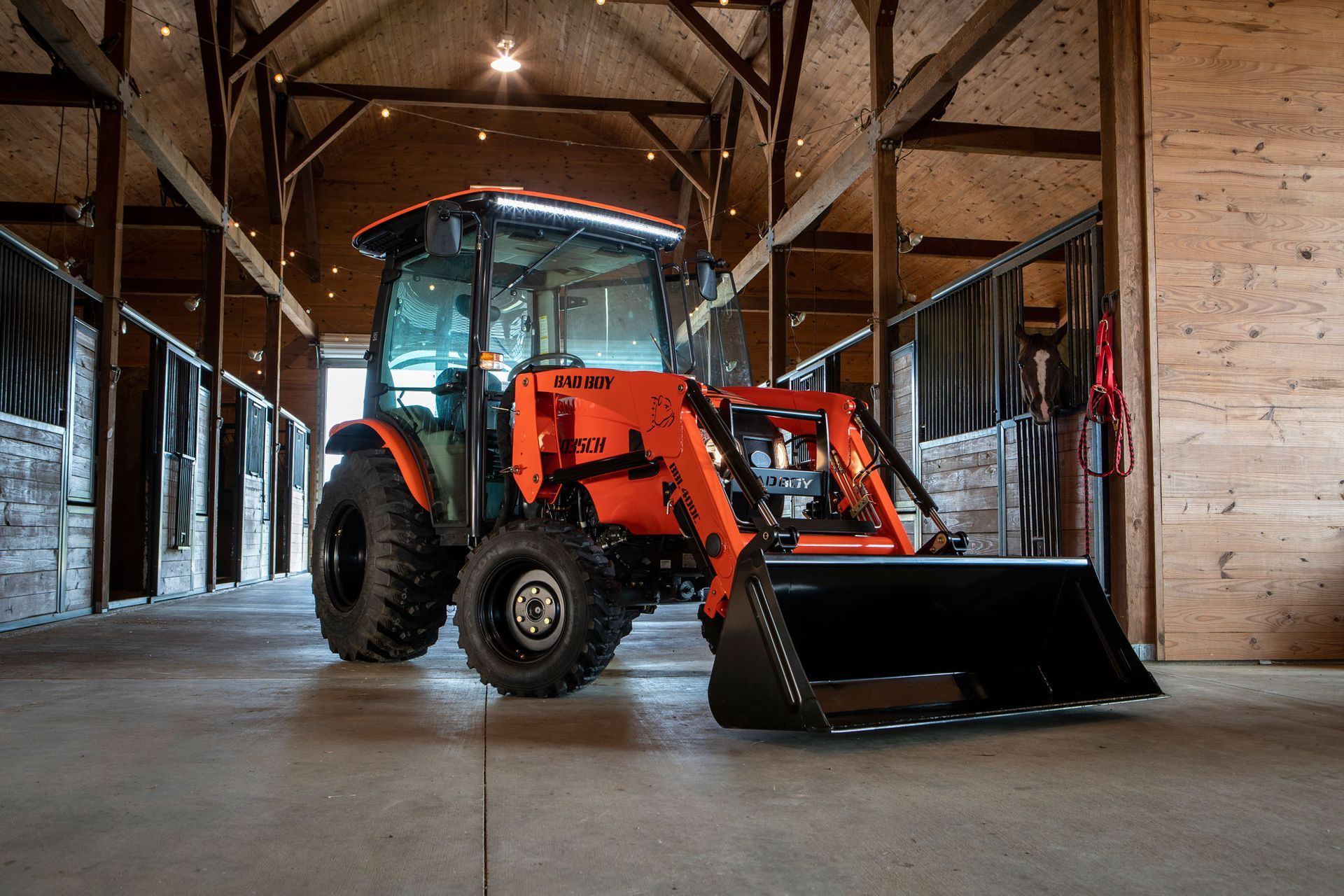

The largest tractor in the Bad Boy Tractor stable is the 35hp 4035 Series thoroughbred available with or without a fully climate-controlled, all-weather cab. With our Hydro Max transmission, you no longer need to pre-set an engine throttle position. The engine RPM automatically increases or decreases as you move the forward/reverse foot pedals. Hydro Max is quiet, smooth, easy, and eco-smart. The tractor is easy to maintain, with easy access to all serviceable parts, and the eco-friendly "A" Series diesel engine sips fuel while providing maximum performance in speed, power, and lifting.
4035 & 4035CAB POWER TRAIN
Engine: 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM (kW): 35 (26.2)
Displacement (In.)(kW): 104.5” (1,714kW)
Number of Cylinders: 3
Fuel Tank (Gal.)(I): 7.1 (27)
4035 &4035CAB DRIVE TRAIN
Transmission: HST
Number of Speeds: 3 Range
Clutch: No
Brakes: Wet, Multi-Disc
4035 & 4035CAB PTO
Type: Independent
Rear(Mid) PTO Speed: 540
PTO HP (kW): 30 (22.5kW)
4035 & 4035CAB HYDRAULICS
Type: Hydro-static Power Steering
Total Hydraulic Flow (Power Steering+Implement): 12.6 (4.4+8.2)
3-Point Hitch: Cat 1
Rear Remote Valve: Optional (Up to 2)
3-Point Hitch Lift Capacity @ 24” Behind Lift Point: 2,425 (1,100)
4035 & 4035CAB ELECTRICAL
Battery: 12V, 540CCA
Alternator: 12V, 50A
4035 DIMENSIONS
Overall Length Inches (mm): 120.9” (3,071mm)
Overall Width Inches (mm): 56.3” (1,430mm)
Overall Height Inches (mm): 97.3” (2,471mm)
Wheelbase Inches (mm): 65.7” (1,670mm)
Minimum Ground Clearance Inches (mm): 14.4” (366mm)
Turning Radius: 45°
Weight Lbs. (kg): 3,163Lbs. (1,435kg)
4035CAB DIMENSIONS
Overall Length Inches (mm): 120.9” (3,071mm)
Overall Width Inches (mm): 55.1” (1,413mm)
Overall Height Inches (mm): 89.3” (2,267mm)
Wheelbase Inches (mm): 65.7” (1,670mm)
Minimum Ground Clearance Inches (mm): 13.1” (334mm)
Turning Radius: 45°
Weight Lbs. (kg): 3,547Lbs. (1,609kg)
4035 WHEELS & TIRES
IND (Front): 28x8.50-15
IND (Rear): 43x16.00-20
4035CAB WHEELS & TIRES
IND (Front): 28x8.5-14
IND (Rear): 43x15-19.5
4035 & 4035CAB LOADER – MODEL BBL400
Standard Bucket Size (In.): 62”
Maximum Lift Height (In.): 104”
Dig Depth (In.): 1.8”
Lift Capacity to Full Height at Pivot Pin (Lbs.): 2,200 Lbs.
Breakout Force (Lbs.): 3,660 Lbs.
Shipping Weight (Lbs.): 1,007 Lbs.
4035 & 4035CAB BACKHOE – MODEL BBH400
Standard Bucket Size (In.): 16”
Type: Sub-frame Mounted, Quick Attach
Maximum Dig Depth (In.): 92.2”
Dig Force Bucket (Lbs.): 4,380Lbs.
Shipping Weight (Lbs.): 1,270Lbs.
We’ve solved the age-old problem of putting more hours into your day with the all-new SA223. This next-level model of our popular SA series gets more done than ever before, whether you’re working with heavy loads or on difficult terrain. The SA223 is packed with performance upgrades like dual-range speeds, standard differential lock, and 3-point hitch position control. Powered by our legendary 3-cylinder, liquid-cooled diesel engine, Yanmar’s SA223 always shows up ready to work -- so you can get back to doing what you love. NEW! Dual range speeds, standard differential lock, and true position control on the 3-point lift system for maximum precision and power.
The SA223 is for people who share our passion for the land and believe in working that land the right way. Not only is it built with a powerful, fuel-efficient engine, but its sleek design is engineered for comfort and efficiency down to the easy-access, high-rise hood.
Yanmar makes all the major drivetrain components — the engine, transmission, and axles — in-house. And because they’re made to work perfectly together, you get a hardworking machine with more usable horsepower, less power loss, and a smoother, more comfortable ride. We call it Performance Link Technology™. You’ll quickly appreciate the SA223 as a tractor designed to work as hard as you do.
A large, comfortable operator’s station provides easy access to all controls. The hydrostatic transmission, with convenient side-by-side pedals, allows you to get the job done regardless of the terrain or the implement you’re using. The smooth, hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue.
ENGINE
Model: 3TNM74F
Type: 4 Cycle Inline, Water Cooled Diesel
Number of Cylinders: 3
Bore and Stroke in (mm): 2.92x3.03 (74x77)
Total Displacement cu In (L): 60.6 (0.993)
Gross Power: EPA Regulation HP (kW): 21.5 (16.0)
Net Power HP (kW): 19.4 (14.5)
Rated Revolution RPM: 3,200
Maximum Torque ft. lbs (Nm): 39.4 (53.5)
Battery: 540 CCA
Fuel: Diesel
CAPACITIES
Fuel Tank US gal (L): 6.1 (23.0)
Engine Oil US qt (L): 3.1 (2.9)
Engine Coolant US qt (L): 3.0 (2.8)
Transmission Oil US gal (L): 4.1 (15.5)
Front Axle Oil US gal (L): 3.17 (3.0)
DIMENSIONS in. (mm)
Overall Length (with 3-Point Hitch): 102.1 (2,594)
Overall Width (with R4 Tires): 47.3 (1,200)
Overall Height (with Roll-Over Protection (ROPS) and R4: Tires 82.3 (2,090)
Overall Height (with Folded ROPS, R4 Tires, Top Of Steering Wheel): 66.3 (1,683)
Overall Height (with R4 Tires, Top Of Steering Wheel): 51.1 (1,299)
Wheel Base: 57.9 (1,400)
Minimum Ground Clearance (with R4 Tires): 6.4 (163)
Tread (with R4): Front: 35.2 (894), Rear: 35.2 (894)
WEIGHT lb. (kg)
(with ROPS, R4 Tires): 1,537 (697)
TRAVELING SYSTEM
Tires: Ag (R1) Front, Rear: n/a. Turf (R3) - Front: 18x8.50-10 4PR, Rear: 26x12.0-12 4PR. Industrial (R4) - Front: 18x8.50-10 6PR, Rear: 26x12.0-12 4PR
Clutch: n/a
Steering: Hydrostatic Power
Transmission: Hydrostatic Transmission
Drive: Selected 4WD
Brake: Wet Disk
Minimum Turning Radius ft (m): 7.87 (2.4)
HYDRAULIC UNIT
Hydraulic Control System: Position Control, Open Center
Pump Capacity (implement) US gal/min (L/min): 4.3 (16.1)
Pump Capacity (steering) US gal/min (L/min): 3.7 (14.1)
3-Point Hitch: Limited Category 1
Maximum Lift Force: Lift Point lb (kg) 24 in Behind Lift Point lb (kg) - 660 (300)
System Pressure psi (MPa): 1,891 (13.00)
POWER TAKE OFF (PTO)
Power Take Off (PTO) Power HP (kW): 15.6 (11.6)
Type: Hydraulic Clutch
Rear: Shaft Size - 35 mm OD, 6 Splines. Type - Independent. Speed/Engine RPM - 554/3,200
Mid: Shaft Size - SAE16/32, 15 Splines. Type - Independent. Speed/Engine RPM - 2,057/3,200
TRAVELING SPEEDS
Forward mph (km/h): Low: 0-4.5 (0-7.3), High 0-9.5 (0-15.2)
Reverse mph (km/h): Low: 0-3.2 (0-5.1), High 0-6.6 (0-10.6)
YANMAR YL110 CURVED BOOM LOADER SPECIFICATIONS
Maximum Lift Height to Pivot Pin in (mm): 71 (1,800)
Maximum Lift Height Under Level Bucket in (mm): 51 (1,295)
Reach at Maximum Lift Height in (mm): 24 (610)
Reach with Bucket on Ground in (mm): 47 (1,205)
Digging Depth in (mm): 3.9 (100)
Maximum Drop Angle degree: 40
Maximum Rollback Angle degree: 30
Lift Capacity (Pivot Pin) lb (kg): 825 (375)
Breakout Force (Pivot Pin) lb (kg): 1,342 (610)
Rollback Force (Ground Line) lb (kg): 1,122 (510)
Rated Flow GPM (L/m): 4.3 (16.1)
System Pressure psi (MPa): 1,891 (13.0)
Rising Time to Full Height w/o Load sec: 3.0
Lowering Time w/o Load sec: 1.8
Attachment Rollback Time sec: 2.2
Attachment Dumping Time (REGEN): sec 1.5
Bucket Width in (mm): 48 (1,219)
Bucket Capacity cu ft (m³): 5.3 (0.15)
Bucket Weight lb (kg): 130 (59)
Loader Weight w/Bucket Ib (kg): 425 (193)
YANMAR B65 BACKHOE SPECIFICATIONS
Maximum Digging Depth (2’ flat bottom) in (mm): 78.4 (1,991)
Swing Arc: 150 degrees
Loading Height (bucket at 60 deg) in (mm): 60 (1,524)
Reach from Center Line of Swing Pivot in (mm): 102 (2,591)
Bucket Rotation: 180 degrees
Loading Reach (bucket at 60 deg) in (mm): 35 (889)
Transport Overhang in (mm): 42.4 (1,077)
Undercut in (mm): 25 (635)
Stabilizer Spread, down position in (mm): 85.6 (2,174)
Stabilizer Spread, up position in (mm): 52.6 (1,336)
Bucket Cylinder Digging Force lb (kg): 2,800 (1,270)
Dipperstick Cylinder Digging Force lb (kg): 1,590 (721)
Operating Pressure psi (kg/cm): 1,885 (132.5) Backhoe Weight Ib (kg): 677 (307)
YANMAR M60 MID-MOUNT MOWER SPECIFICATIONS
Mounting Method: Ground Following
Cutting Width in (mm): 60 (1,524)
Cutting Height in (mm): 1-4 (25.4-101.6)
Number of Blades: 3
Weight Ib (kg): 283.8 (129)
AVAILABLE ATTACHMENTS FOR THE YANMAR 223
Front End Loader
Front Blade
3-Pt Attachments
Backhoe
Snow Blower
Mid-Mount Mower
Work smarter by letting your tractor work harder. The new and improved SA325 is the ideal sub-compact tractor choice for versatility and flexibility. Use more implements and accessories than ever before, with the comfort of an operator’s platform that was designed with you in mind. Every instrument and control are at your fingertips, so you can enjoy the power and precision of Yanmar’s famously reliable three-cylinder, liquid-cooled diesel engine and our unique combination of horsepower and fuel efficiency. NEW! Standard dual rear remote valve and 12V outlet so you can enjoy the use of more accessories than ever, including those using hydraulic power.
With increased power comes increased versatility. You’ll be able to utilize a wide range of implements that will allow you to get the most out of what your property has to offer. Lift more. Dig deeper. Cut faster. No matter what the task at hand, this tractor will allow you to select an implement that will get the job done quickly, and with ease.
The 325 is equipped with two side-by-side hydrostatic transmission pedals that allow you to switch seamlessly between forward and reverse. You’ll notice that jobs, particularly those in tight spaces, get taken care of easily. This unique pedal design improves overall ease of operation, allowing you to get more done with less effort.
This tractor is also equipped with a full-frame chassis. This means that while you’re tackling your property to-do list, you’ll be doing it on a tractor that operates quietly, with less vibration. Plus, it’s a design that’s rugged enough to last a lifetime.
ENGINE
Model: 3TNV80F
Type: 4 Cycle Inline, Water Cooled Diesel
Number of Cylinders: 3
Bore and Stroke in (mm): 3.15 x 3.30 (80 x 84)
Total Displacement cu In (L): 77.2 (1.266)
Gross Power: EPA Regulation HP (kW): 23.9 (17.8)
Net Power HP (kW): 21.7 (16.2)
Rated Revolution: RPM 3,200
Maximum Torque ft. lbs (Nm): 45.7 (62.0)
Battery: 540 CCA
Fuel: Diesel
CAPACITIES
Fuel Tank US gal (L): 6.1 (23)
Engine Oil US qt (L): 3.6 (3.4)
Engine Coolant US qt (L): 3.0 (2.8)
Transmission Oil US gal (L): 4.1 (15.5)
Front Axle Oil US gal (L): 3.7 (3.5)
DIMENSIONS in. (mm)
Overall Length (with 3-Point Hitch): 105.8 (2,688)
Overall Width (with R4 Tires): 54.6 (1,387)
Overall Height (with Roll-Over Protection (ROPS) and R4 Tires: 85.8 (2,180)
Overall Height (with Folded ROPS, R4 Tires, Top Of Steering Wheel): 70.4 (1,789)
Overall Height (with R4 Tires, Top Of Steering Wheel): 55.3 (1,405)
Wheel Base: 63.0 (1,600)
Minimum Ground Clearance (with R4 Tires): 8.5 (215)
Tread (with R4): Front: 37.8 (960), Rear: 40.5 (1,028)
WEIGHT lb. (kg)
(with ROPS, R4 Tires): 1,715 (778)
TRAVELING SYSTEM
Tires: Ag (R1) - Front, Rear: n/a, Turf (R3) - Front: 23x8.50-12 4PR, Rear: 33x12.5-16.5 4PR. Industrial (R4) - Front: 23x8.50-12 4PR, 12-16.5 10PR
Clutch: n/a
Steering: Hydrostatic Power
Transmission: Hydrostatic Transmission, Dual Range Speeds
Drive: Selected 4WD
Brake: Wet Disk
Minimum Turning Radius ft. (m): 8.5 (2.6)
HYDRAULIC UNIT
Hydraulic Control System: Position Control, Open Center
Pump Capacity (implement) US gal/min (L/min): 4.3 (16.1)
Pump Capacity (steering) US gal/min (L/min): 3.7 (14.1)
3-Point Hitch: Limited Category 1
Maximum Lift Force: Lift Point lb. (kg) - n/a. 24" Behind Lift Point lbs. (kg) - 1,209 (548)
System Pressure psi (MPa): 2,429 (16.7)
POWER TAKE OFF (PTO)
Power Take Off (PTO) Power HP (kW): 18.1 (13.5)
Type: Hydraulic Clutch
Rear: Shaft Size - 35 mm OD, 6 Splines. Type - Independent
Mid: Speed/Engine RPM - 554/3,200. Shaft Size - SAE16/32, 15 Splines. Type - Independent. Speed/Engine RPM - 2,057/3,200
TRAVELING SPEEDS
Forward mph (km/h): Low: 0-5.9 (0-9.4), High: 0-12.3 (0-19.6)
Reverse mph (km/h): Low: 0-4.1 (0-6.6), High: 0-8.5 (0-13.7)
YANMAR YL210 CURVED BOOM LOADER SPECIFICATIONS
Maximum Lift Height to Pivot Pin in (mm): 79 (2,000)
Maximum Lift Height Under Level Bucket in (mm): 58 (1,465)
Reach at Maximum Lift Height in (mm): 36 (920)
Reach with Bucket on Ground in (mm): 53 (1,355)
Digging Depth in (mm): 3.9 (100)
Maximum Drop Angle: degree 45
Maximum Rollback Angle: degree 30
Lift Capacity (Pivot Pin) lb (kg): 1,200 (545)
Breakout Force (Pivot Pin) lb (kg): 2,090 (950)
Rollback Force (Ground Line) lb (kg): 1,518 (690)
Rated Flow GPM (L/m): 4.3 (16.1)
System Pressure psi (MPa): 2,429 (16.7)
Rising Time to Full Height w/o Load sec: 3.7
Lowering Time w/o Load sec: 2.3
Attachment Rollback Time sec: 2.3
Attachment Dumping Time (REGEN) sec: 1.6
Bucket Width in (mm): 53 (1,346)
Bucket Capacity cu ft (m³): 5.65 (0.16)
Bucket Weight lb (kg): 145 (66)
Loader Weight w/Bucket Ib (kg): 508 (231)
YANMAR B65 BACKHOE SPECIFICATIONS
Maximum Digging Depth (2’ flat bottom) in (mm): 76.9 (1,953)
Swing Arc: 150 degrees
Loading Height (bucket at 60 deg) in (mm): 61.5 (1,562)
Reach from Center Line of Swing Pivot in (mm): 104 (2,641.6)
Bucket Rotation: 180 degrees
Loading Reach (bucket at 60 deg) in (mm): 35 (889)
Transport Overhang in (mm): 42.4 (1,077)
Undercut in. (mm): 25 (635)
Stabilizer Spread, down position in (mm): 85.5 (2,172)
Stabilizer Spread, up position in (mm): 52.6 (1,336)
Bucket Cylinder Digging Force lb (kg): 2,800 (1,270)
Dipperstick Cylinder Digging Force lbs (kg): 1,590 (721)
Operating Pressure psi (kg/cm): 2,030 (142.7)
Backhoe weight Ib. (kg): 677 (307)
YANMAR M60 MID-MOUNT MOWER
SPECIFICATIONS
Mounting Method: Ground Following
Cutting Width in (mm): 60 (1,524)
Cutting Height in (mm): 1-4 (25.4-101.6)
Number of Blades: 3
Weight Ib. (kg): 363 (142)
AVAILABLE ATTACHMENTS FOR THE YANMAR 325
Front End Loader
Front Blade
3-Pt Attachments Backhoe
Snow Blower
Mid-Mount Mower
When the going gets rough, the new SA425 is still a smooth ride. With the highest ground clearance and the added weight of cast iron rear axle housings, the SA425 provides stability under even the toughest conditions, with the comfort of an operator’s platform that was designed with you in mind. Every instrument and control are at your fingertips, so you can enjoy the power and precision of Yanmar’s famously reliable three-cylinder, liquid-cooled diesel engine and our unique combination of horsepower and fuel efficiency.
The 425 is outfitted with a larger, more aggressive tire package. This makes for a tractor with increased ground clearance and greater operational stability over challenging terrain. It means you can get on board and operate in the toughest of territory with complete comfort and confidence. With this increased operating confidence, you’ll be able to get even more out of what your land has to offer.
The pure power of the 425 means it has a loader capacity of 1,200 lbs. at the pivot pin. That’s power usually associated with much larger tractors. But that’s Yanmar’s strength- fuel-efficient diesel engines that help you do more.
Making sure your rear implements operate in a position that’s always repeatable means your tasks get done quickly and more accurately. And that’s what Yanmar’s unique True Position Control delivers. An easy-to-reach control lever adjusts the rear implement's operating height and makes sure it’s always right where you need it.
ENGINE
Model: 3TNV80F
Type: 4 Cycle Inline, Water Cooled Diesel
Number of Cylinders: 3
Bore and Stroke in (mm): 3.15 x 3.30 (80 x 84)
Total Displacement cu In (L): 77.2 (1.266)
Gross Power: EPA Regulation HP (kW): 23.9 (17.8)
Net Power HP (kW): 21.7 (16.2)
Rated Revolution: RPM 3,200
Maximum Torque ft. lbs (Nm): 45.7 (62.0)
Battery: 540 CCA
Fuel: Diesel
CAPACITIES
Fuel Tank US gal (L): 6.1 (23)
Engine Oil US qt (L): 3.6 (3.4)
Engine Coolant US qt (L): 3.0 (2.8)
Transmission Oil US gal (L): 4.1 (15.5)
Front Axle Oil US gal (L): 3.7 (3.5)
DIMENSIONS in. (mm)
Overall Length (with 3-Point Hitch): 105.8 (2,688)
Overall Width (with R4 Tires): 54.6 (1,387)
Overall Height (with Roll-Over Protection (ROPS) and R4 Tires: 85.8 (2,180)
Overall Height (with Folded ROPS, R4 Tires, Top Of Steering Wheel): 70.4 (1,789)
Overall Height (with R4 Tires, Top Of Steering Wheel): 55.3 (1,405)
Wheel Base: 63.0 (1,600)
Minimum Ground Clearance (with R4 Tires): 8.5 (215)
Tread (with R4): Front: 37.8 (960), Rear: 40.5 (1,028)
WEIGHT lb. (kg)
(with ROPS, R4 Tires): 1,715 (778)
TRAVELING SYSTEM
Tires: Ag (R1) - Front, Rear: n/a, Turf (R3) - Front: 23x8.50-12 4PR, Rear: 33x12.5-16.5 4PR. Industrial (R4) - Front: 23x8.50-12 4PR, 12-16.5 10PR
Clutch: n/a
Steering: Hydrostatic Power
Transmission: Hydrostatic Transmission, Dual Range Speeds
Drive: Selected 4WD
Brake: Wet Disk
Minimum Turning Radius ft. (m): 8.5 (2.6)
HYDRAULIC UNIT
Hydraulic Control System: Position Control, Open Center
Pump Capacity (implement) US gal/min (L/min): 4.3 (16.1)
Pump Capacity (steering) US gal/min (L/min): 3.7 (14.1)
3-Point Hitch: Limited Category 1
Maximum Lift Force: Lift Point lb. (kg) - n/a. 24" Behind Lift Point lbs. (kg) - 1,209 (548)
System Pressure psi (MPa): 2,429 (16.7)
POWER TAKE OFF (PTO)
Power Take Off (PTO) Power HP (kW): 18.1 (13.5)
Type: Hydraulic Clutch
Rear: Shaft Size - 35 mm OD, 6 Splines. Type - Independent
Mid: Speed/Engine RPM - 554/3,200. Shaft Size - SAE16/32, 15 Splines. Type - Independent. Speed/Engine RPM - 2,057/3,200
TRAVELING SPEEDS
Forward mph (km/h): Low: 0-5.9 (0-9.4), High: 0-12.3 (0-19.6)
Reverse mph (km/h): Low: 0-4.1 (0-6.6), High: 0-8.5 (0-13.7)
YANMAR YL210 CURVED BOOM LOADER SPECIFICATIONS
Maximum Lift Height to Pivot Pin in (mm): 79 (2,000)
Maximum Lift Height Under Level Bucket in (mm): 58 (1,465)
Reach at Maximum Lift Height in (mm): 36 (920)
Reach with Bucket on Ground in (mm): 53 (1,355)
Digging Depth in (mm): 3.9 (100)
Maximum Drop Angle: degree 45
Maximum Rollback Angle: degree 30
Lift Capacity (Pivot Pin) lb (kg): 1,200 (545)
Breakout Force (Pivot Pin) lb (kg): 2,090 (950)
Rollback Force (Ground Line) lb (kg): 1,518 (690)
Rated Flow GPM (L/m): 4.3 (16.1)
System Pressure psi (MPa): 2,429 (16.7)
Rising Time to Full Height w/o Load sec: 3.7
Lowering Time w/o Load sec: 2.3
Attachment Rollback Time sec: 2.3
Attachment Dumping Time (REGEN) sec: 1.6
Bucket Width in (mm): 53 (1,346)
Bucket Capacity cu ft (m³): 5.65 (0.16)
Bucket Weight lb (kg): 145 (66)
Loader Weight w/Bucket Ib (kg): 508 (231)
YANMAR B65 BACKHOE SPECIFICATIONS
Maximum Digging Depth (2’ flat bottom) in (mm): 76.9 (1,953)
Swing Arc: 150 degrees
Loading Height (bucket at 60 deg) in (mm): 61.5 (1,562)
Reach from Center Line of Swing Pivot in (mm): 104 (2,641.6)
Bucket Rotation: 180 degrees
Loading Reach (bucket at 60 deg) in (mm): 35 (889)
Transport Overhang in (mm): 42.4 (1,077)
Undercut in. (mm): 25 (635)
Stabilizer Spread, down position in (mm): 85.5 (2,172)
Stabilizer Spread, up position in (mm): 52.6 (1,336)
Bucket Cylinder Digging Force lb (kg): 2,800 (1,270)
Dipperstick Cylinder Digging Force lbs (kg): 1,590 (721)
Operating Pressure psi (kg/cm): 2,030 (142.7)
Backhoe weight Ib. (kg): 677 (307)
YANMAR M60 MID-MOUNT MOWER
SPECIFICATIONS
Mounting Method: Ground Following
Cutting Width in (mm): 60 (1,524)
Cutting Height in (mm): 1-4 (25.4-101.6)
Number of Blades: 3
Weight Ib. (kg): 363 (142)
AVAILABLE ATTACHMENTS FOR THE YANMAR 325
Front End Loader
Front Blade
3-Pt Attachments Backhoe
Snow Blower
Mid-Mount Mower
As with every YANMAR tractor, the true power lies in the fuel-efficient YANMAR diesel engine. That means the YT235 can do serious work with a front-end loader, a hydraulic backhoe, and three-point hitch attachments for mowing, tilling, planting, digging, plowing, and much more. The advanced styling of the YANMAR YT2 Series tractors is only the beginning. The YT235 was built to help you be more efficient and productive. Every day. From easy-to-use controls to the advanced engineering under the hood, the innovation of the YT235 goes much deeper than stunning aesthetics.
POWERTRAIN YT235 ROPS & YT235 CAB
Model: 3TNV88C Tier4
Gross Power: 34.2 HP(26.1 kW)*
PTO Power (@2,800 RPM): 27 HP (20.1 kW)
Rated RPM: 2,800 RPM
Total Displacement: 100.1 cu. In. (1.642 L)
Aspiration: Naturally Aspirated
Cooling System: Liquid-cooled
Number of cylinders: 3
Battery: 540 CCA
Alternator: 40/55
Fuel tank: 7.4 gal. (28 L)
DRIVETRAIN
Transmission Type: Hydrostatic (Dual Touch Pedal)
Rear Differential Lock: Foot pedal engagement
2WD/4WD engagement: Selectable
Brake: Wet disc
Number of ranges: 3
Rear PTO/RPM: 540
Mid PTO/RPM: 2,013
HYDRAULICS
Pump capacity (steering): 4.1 GPM (15.5 L/min) @ 2,800 RPM
Pump capacity (implement): 7.1 GPM (26.8 L/min) @ 2,800 RPM
3-point hitch: Category 1
3-point lift capacity (std.): 2,205 lbf. (1,000 kgf)
3-point lift capacity at 24” (61 cm): 1,764 lbf. (800 kgf)
4-way loader control valve: Standard
Power steering: Fully Hydraulic
DIMENSIONS
Wheelbase: 65” (1,650 mm)
Width (with R4 Tires): 58.3” (1,482 mm)
Overall length (with 3PH and R4 Tires): 116.9” (2,970 mm)
Overall height (with R4 Tires): 89.0” (2,261 mm) 83.6” (2,123 mm)
Ground clearance (with R4 Tires): 10.8” (274 mm)
Weight (with ROPS, R4 Tires, Full Fluid): 2,558 lbs. (1,160 kg) 2,910 lbs. (1,320 kg)
TIRE SIZE
Front: R1: 6” - 14” , R3: 9.5” - 22” , R4: 13.6” x 16”
Rear: R1: 9.5” - 22” R3: 13.6” x 16” R4: 15” - 19.6”
TRAVELING SPEEDS
Forward (with R4 Tires): 0 - 11.7 mph (0 - 18.9 kmh)
Reverse (with R4 Tires): 0 - 8.2 mph (0 - 13.2 kmh)
M60F MID-MOUNT MOWER
Discharge type: Side Discharge
Mounting Method: Ground Following
Shell type: Fabricated 10 gauge
Cutting Width: 60” (1,524 mm)
Cutting Height: 1-4” (25.4 - 101.6 mm)
Weight: 283.8 lbs. (129 kg)
YL310 LOADER
Maximum lift height (to bucket pivot pin): 84” (2,134 mm)
Reach with attachment on the ground: 63” (1,600 mm)
Dump clearance: 60” (1,524 mm)
Digging depth at bucket level: 4.5” (114 mm)
Bucket width: 60” (1,524 mm)
Lift capacity at pivot pins: 1,300 lb. (590 kg)
Lift capacity at 500 mm forward of the pivot pins: 957 lb. (434 kg)
Breakout force 500 mm forward of the pivot pins: 1,549 lb. (703 kg)
Breakout force at pivot pins: 2,105 lb. (955 kg)
Raising time to full height w/o load: 2.6 sec.
Lowering time w/o load (power down): 1.6 sec.
Bucket dumping time: 1.0 sec.
Bucket rollback time: 1.5 sec.
Bucket capacity: 8.48 cu. ft. (0.24 m3 )
Grille guard: Standard
Tractor Length w/Loader: 12’8” (3861 mm)
Bucket Weight: 298 lb. (135 kg)
Loader Weight w/Bucket: 913 lb. (415 kg)
B75 BACKHOE
Digging depth (2’ flat bottom): 90” (2,286 mm)
Swing arc: 180˚
Loading height (bucket at 60˚): 73” (1,854 mm)
Reach from centerline of the swing pivot: 119” (3,022 mm)
Transport height (maximum): 74” (1,879 mm)
Bucket rotation: 180˚
Stabilizer spread-up position: 83” (2,108 mm)
Stabilizer spread-down position: 52” (1,320 mm)
Bucket cylinder digging force: 3,323 lbf. (1,507 kgf)
Dipperstick cylinder digging force: 2,192 lbf. (994 kgf)
Operating Pressure: 2,429 PSI (16.7 MPa)
Ramp angle (w/industrial tires): 15°
Street pads: Option
Bucket options: Various (9” - 24”)
Weight: 1,208 lb. (598 kg)
Tractor Length w/Backhoe & Loader: 18’6” (5,639 mm)
WARRANTY COVERAGE FOR YOUR TRACTOR†
Tractor (Private Individual Usage): 24 months or 2,000 hours
Power train (Engine and transmission core components): 10 years or 3,000 hours
Attachments: 1-year limited warranty
The original YM series tractors were referred to as “the overachievers” – and with features like 540 economy PTO, 2,500lb lift capacity, and Yanmar’s proven performance link technology – that legacy continues with the YM3. The YM342 is equipped with a 41-horsepower engine and a maximum traveling speed of up to 17.7mph
Synchronized shuttle shift allows you to quickly change between forward and reverse allowing effortless loader work. Suitable for grading, material handling, and moving bales of hay. Gear Drive transmission combines with Yanmar diesel engine to give you high torque and more usable PTO Power.
The YM3 series tractors are designed with comfort, efficiency, and versatility. Designed with an adjustable suspension seat and a flat isolation mounted floorboard design for maximum comfort during operation.
Compatible with both Category 1 and Category 2 attachments. A telescopic hitch arm provides ease and convenience with small adjustments for quick attachment mounting. Heavy-duty, pin-style sway bars keep your attachment securely in place.
The lower fuel tank positioning allows for quick and easy fueling. A larger fuel capacity increases productivity in the field and keeps you working longer between stops.
ENGINE
Model: 4TNV88C-XKITL
Engine (hp): 41.4
PTO (hp): 31.0
Fuel Tank Capacity (gal): 13.2
Engine Displacement (ci): 133.6
Fuel: Diesel
Dual Air Cleaner Element: n/a
Large Volume Water Separator: n/a
One-Piece Full Open Hood: n/a
DIMENSIONS
Minimum Ground Clearance (in): 15.5
Wheelbase (in); 74.8
Front Tread (in) (R1 Tires): 50
Minimum Rear Tread (in) (R1 Tires): 52
Maximum Rear Tread (in) (R1 Tires): 64
Rear Adjustment Width (in) (R1 Tires): 12
Turning Radius (Without Brakes) (in): (R1 Tires) 138
WEIGHT
ROPS (lbs): 3,916
TRANSMISSION
Main Clutch; Dry Single
Main Shift: Synchronized
Reverser: Synchronized
Number of Gears (F-R): F8 - R8
Maximum Traveling Speed (mph): (R1 Tires) 17.7
HYDRAULICS
Hitch Category (SAE Designation): Category 1 & 2
Lower Link Ends: Telescopic
Remote Control Valves Available: 1 Standard (2 Opt)
HYDRAULIC PUMP CAPACITY
Power Steering (gpm): 5.3
Implement (gpm): 9.3
Total (gpm): 14.6
POWER TAKE OFF
Speeds (rpm): 540/540E
Independent PTO: n/a
3-POINT LIFT CAPACITY
Lower-Link Standard (lbs): 3,190
24’’ Behind (lbs): 2,750
TIRE SIZE
AG Front: 8.0 - 16.0
AG Rear: 14.9 - 24.0
Industrial Front: 10.0 - 16.5
Industrial Rear: 17.5L - 24.0
Turf Front: 27.0 - 10.5
Turf Rear: 44 x 18 - 20.0
EXTERIOR
Full Flat Floor: n/a
Deluxe Seat: n/a
Mud Shield, Foot Guard: Optional
Cup Holder: n/a
YANMAR YL605 LOADER SPECIFICATIONS
Maximum Lift Height (in): 113.0
Loader Weight (lb): 1,212.5
Dump Clearance (in): 87.6
Maximum Height @ Reach (in): 16.0
Reach with Bucket on Ground (in): 74.0
Digging Depth (in): 7.5
Maximum Dump Angle (Degree): 45°
Maximum Rollback Angle (Degree): 40°
PERFORMANCE
Lift Capacity (Pivot Pin) (lbs): 2,500
Lift Capacity (500 mm Foward) (lbs): 1,795
Breakout Force (500 mm Foward) (lbs): 3,047
Bucket Capacity (cu. ft.): 10.9
STANDARD
Skid Steer Quick Attach: n/a
Bucket Level Indicator: n/a
72’’ Bucket: n/a
Grille Guard: n/a
OPTIONAL
3rd Function Valve
YANMAR B85 BACKHOE SPECIFICATIONS
Backhoe Weight (lb): 1,818.8
Maximum Digging Depth (in): 103.0
Reach from Swing Pivot (in): 141.0
Transportation Height (in): 94.0
Transportation Length (in): 55.0
Bucket Digging Force (lbs): 4,600
Dipperstick Digging Force (lbs): 2,940
Digging Depth 2’ Flat Bottom (in): 102.0
Loading Height (in): 83.0
Loading Reach (in): 61.0
ENGINE
Model: 4TNV88C-XKITL
Engine (hp): 46.0
PTO (hp): 35.5
Fuel Tank Capacity (gal): 13.2
Engine Displacement (ci): 133.6
Fuel: Diesel
Dual Air Cleaner Element: n/a
Large Volume Water Separator: n/a
One-Piece Full Open Hood: n/a
DIMENSIONS
Minimum Ground Clearance (in): 15.5
Wheelbase (in); 74.8
Front Tread (in) (R1 Tires): 50
Minimum Rear Tread (in) (R1 Tires): 52
Maximum Rear Tread (in) (R1 Tires): 64
Rear Adjustment Width (in) (R1 Tires): 12
Turning Radius (Without Brakes) (in): (R1 Tires) 138
WEIGHT
ROPS (lbs): 3,916
TRANSMISSION
Main Clutch; Dry Single
Main Shift: Synchronized
Reverser: Synchronized
Number of Gears (F-R): F8 - R8
Maximum Traveling Speed (mph): (R1 Tires) 17.7
HYDRAULICS
Hitch Category (SAE Designation): Category 1 & 2
Lower Link Ends: Telescopic
Remote Control Valves Available: 1 Standard (2 Opt)
HYDRAULIC PUMP CAPACITY
Power Steering (gpm): 5.3
Implement (gpm): 9.3
Total (gpm): 14.6
POWER TAKE OFF
Speeds (rpm): 540/540E
Independent PTO: n/a
3-POINT LIFT CAPACITY
Lower-Link Standard (lbs): 3,190
24’’ Behind (lbs): 2,750
TIRE SIZE
AG Front: 8.0 - 16.0
AG Rear: 14.9 - 24.0
Industrial Front: 10.0 - 16.5
Industrial Rear: 17.5L - 24.0
Turf Front: 27.0 - 10.5
Turf Rear: 44 x 18 - 20.0
EXTERIOR
Full Flat Floor: n/a
Deluxe Seat: n/a
Mud Shield, Foot Guard: Optional
Cup Holder: n/a
YANMAR YL605 LOADER SPECIFICATIONS
Maximum Lift Height (in): 113.0
Dump Clearance (in): 87.6
Maximum Height @ Reach (in): 16.0
Reach with Bucket on Ground (in): 74.0
Digging Depth (in): 7.5
Maximum Dump Angle (Degree): 45°
Maximum Rollback Angle (Degree): 40°
PERFORMANCE
Lift Capacity (Pivot Pin) (lbs): 2,500
Lift Capacity (500 mm Foward) (lbs): 1,795
Breakout Force (500 mm Foward) (lbs): 3,047
Bucket Capacity (cu. ft.): 10.9
STANDARD
Skid Steer Quick Attach: n/a
Bucket Level Indicator: n/a
72’’ Bucket: n/a
Grille Guard: n/a
OPTIONAL
3rd Function Valve
YANMAR B85 BACKHOE SPECIFICATIONS
Maximum Digging Depth (in): 103.0
Reach from Swing Pivot (in): 141.0
Transportation Height (in): 94.0
Transportation Length (in): 55.0
Bucket Digging Force (lbs): 4,600
Dipperstick Digging Force (lbs): 2,940
Digging Depth 2’ Flat Bottom (in): 102.0
Loading Height (in): 83.0
Loading Reach (in): 61.0
ENGINE
Model: 4TNV98C-XKITL
Engine (hp): 58.9
PTO (hp): 47.0
Fuel Tank Capacity (gal): 13.2
Engine Displacement (ci): 202.4
Fuel: Diesel
Dual Air Cleaner Element: n/a
Large Volume Water Separator: n/a
One-Piece Full Open Hood: n/a
DIMENSIONS
Minimum Ground Clearance (in): 15.5
Wheelbase (in); 77.5
Front Tread (in) (R1 Tires): 50
Minimum Rear Tread (in) (R1 Tires): 52
Maximum Rear Tread (in) (R1 Tires): 64
Rear Adjustment Width (in) (R1 Tires): 12
Turning Radius (Without Brakes) (in): (R1 Tires) 142
WEIGHT
ROPS (lbs): 4,158
TRANSMISSION
Main Clutch; Dry Single
Main Shift: Synchronized
Reverser: Synchronized
Number of Gears (F-R): F8 - R8
Maximum Traveling Speed (mph): (R1 Tires) 18.5
HYDRAULICS
Hitch Category (SAE Designation): Category 1 & 2
Lower Link Ends: Telescopic
Remote Control Valves Available: 1 Standard (2 Opt)
HYDRAULIC PUMP CAPACITY
Power Steering (gpm): 5.7
Implement (gpm): 10.2
Total (gpm): 15.9
POWER TAKE OFF
Speeds (rpm): 540/540E
Independent PTO: n/a
3-POINT LIFT CAPACITY
Lower-Link Standard (lbs): 3,190
24’’ Behind (lbs): 2,750
TIRE SIZE
AG Front: 210/95R16 (Radial)
AG Rear: 420/85R24 (Radial)
Industrial Front: 10.0 - 16.5
Industrial Rear: 16.9 - 24.0
Turf Front: 27.0 - 10.5
Turf Rear: 44 x 18 - 20.0
EXTERIOR
Full Flat Floor: n/a
Deluxe Seat: n/a
Mud Shield, Foot Guard: Optional
Cup Holder: n/a
YANMAR YL605 LOADER SPECIFICATIONS
Maximum Lift Height (in): 113.0
Loader Weight (lb): 1,212.5
Dump Clearance (in): 87.6
Maximum Height @ Reach (in): 16.0
Reach with Bucket on Ground (in): 74.0
Digging Depth (in): 7.5
Maximum Dump Angle (Degree): 45°
Maximum Rollback Angle (Degree): 40°
PERFORMANCE
Lift Capacity (Pivot Pin) (lbs): 2,500
Lift Capacity (500 mm Foward) (lbs): 1,795
Breakout Force (500 mm Foward) (lbs): 3,047
Bucket Capacity (cu. ft.): 10.9
STANDARD
Skid Steer Quick Attach: n/a
Bucket Level Indicator: n/a
72’’ Bucket: n/a
Grille Guard: n/a
OPTIONAL
3rd Function Valve
YANMAR B85 BACKHOE SPECIFICATIONS
Backhoe Weight (lb): 1,818.8
Maximum Digging Depth (in): 103.0
Reach from Swing Pivot (in): 141.0
Transportation Height (in): 94.0
Transportation Length (in): 55.0
Bucket Digging Force (lbs): 4,600
Dipperstick Digging Force (lbs): 2,940
Digging Depth 2’ Flat Bottom (in): 102.0
Loading Height (in): 83.0
Loading Reach (in): 61.0
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT347 includes an auto-throttle that enables you to control the engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together. No other compact tractor can boast the integrated hydraulic mechanical transmission (i-HMT) technology of the YANMAR YT347. The i-HMT creates the standard of operation for more versatile performance. No longer do you have to choose between an efficient, constant speed and flexible operation. With the YT347 and its innovative technology, you get both.
ENGINE
Model: 4TNV88C - Tier 4
Gross Power: 46 HP (34.3 kW)*
PTO Power at Working
Speed: 39.5 HP (29.1 kW)
PTO Power at Zero Speed: 36.4 HP (26.8 kW)
Rated RPM: 2,800 RPM
Total displacement: 133.5 cu. In. (2.189 L)
Aspiration: Naturally Aspirated
Cooling system: Liquid-cooled
Number of cylinders: 4
Battery: 650 CCA
Alternator: 12-55
CAPACITIES
Fuel tank: 12.7 gal. (48 L)
DRIVETRAIN
Transmission type: I-HMT(Integrated Hydro Mechanical Transmission)
Rear differential lock: Foot pedal engagement
2WD/4WD engagement: Selectable
Brakes: Mechanical wet disc
Reverser: Power shift
Number of ranges: 3 Range (Variable Speed))
Rear PTO/RPM: 540 RPM
HYDRAULICS
Pump capacity (steering) @
Rated RPM: 5.7 GPM (21.7 L/min)
Pump capacity (implement)
@ Rated: 10.1 GPM (38.3 L/min)
3-point lift capacity (std.): 3,307 lbf. (1,500 kgf)
3-point lift capacity at 24” (61 cm): 2,756 lbf. (1,250 kgf)
4-way loader control valve: Standard
Power steering: Fully Hydraulic
DIMENSIONS
Wheelbase (in): 75.9” (1,927 mm)
Overall length (with 3PH and R4 Tires): 130.9” (3,325 mm
Overall height (with R4 Tires):
95.7” (2,431mm) / 89.5” (2,274 mm)
Ground clearance (with R4 Tires): 12.8” (326mm)
Weight (with ROPS, R4
Tires, Full Fluid):
3,880 lbs. (1,760 kg) / 4,284 lbs. (1,943 kg)
TIRE SIZE
Front:
R1 - 8” - 16”
R3 27” x 10.5” - 15”
R4 10” - 16.5”
Rear:
R1 14.9” - 24”
R3 44” x 18” - 20”
R4 17.5” L - 24”
TRAVELING SPEEDS
Forward (with R1 Tires) : 0 - 18 mph (0 - 29 kmh)
Reverse (with R1 Tires): 0 - 18 mph (0 - 29 kmh)
YL610 LOADER
Maximum lift height (to bucket pivot pin): 113” (2,870 mm)
Dump Clearance (in): 88” (2,235 mm)
Digging depth at bucket level: 7.5” (190.5 mm)
Bucket width: 72” (1,829 mm)
Lift capacity at pivot pins: 2,500 lbs. (1,134 kg)
Breakout force 500 mm forward of the pivot pins: 3,047 lbs. (1,382 kg)
Breakout force at pivot pins: 3,969 lbs. (1,800 kg)
Raising time to full height w/o load: 4.6 sec.
Lowering time w/o load (power down): 3.1 sec.
Bucket dumping time: 1.6 sec.
Bucket rollback time: 2.8 sec
Bucket capacity: 10.9 cu. ft. (0.309 m3)
Grille guard: Standard
Tractor Length w/Loader: 15’ (4,572 mm)
Bucket Weight: 319 lbs. (145 kg)
Loader Weight w/Bucket: 1,096 lbs. (497 kg)
*YL610 Specifications based on YT359 R4 configuration
B90 BACKHOE
Digging depth (2’ flat bottom): 109” (2,769 mm)
Swing arc: 180°
Loading height (bucket at 60˚): 89” (2,261 mm)
Transport height (maximum): 97” (2,464 mm)
Bucket rotation: 180°
Stabilizer spread-up position: 66” (1,676 mm)
Stabilizer spread-down position: 100” (2,540 mm)
Bucket cylinder digging force: *5,070 lbf. (2,299 kgf)
Dipperstick cylinder digging force: *2,900 lbf. (1,315 kgf)
Operating Pressure :*2,500 PSI (17.2 MPa)
Ramp angle (w/industrial tires): 18°
Street pads: Option
Bucket options: Various 12” - 36” (200 - 400 mm)
Weight: 1,500 lbs. (680 kg)
Tractor Length w/Backhoe & Loader: 21’ (6,400 mm)
*Based on backhoe manufacturer's relief setting
WARRANTY COVERAGE FOR YOUR TRACTOR
Tractor (Private Individual Usage): 24 months or 2,000 hours
Power train (Engine and transmission
core components): 10 years or 3,000 hours
Attachments: 1-year limited warranty
When you need a tractor for bigger and tougher jobs, look no further than the Yanmar YT359. Comfortable and easy to operate, the YT359 uses advanced electronic controls and an integrated hydraulic mechanical transmission (i-HMT). No longer do you have to choose between an efficient, constant speed and flexible operation. The i-HMT creates the standard for performance versatility.
Our YT3 Series tractors are designed to make work easier for people of all skill levels. The YT359 includes an auto throttle that enables you to control the engine and travel speed with the accelerator/drive pedal. This makes operating the tractor like driving a car or truck with an automatic transmission car. A/B Mode lets you preset your maximum travel speed. An anti-stall feature keeps your engine running when you dig or lift a heavy load. There’s also cruise control to keep you moving efficiently when mowing or traveling for long stretches. YANMAR designs and builds the major components, engine, front axle, transmission, and final drive, to work together.
ENGINE
Model: 4TNV98C - Tier 4
Gross Power: 58.9 HP (43.9 kW)*
PTO Power at Working
Speed: 52.0 HP (38.3kW)
PTO Power at Zero Speed: 48.9 HP (36 kW)
Rated RPM: 2,500 RPM
Total displacement: 202.5 cu. In. (3.318 L)
Aspiration: Naturally Aspirated
Cooling system: Liquid-cooled
Number of cylinders: 4
Battery: 880 CCA
Alternator: 12-55
CAPACITIES
Fuel tank: 12.7 gal. (48 L)
DRIVETRAIN
Transmission type: I-HMT(Integrated Hydro Mechanical Transmission)
Rear differential lock: Foot pedal engagement
2WD/4WD engagement: Selectable
Brakes: Mechanical wet disc
Reverser: Power shift
Number of ranges: 3 Range (Variable Speed))
Rear PTO/RPM: 540 RPM
HYDRAULICS
Pump capacity (steering) @
Rated RPM: 5.3 GPM (20.1 L/min)
Pump capacity (implement)
@ Rated: 9.4 GPM (35.5 L/min)
3-point lift capacity (std.): 3,307 lbf. (1,500 kgf)
3-point lift capacity at 24” (61 cm): 2,756 lbf. (1,250 kgf)
4-way loader control valve: Standard
Power steering: Fully Hydraulic
DIMENSIONS
Wheelbase (in): 77.4” (1,967 mm)
Overall length (with 3PH and R4 Tires): 70.6” (1,793 mm)
Overall height (with R4 Tires): 132.1” (3,355 mm)
Ground clearance (with R4 Tires): 12.8” (326mm)
Weight (with ROPS, R4
Tires, Full Fluid):
4, 039 lbs. (1,832 kg) / 4,442 lbs. (2,015 kg)
TIRE SIZE
Front:
R1 8” - 16”
R3 27” x 10.5” - 15”
R4 10” - 16.5”
Rear:
R1 14.9” - 24”
R3 44” x 18” - 20”
R4 17.5” L - 24”
TRAVELING SPEEDS
Forward (with R1 Tires) : 0 - 18 mph (0 - 29 kmh)
Reverse (with R1 Tires): 0 - 18 mph (0 - 29 kmh)
YL610 LOADER
Maximum lift height (to bucket pivot pin): 113” (2,870 mm)
Dump Clearance (in): 88” (2,235 mm)
Digging depth at bucket level: 7.5” (190.5 mm)
Bucket width: 72” (1,829 mm)
Lift capacity at pivot pins: 2,500 lbs. (1,134 kg)
Breakout force 500 mm forward of the pivot pins: 3,047 lbs. (1,382 kg)
Breakout force at pivot pins: 3,969 lbs. (1,800 kg)
Raising time to full height w/o load: 4.6 sec.
Lowering time w/o load (power down): 3.1 sec.
Bucket dumping time: 1.6 sec.
Bucket rollback time: 2.8 sec
Bucket capacity: 10.9 cu. ft. (0.309 m3)
Grille guard: Standard
Tractor Length w/Loader: 15’ (4,572 mm)
Bucket Weight: 319 lbs. (145 kg)
Loader Weight w/Bucket: 1,096 lbs. (497 kg)
*YL610 Specifications based on YT359 R4 configuration
B90 BACKHOE
Digging depth (2’ flat bottom): 109” (2,769 mm)
Swing arc: 180°
Loading height (bucket at 60˚): 89” (2,261 mm)
Transport height (maximum): 97” (2,464 mm)
Bucket rotation: 180°
Stabilizer spread-up position: 66” (1,676 mm)
Stabilizer spread-down position: 100” (2,540 mm)
Bucket cylinder digging force: *5,070 lbf. (2,299 kgf)
Dipperstick cylinder digging force: *2,900 lbf. (1,315 kgf)
Operating Pressure :*2,500 PSI (17.2 MPa)
Ramp angle (w/industrial tires): 18°
Street pads: Option
Bucket options: Various 12” - 36” (200 - 400 mm)
Weight: 1,500 lbs. (680 kg)
Tractor Length w/Backhoe & Loader: 21’ (6,400 mm)
*Based on backhoe manufacturer's relief setting
WARRANTY COVERAGE FOR YOUR TRACTOR
Tractor (Private Individual Usage): 24 months or 2,000 hours
Power train (Engine and transmission
core components): 10 years or 3,000 hours
Attachments: 1-year limited warranty
In addition to tractor equipment sales, we can also service and repair your tractor at Patriot Tractor, Truck, & Equipment. This includes Rim Guard tire ballast to fill your tires on-site at your location as well as our mobile equipment light welding fabrication and related equipment services. Contact Patriot Tractor, Truck, & Equipment and we can come right to you to care for your tractor.
We also carry NAPA-guaranteed parts backed by a two-year/24-month warranty. Military, veteran, and first responder discounts are offered for labor and certain merchandise as determined by the manufacturer. This includes National Guard members, reservists, the Space Force, law enforcement, firefighters, and those working in COVID-19 roles. Bring your ID card, DD214, or appropriate credentials to qualify.
Call or text today to schedule service - we will typically beat most competitors' written estimates. Our team is dedicated to providing you with the best deal on tractor sales in Lebanon, ME and surrounding areas.
CHOOSE A LOCAL, VERIFIED, VETERAN-OWNED BUSINESS
Purchase Your New Tractor at Patriot Tractor, Truck, & Equipment
"Great team - knowledgeable, friendly, professional! Highly recommend. Our experience at Patriot Tractor has been exceptional across the board, from purchase/pricing to their service department to their customer service. Veteran owned and operated too! Thanks for everything Patriot Tractor!"
- Amy O via Google
Located in Somersworth, NH, Patriot Tractor, Truck, & Equipment LLC specializes in tractors, lawn mowers, and outdoor equipment repairs. Great financing options. Veteran-owned business. Pickup and delivery available. Visit us today.
Rockingham County, NH
Maine
York County, ME
New Hampshire
Somersworth, NH
Dover, NH
Merrimack County, NH
Massachusetts
Belknap County, NH
Strafford County, NH
Rochester, NH
and surrounding areas
Share On:
