TW17216DMN Tiller

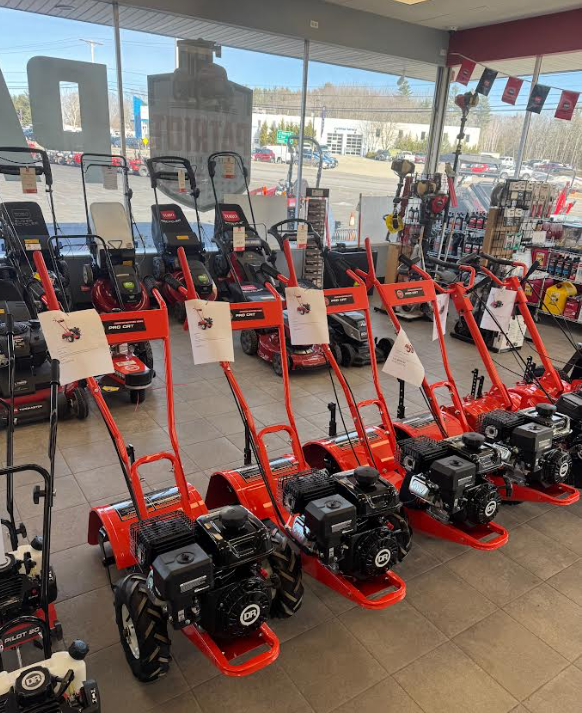

DR TILLER PRO CRT 209 CC MS
DR Rear Tine Rototiller
A powerful OHV engine and aggressive counter-rotating tines gives the DR Rear Tine Tiller the extra muscle you need for sod-busting, and makes all types of soil preparation fast and easy. Power driven wheels can be released with a pin for free-wheeling when needed to travel or maneuver the tiller.
Product Summary:
- Engine: 209 cc, 10.2 ft-lbs gross torque, OHV
- Counter Rotating Tines
- Tilling Width: 16"
- Wheels: 13" pneumatic
Warranty:
- Engine: 2 years residential, 90 days commercial
- Machine: 2 years residential, 90 days commercial
SPECS
| Dimensions | |
|---|---|
| Height | 48" |
| Length | 56" |
| Shipping Weight | 157 lbs |
| Weight | 145 lbs |
| Shipping Dimensions | 43" x 20" x 24" |
| Engine | |
|---|---|
| Air Filter | Paper |
| Cooling Methods | Air |
| Displacement | 209 cc |
| Engine Type | OHV |
| Lubrication | Splash |
| Make | DR1 |
| Number Of Cylinders | 1 |
| Oil Capacity | 18.5 oz |
| Oil Type | 30HD/10W-30 |
| RPM Speeds | 3700 |
| Starting Type | Recoil |
| Fuel_System | |
|---|---|
| Fuel Capacity | 3.6 qts |
| General | |
|---|---|
| Assembly | Some assembly needed |
| Transmission | Geared |
| Wheels_Tires | |
|---|---|
| Number of Tires | 2 |
| Tire Size | 13" x 5" |
| Warranty | |
|---|---|
| Engine Warranty | 2 yrs residential use, 90 days commercial |
| Machine Warranty | 2 yrs residential use, 90 days commercial |
