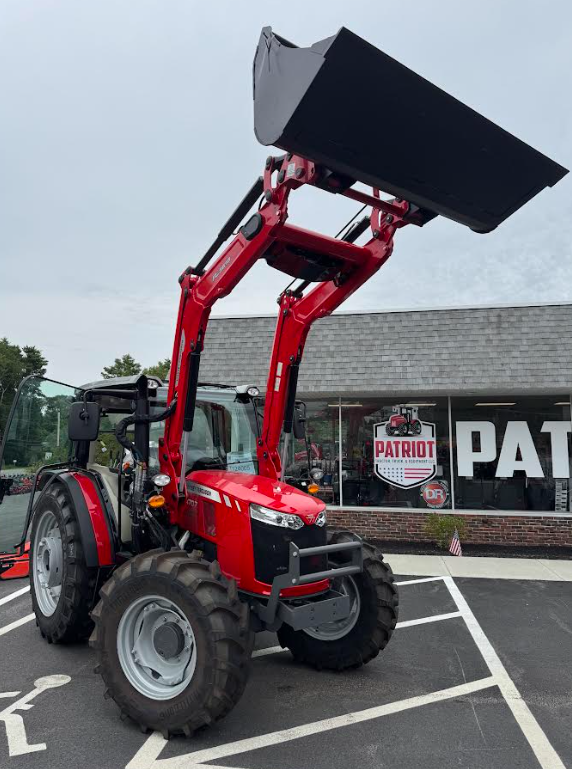

2026 MASSEY FERGUSON 4707 CAB DELUXE GLOBAL SERIES , 75 HP TURBOCHARGED DIESEL UTILITY TRACTOR, DYNA-2 24X24 POWER SHUTTLE, SUPER CREEPER GEAR, SPEED MATCHING, FL3615 SELF LEVELING LOADER, 84" SQQA BUCKET
2026 MASSEY FERGUSON 4707 CAB DELUXE GLOBAL SERIES , 75 HP TURBOCHARGED DIESEL UTILITY TRACTOR, DYNA-2 24X24 POWER SHUTTLE, SUPER CREEPER GEAR, SPEED MATCHING, FL3615 SELF LEVELING LOADER, 84" SQQA BUCKET
$72,900 CASH OR PAYMENTS AS LOW AS $1,074/ 84 MOs!
TRACTOR FEATURES
ENGINE SYSTEM
• AGCO Power 33AWIC 3 Cylinder (Turbocharged)
EPA Tier 4 Final and CARB Certified
MF4707 - Diesel Oxidation Catalyst (DOC), Exhaust Gas
Recirculation (EGR)
MF4708/4709/4710 - SCR Technology (Post-Combustion
DEF), Diesel Oxidation Catalyst (DOC)
• Air Cleaner: Dual Element Dry Type
• Air Cleaner In take, Under Hood
• A-Pillar Exhaust with Heat Shield
• Cooling System: Anti freeze 50/50 Mix
• Cold Starting Aid: In take Heater
HORSE POWER
(Max Engine @ 2000 RPM; Rated Engine & PTO @ 2200 RPM)
MF4707 Deluxe Powershuttle:
75 Max Engine HP, 70 En gine HP, 57 PTO HP
MF4708 Deluxe Powershuttle:
85 Max Engine HP, 80 En gine HP, 67 PTO HP
MF4709 Deluxe Powershuttle:
95 Max Engine HP, 90 En gine HP, 77 PTO HP
MF4710 Deluxe Powershuttle:
100 Max Engine HP, 100 Engine HP, 87 PTO HP
FRONT AXLE
• 2wd: Ad just able
• 4wd: Center Driveline, Open Differential, Standard
Hydraulically Actuated Differential Lock
POWERTRAIN
• Transmission:
2wd:
18 mph (30 kph) 12x12 Transmission with Power Shuttle
(6 Gears, 2 Ranges with Declutch on Main Gear Lever)
4wd:
25 mph (40 kph) 12x12 Transmission with Power Shuttle
(6 Gears, 2 Ranges with Declutch on Main Gear Lever)
• Rear Axle: Inboard Planetary Final Drives, with Hydra-Lock
Differential Lock, Flanged Rear Axle
• Brakes: Independent Oil Immersed Wet Disc Brakes with
In de pendent Foot Pedal Operation
Hook and Lever Parking Brake
• PTO: Independent 540/540E RPM, External Control with
6 Spline Non-Flanged Shaft (1-3/8 In. Diameter),
Independent Wet Disc Clutch, Electro-hydraulic
Engagement
HY DRAU LIC SYS TEM
• 2 Mechanically Controlled Spool Valves
(1 x DA KO FL + 1 x DA KO FL)
• Implement System:
Open Center System, Engine Driven Gear Pump
17.1 GPM (65 LPM) Flow
Optional Cable-controlled Loader Joystick
with Mid Valves and 3rd Function Ready Buttons
• Rear Linkage:
ASAE Category II with Telescopic Ball Ends
Lift Capacity at 24": 4850 LBS (2200 KG)
2 Adjustable Rear Linkage Turnbuckles
• Standard Telescopic Stabilizers
• Swing Straight Drawbar with 350/400/500mm Positions,
ELEC TRI CAL
• 12 Volt DC, Negative Ground
• In take Air Pre Heater
• High Capacity Wet Charge, Maintenance Free SAE 720 CCA
Battery
• 80 AMP Alternator
• Ignition: Key with Safety Start
• Keyed Engine Shut off
• Lighting: 4 Head lights, 2 Rear Marker Light Assemblies
• Mid Mounted Work Lights
• Rear Brake Lights
• Standard 1 Rear Work Light
• 7 Pin ASAE Out let Socket
• 30 Amp Auxiliary Electrical Socket
INSTRUMENTS
• Digital & Analog Instrument Panel with Performance Monitor
• Analog Engine Tachometer
• Analog Fuel Gauge
• Analog Engine Temperature
• Digital Transmission Display
• Digital Hour Meter
• Operation and Ser vice Lights
OPERATOR ENVIRONMENT (CAB MODELS)
• Standard Cab Roof, HVAC with Manual Controls, 2 Low
Mounted Doors, Antenna & Speakers
• 2 Front and 2 Rear Roof Mounted Work Lights
• Pull-down Sun Shade
• Lever Controlled 3-Point Linkage with Draft Control
• Rubber Floor Mat
• Telescopic Large Side Mirrors
• Internal Mirror
• Dual Adjustment Steering Column (Tilting and Telescopic)
• Mechanical Swiveling Seat with Armrests
• Retractable Seat Belt
• Instructor's Seat with Seatbelt
• Cup Holder
• Pendant Style (Suspended) Foot Pedals
• Hand Rails
• Hand and Foot Throttle
• Left Side and Right Side Foot Step Entry
• External 3-Point Lift Control on Left and Right Hand Fenders
• Rear Wiper/Washer
OTHER STANDARD FEATURES
• Fuel Tank Under Platform, Ground Fill
Fuel Capacity: 27.7 Gallons (105 Liters)
• One-Piece Tilting Hood
• Rear Fender Side Extensions - 100mm
• Fuel Tank Guard
• Tool Box
• SMV Sign
LOADER FEATURES
MF 4700 CAB
FL.3615 Mechanical Self Leveling
• 139.8 in. (3550mm) Max Lift Height at Pivot Pins
• 3,020 lb. (1370kg) Lift Capacity to Max Lift Height at
Pivot Pins
• 3,420 lb. (1550kg) Lift Capacity to Max Lift Height,
31.5 in. (800mm) For ward of Pivot Pins
• 3,400 lb. (1540kg) Lift Capacity to 59 in. (150mm) Lift
Height at Pivot Pins
• 3,460 lb. (1570kg) Lift Capacity to 59 in. (150mm) Lift
Height, 31.5 in. (800mm) Forward of Pivot Pins
• Construction
>Welded C Section Loader Beams with Internally
Routed Hydraulic Hoses for Neat Concealment
and Protection
>Tough and Durable Powder Coat Finish Ensuring
Long Life
• Lock and Go System
>Simple 5-Step Process for Attachment/Detachment
Requiring No Tools and Rigid Support Legs
• Easy and Fast Hydraulic Connection
>Connection of the Tractor and Loader is Made Easy
by Compact De sign of Flat Face Couplings
>For Faster Hydraulic Connection, Simple Action
Multi-couplers are Available
• Soft-Drive
>Shock Absorption System that Reduces Stresses on
the Loader, Tractor, as Well as the Operator
>Hidden and Protected inside the Cross Tube,
Soft-Drive can be Electronically Activated When you
Need It.
Model Number: MF4707 QQ Number: QQ-1063161 Invoice Number: 92354290 Dealership Name: Patriot Tractor, Truck &
Equipment LLC
Model Year: 2026 Serial Number: AGCMC580ETB124005 Order Number: 1963592 Location: Somersworth (325441)
