MF 4700 Series Utility Tractors (Platform & Cab)
Engine System
- Engine: AGCO Power 33AWIC 3-Cylinder Turbocharged
- EPA Tier 4 Final and CARB Certified
- MF4707: DOC and EGR technology
- MF4708 / MF4709 / MF4710: SCR (DEF) and DOC technology
- Features: Dual element dry air cleaner, under-hood intake, cold starting aid (intake heater), vertical exhaust (Platform) or A-pillar exhaust (Cab).
Horsepower Performance
(Max Engine @ 2000 RPM; Rated Engine & PTO @ 2200 RPM)
- MF4707: 75 Max HP | 70 Engine HP | 58 PTO HP
- MF4708: 85 Max HP | 80 Engine HP | 67 PTO HP
- MF4709: 95 Max HP | 90 Engine HP | 77 PTO HP
- MF4710: 100 Max HP | 99-100 Engine HP | 87 PTO HP
Powertrain & Axles
- Transmission: 12x12 PowerShuttle (6 Gears, 2 Ranges) with Declutch button on main lever.
- Speed: 18 mph (2WD) / 25 mph (4WD)
- Axles: Adjustable 2WD or Center Driveline 4WD with HydraLock Differential Lock.
- Brakes: Independent Oil-Immersed Wet Disc; Hook and Lever Parking Brake.
- PTO: Independent 540/540E RPM; Electro-hydraulic engagement.
Hydraulic System
- Implement System: Open Center, Engine-Driven Gear Pump.
- Flow Rate: 17.1 GPM (65 LPM).
- Rear Linkage: ASAE Category II with Telescopic Ball Ends.
- Lift Capacity: 4,850 lbs (2200 kg) @ 24" behind pins.
- Valves: 2 Mechanically Controlled Spool Valves standard.
Operator Environment (Platform Models)
- Platform: Semi-Flat Floor with Rubber Mat and Pendant Style Pedals.
- Controls: Lever-controlled 3-Point Linkage with Draft Control; Tilt Steering.
- Seat: Mechanical Spring Suspension with Armrests and Retractable Belt.
- Safety: 2-Post Folding ROPS; Hand Rail with Glass Heat Shields.
- Fuel: 27.7 Gallon (105L) tank under platform with ground fill.
Loader Specifications
- MF 931X (NSL): 136" Max Height | 3,420 lb Lift Capacity (Pivot Pins).
- FL.3522 (NSL): 139.8" Max Height | 4,410 lb Lift Capacity (Pivot Pins).
- FL.3615 (MSL): 139.8" Max Height | 3,020 lb Lift Capacity (Pivot Pins).
- Features: Internally routed hoses, SoftDrive Suspension, and Quick Detaching "Lock and Go" system.
Specific Unit Details (Per Invoice)

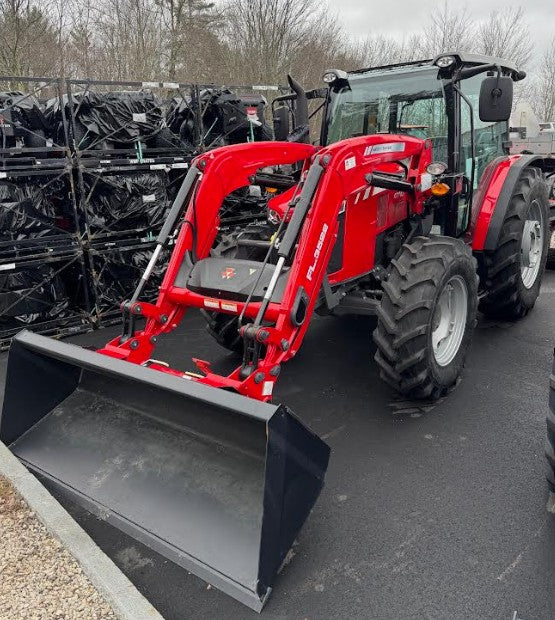

- Model: MF4710 (2024 Model Year)
- Dealership: Patriot Tractor, Truck & Equipment LLC - Somersworth, NH
- Serial Number: AGCMC490CRC001947
