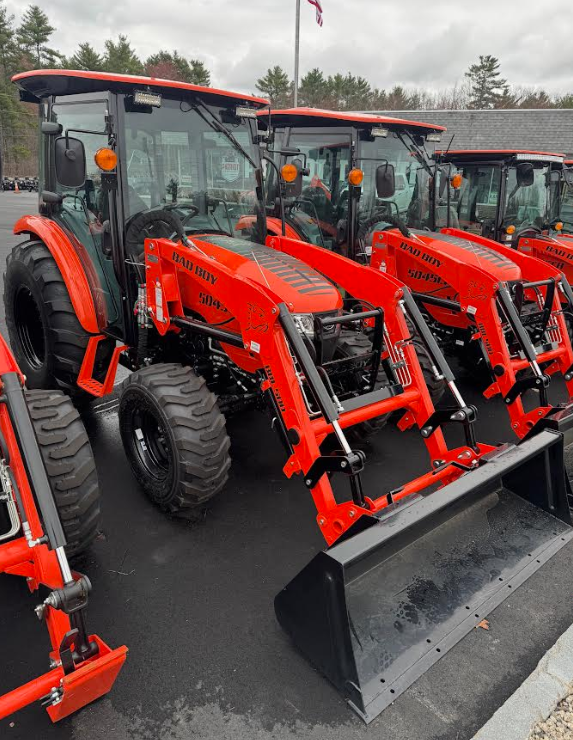

Bad Boy 5045CH Tractor Specs

The 5045CH is one of the heavy hitters in the Bad Boy 50-Series, designed for those who need high lifting capacity and all-weather comfort. It features a climate-controlled factory cab and a smooth, 4-range hydrostatic drive.

Engine

Model: A2300N2-UTR_4 Non-Turbo
Type: 4-Cylinder, Water-Cooled Diesel
Gross Horsepower: 48 HP
Rated Speed: 2600 RPM
Displacement: 139.5 cu. in.
Emissions System: DPF / DOC (No DEF required)
Fuel Capacity: 11.8 Gallons

Drivetrain & Transmission

Transmission Type: Hydrostatic (HST)
Number of Ranges: 4-Range
Drive System: Selectable 2WD/4WD with Differential Lock
Brakes: Wet Multi-Disc
Steering: Hydrostatic Power Steering

Hydraulics & PTO

Total Hydraulic Flow: 15.7 GPM
Implement Pump Capacity: 10.7 GPM
Steering Pump Capacity: 5.0 GPM

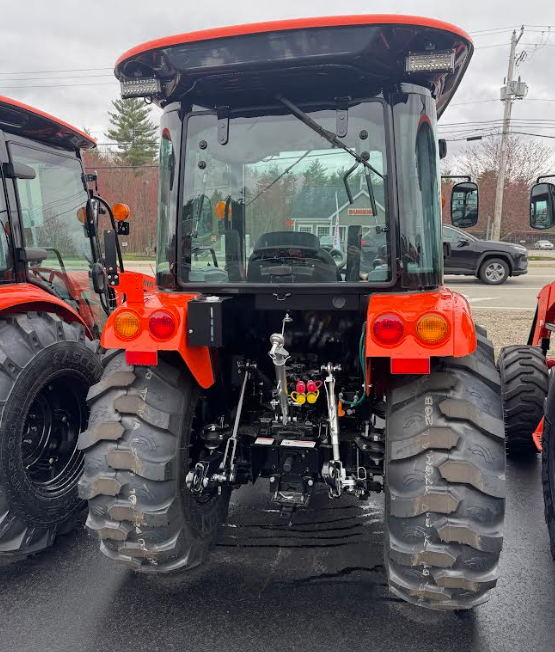

3-Point Hitch: Category 1
Hitch Lift Capacity: 3,306 lbs. (2,425 lbs. at 24" behind link ends)
PTO Type: Independent (540 / 540E)
PTO Horsepower: 38.4 HP

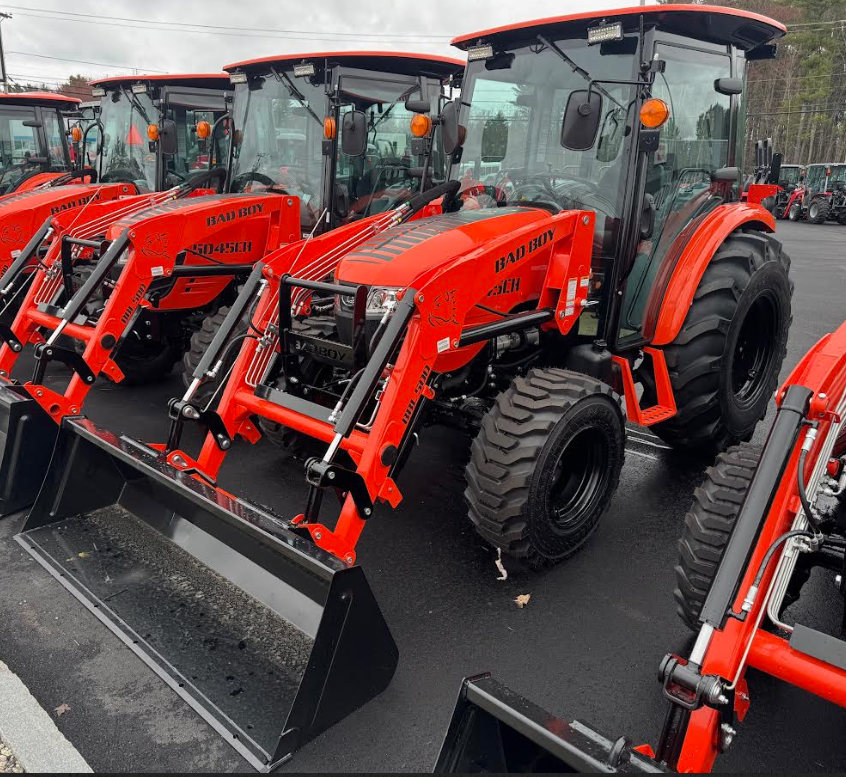

Loader Performance (Model BBL500)

Max Lift Height (at Pivot Pin): 106.6 in.
Lift Capacity (to Full Height): 2,700 lbs.
Breakout Force: 3,660 lbs.

Dimensions & Weight

Specification	Measurement
Overall Length (with 3-Point)	127.4 in.
Overall Width	64.9 in.
Height (to Top of Cab)	97.0 in.
Wheelbase	71.1 in.
Ground Clearance	15.5 in.
Total Weight (Approx.)	4,349 lbs.

Key Comfort Features

Climate-Controlled Cab: Factory-installed with Heat and A/C.
Premium Seating: Deluxe suspension seat with armrests (heated seat options available).
Ease of Use: Dual HST pedals for effortless forward/reverse transitions and cruise control for long stretches of work.
