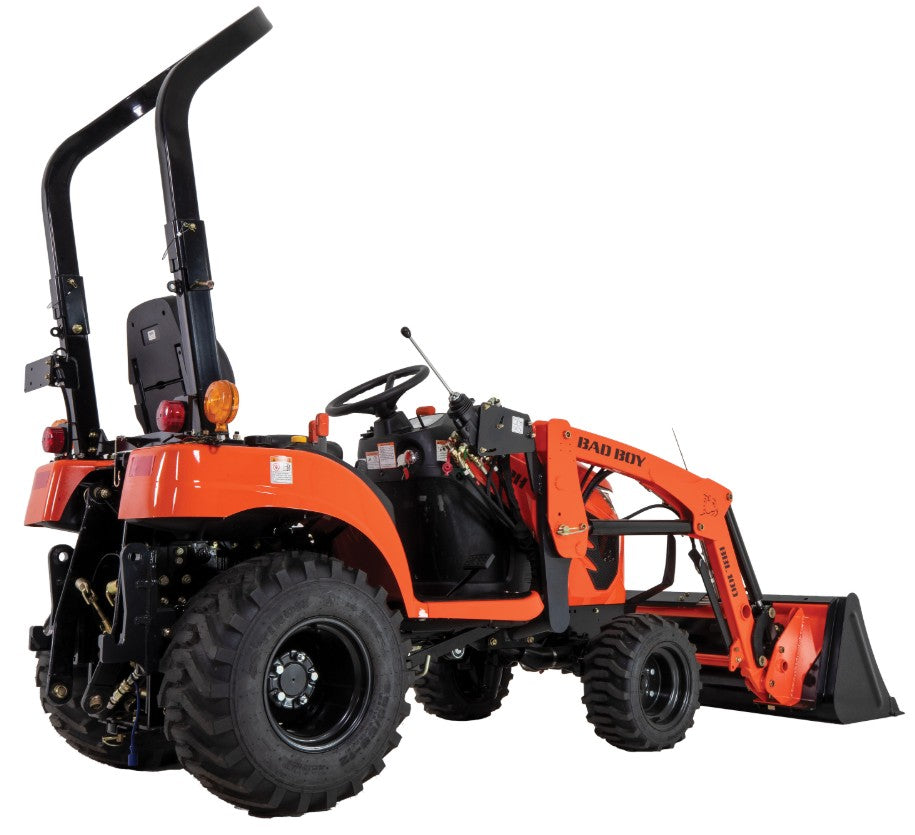

BAD BOY 1022HIL SUB-COMPACT TRACTOR- 22HP YANMAR DIESEL & BBL 100 LOADER W/ 48" SSQA BUCKET

Sub-Compact Tractor
$14,844.00
Sold by quote. Online checkout isn't available for this machine — use Request a Quote above and we'll get you pricing and availability.
Financing available
We service what we sell
Pickup & delivery


BAD BOY 1022HIL SUB-COMPACT TRACTOR- 22HP YANMAR  DIESEL & BBL 100 LOADER W/ 48" SSQA BUCKET

$14,844 CASH OR PAYMENTS AS LOW AS $206/ MO

Description:

The smallest entry in our sub-compact tractor lineup is perfect for the small property owner. The 1022H Sub-Compact Bad Boy Tractor boasts a 22 horsepower Yanmar diesel engine and over 600 pounds of lift capacity to allow you to stop breaking your back. Featuring four wheel drive with high and low range plus a locking differential and cruise control, this tiny powerhouse is built to handle almost anything you can throw at it. Our automatic hydro-static transmission allows even the novice tractor user to feel comfortable behind the controls and get right to work. With a standard skid steer style front end and Category 1 three-point hitch its quick and easy to attach a variety of implements including our front loader and backhoe.

1022 Tractor Specs:

1022 Engine

Engine
Yanmar, 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM
21.5
Displacement (in.)
60.6
Number Of Cylinders
3
Fuel Tank (gal.)
6.6

1022 Drivetrain

Transmission
HST
Number Of Speeds
2 Range
Clutch
Dry Single Plate
Brakes
Wet, Multi-Disc

1022 Hydraulics

Type
Power Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement)
6.3 (2.1+4.2) / 23.8 (8+15.8)
3-Point Hitch
Limited Cat 1
Rear Remote Valve
Optional (Up To 1)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point (lbs.)
679

1022 Dimensions

Overall Length
94.2"
Overall Width
44.5"
Overall Height
86.6"
Wheelbase
53.1"
Minimum Ground Clearance
8.3"
Weight
1,433 lbs.

1022 PTO

Type
Independent
Rear (Mid) PTO Speed
540
PTO HP
15.4

1022 Electrical

Battery
12 V, 425 CCA
Alternator
12 V, 40 A

1022 Wheels & Tires

IND (Front)
18X8.50-10
IND (Rear)
26X12-12

1022 Loader - Model BBL100

Standard Bucket Size (in.)
48
Maximum Lift Height (in.)
72.7
Dig Depth (in.)
4.0
Lift Capacity To Full Height At Pivot Pin (lbs.)
617
Breakout Force (lbs.)
1,253
Shipping Weight (lbs.)
438

1022 Backhoe - Model BBH100

Standard Bucket Size (in.)
12
Type
Subframe-Mounted, Quick Attach
Maximum Dig Depth (in.)
66
Dig Force Bucket (lbs.)
1,975
Shipping Weight (lbs.)
747
Type: Sub-Compact Tractor
SKU: BB1022HIL
Availability: In stock
