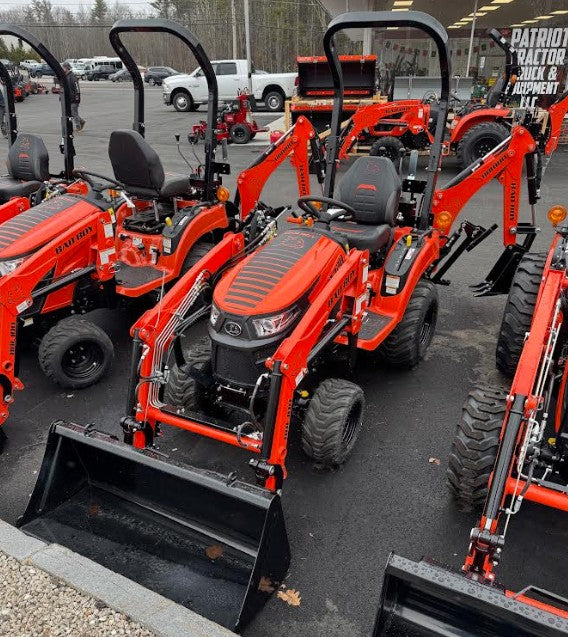

Bad Boy 1022HILB 22 HP Sub-Compact Tractor, Loader & Backhoe
Bad Boy
New

Bad Boy 1022HILB 22 HP Sub-Compact Tractor, Loader & Backhoe

Sub-Compact Tractor
Availability:In stock — 2 units available
$20,628.00
Cash Price

Financed purchases include lender fees, so financed totals will be higher than the cash price. See financing options

Sold by quote. To purchase or arrange pickup, use the Contact Us button above.
Pickup available at our Somersworth shop
Usually ready in 2–4 days
Financing available
We service what we sell
Pickup & delivery
Type: Sub-Compact Tractor
SKU: BB1022HILB

$20,628 CASH OR PAYMENTS AS LOW AS $291/MO!

Features:

  • 22 Horsepower
  • 617 lbs. Loader Lift Capacity At Pins
  • Hydro Max Transmission
  • Treadle Style HST Pedals
  • Reverse Mount Engine
  • 2 Range Transmission
  • Independent PTO
  • Power Steering
  • Selectable 4wd
  • Diffirential lock
  • 7 Year Powertrain Warranty

Specifications:

  • Engine:
  • Type: 3 Cylinder, Water-Cooled, Diesel
  • Engine HP @ RPM: 21.5 HP
  • Displacement: 60.6 cubic inches
  • Number of Cylinders: 3
  • Fuel Tank Capacity: 6.6 gallons
  • Drivetrain:
  • Transmission: HST (Hydrostatic Transmission)
  • Number of Speeds: 2 Range
  • Clutch: Dry Single Plate
  • Brakes: Wet, Multi-Disc
  • Hydraulics:
  • Type: Power Assisted Hydro-Static
  • Total Hydraulic Flow (Power Steering + Implement):
  • 6.3 GPM (2.1 + 4.2)
  • 23.8 GPM (8 + 15.8)
  • 3-Point Hitch: Limited Category 1
  • Rear Remote Valve: Optional (Up to 1)
  • 3-Point Hitch Lift Capacity @ 24" Behind Lift Point: 679 lbs
  • Dimensions:
  • Overall Length: 94.2 inches
  • Overall Width: 44.5 inches
  • Overall Height: 86.6 inches
  • Wheelbase: 53.1 inches
  • Minimum Ground Clearance: 8.3 inches
  • Weight: 1,433 lbs
  • PTO (Power Take-Off):
  • Type: Independent
  • Rear (Mid) PTO Speed: 540 RPM
  • PTO HP: 15.4 HP
  • Electrical:
  • Battery: 12 V, 500 CCA
  • Alternator: 12 V, 40 A
  • Wheels & Tires:
  • Front Tires: 18x8.50-10 (IND)
  • Rear Tires: 26x12-12 (IND)
  • Loader - Model BBL100:
  • Standard Bucket Size: 48 inches
  • Maximum Lift Height: 72.7 inches
  • Dig Depth: 4.0 inches
  • Lift Capacity to Full Height at Pivot Pin: 617 lbs
  • Breakout Force: 1,253 lbs
  • Shipping Weight: 438 lbs
  • Backhoe - Model BBH100:
  • Standard Bucket Size: 12 inches
  • Type: Subframe-Mounted, Quick Attach
  • Maximum Dig Depth: 66 inches
  • Dig Force (Bucket): 1,975 lbs
  • Shipping Weight: 747 lbs
