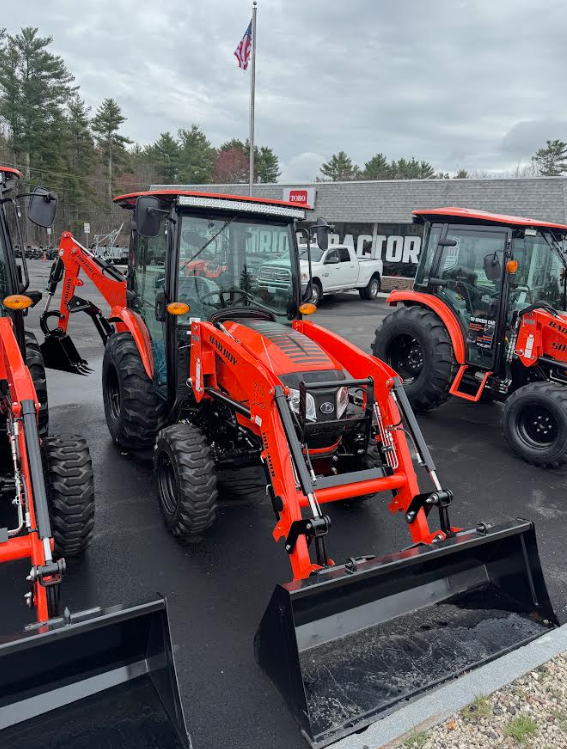

BAD BOY 4035CHILB HVAC COMPACT CABBED TRACTOR / 35 HP DIESEL / LOADER BBL400 / BACKHOE BBH400 / 62" SSQA BUCKET

Compact Tractor

$40,260.00

Sold by quote. Online checkout isn't available for this machine — use Request a Quote above and we'll get you pricing and availability.

Pickup available at our Somersworth shop

Usually ready in 2–4 days

Patriot Tractor

Usually ready in 2-4 days

Financing available

We service what we sell

Pickup & delivery

Type: Compact Tractor

SKU: BB4035CHILB

Availability:In stock — 4 units available

BAD BOY 4035CHILB HVAC COMPACT CABBED TRACTOR / 35 HP DIESEL / LOADER BBL400 / BACKHOE BBH400 / 62" SSQA BUCKET

$40,260 CASH OR PAYMENTS AS LOW AS $576/ MO!

Features:

35 Horse Power
2,200 lbs. Loader Lift Capacity At Pins
Metal Hood and Fenders
Cast Iron Axles
Factory Cab with Heat and Air Available
Additional Features:
Easy to adjust pin style stablizers
Cruise Control
Hydro Max Transmission
Dual HST Pedals
3 Range Transmission
Independent PTO
Power Steering
Selectable 4wd
Differential Lock
6 Year Powertrain Warranty

Specifications:

Engine
Engine Type: 3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM: 35 HP
Displacement: 104.5 cubic inches
Number of Cylinders: 3
Fuel Tank Capacity: 7.1 gallons
Drivetrain
Transmission: HST (Hydrostatic Transmission)
Number of Speeds: 3 Range
Clutch: No
Brakes: Wet, Multi-Disc Brakes
Hydraulics
Hydraulic Type: Hydro-Static Power Steering
Total Hydraulic Flow: 12.6 GPM (4.4 GPM for Power Steering, 8.2 GPM for Implement)
3-Point Hitch: Category 1 (CAT 1)
Rear Remote Valve: Optional (Up to 2)
3-Point Hitch Lift Capacity (24" Behind Lift Point): 1,100 lbs.
Dimensions
Overall Length: 134.88 inches
Overall Width:
4035H - 56.7 inches
4035CH - 55.6 inches
Overall Height: 104.06 inches
Wheelbase: 65.7 inches
Minimum Ground Clearance: 13.1 inches
Weight:
4035H: 3,164 lbs
4035CH: 3,551 lbs
PTO
PTO Type: Independent
Rear (Mid) PTO Speed: 540 RPM
PTO HP: 29.5 HP
Electrical
Battery: 12 V, 540 CCA
Alternator: 12 V, 50 A
Wheels & Tires
Front Tires: 28x8.50-15
Rear Tires: 43x16.00-20
4035 Attachments
Loader - Model BBL400
Standard Bucket Size: 62 inches
Maximum Lift Height: 104 inches
Dig Depth: 1.8 inches
Lift Capacity to Full Height at Pivot Pin: 2,200 lbs
Breakout Force: 3,660 lbs
Shipping Weight: 1,007 lbs
Backhoe - Model BBH400
Standard Bucket Size: 16 inches
Type: Subframe-Mounted, Quick Attach
Maximum Dig Depth: 92.2 inches
Dig Force (Bucket): 4,380 lbs
Shipping Weight: 1,270 lbs
