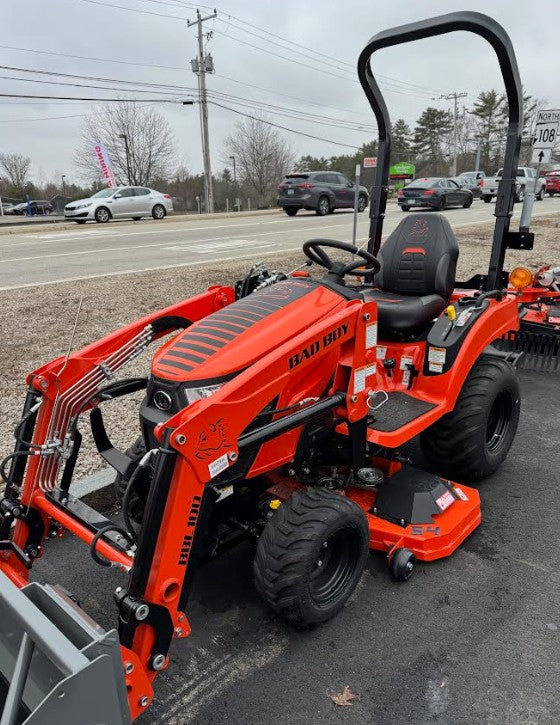

BAD BOY 1022HILM SUB-COMPACT DIESEL TRACTOR, 22 HP YANMAR, 2-RANGE HYDROSTATIC W/ BBL100 LOADER & 54" DRIVE-OVER MID-MOWER
Bad Boy
New

BAD BOY 1022HILM SUB-COMPACT DIESEL TRACTOR, 22 HP YANMAR, 2-RANGE HYDROSTATIC W/ BBL100 LOADER & 54" DRIVE-OVER MID-MOWER

Sub-Compact Tractor
$17,366.00
Sold by quote. Online checkout isn't available for this machine — use Request a Quote above and we'll get you pricing and availability.
Pickup available at our Somersworth shop
Usually ready in 2–4 days
Patriot Tractor
Usually ready in 2-4 days
Financing available
We service what we sell
Pickup & delivery
Type: Sub-Compact Tractor
SKU: BB1022HILM
Availability:In stock — 1 unit available

BAD BOY 1022HILM SUB-COMPACT DIESEL TRACTOR, 22 HP YANMAR, 2-RANGE HYDROSTATIC W/ BBL100 LOADER & 54" DRIVE-OVER MID-MOWER

$17,366 CASH OR PAYMENTS AS LOW AS $243/ MO!

Description:

Features:

The Perfect Fit

The 1022 can get down and dirty with the best of them. This entry to our subcompact tractor lineup is perfect for small property owners. Get where other tractors can't and help you work with an attitude.

Power and Performance

The clean, Tier 4 Certified quiet and powerful diesel engine boasts 22 horsepower. This tractor offers over 600 pounds of lift capacity, while the hydrostatic power steering makes getting around easy and effortless.

Get Optional Mid-Mount Mower Deck

We're bringing the legendary mower deck strength found on our commercial-grade mowers to the 1022. The easy-to-mount, drive-over deck features a width of 54˝ and cutting height adjustment from 1˝ to 4˝ for a precise mowing performance.

Specifications:

Engine

  • Type: 3-cylinder, water-cooled, diesel
  • Horsepower: 21.5 HP
  • Displacement: 60.6 in³
  • Cylinders: 3
  • Fuel Tank: 6.6 gal

Drivetrain

  • Transmission: HST (Hydrostatic)
  • Speeds: 2-range
  • Clutch: Dry single plate
  • Brakes: Wet, multi-disc

Hydraulics

  • Type: Power-assisted hydrostatic
  • Hydraulic Flow: 6.3 gpm (2.1 steering + 4.2 implement)
  • 3-Point Hitch: Limited Cat 1
  • Rear Remote Valve: Optional (up to 1)
  • 3-Point Lift Capacity (24" behind): 679 lbs

Dimensions

  • Length: 94.2 in
  • Width: 44.5 in
  • Height: 86.6 in
  • Wheelbase: 53.1 in
  • Ground Clearance: 8.3 in
  • Weight: 1,433 lbs

PTO

  • Type: Independent
  • PTO Speed: 540 rpm (rear/mid)
  • PTO HP: 15.4

Electrical

  • Battery: 12 V, 500 CCA
  • Alternator: 12 V, 40 A

Wheels & Tires (Industrial)

  • Front: 18x8.50-10
  • Rear: 26x12-12

Loader (Model BBL100)

  • Bucket Size: 48 in
  • Max Lift Height: 72.7 in
  • Dig Depth: 4.0 in
  • Lift Capacity @ Pivot Pin: 617 lbs
  • Breakout Force: 1,253 lbs
  • Shipping Weight: 438 lbs

Backhoe (Model BBH100)

  • Bucket Size: 12 in
  • Mounting: Subframe, quick attach
  • Max Dig Depth: 66 in
  • Bucket Dig Force: 1,975 lbs
  • Shipping Weight: 747 lbs
