AT59036KEN Brush Cutter Lawnmower

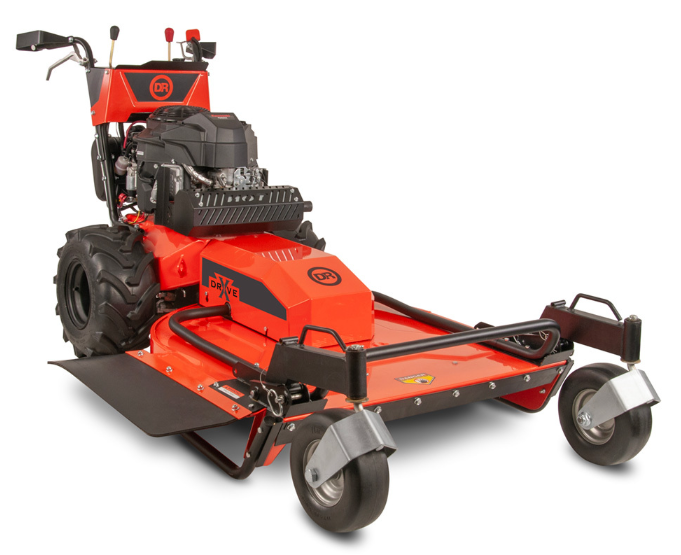

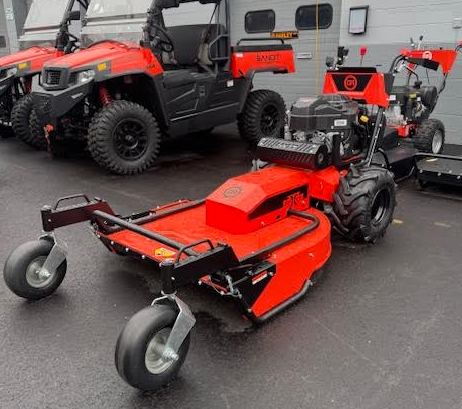

DR Field and Brush Mower XD36 22HP Commercial
OVERVIEW
XD Commercial Series: 36” Cut & Kawasaki Engine
DR®’s XD Series Field & Brush Mowers are built to meet the demands of commercial users: frequent use, long runtimes, daily transport, and ease of maintenance.
The XD36 cuts an impressive 36” wide and features a proven Kawasaki FS651V engine that provides the power you need to mow all day long. Independent hydrostatic wheel drives and front castors ensure ease of handling without fatigue, built in hand guards protect the operator while mowing down tough brush, and trailering is fast and easy with integrated tie-down hooks.
Product Summary:
- 22 HP Kawasaki FS651V Engine, Electric Start
- Hydrostatic Drive: 2 independent wheel drives for fingertip control
- Variable speed drive, forward and reverse with zero-turn radius ability
- 36" cutting deck
- Pivoting deck follows contours of ground
- Oil pump for superior performance on hills
- Handguards protect operator’s hands from brush and briars
- 11" foldable front caster wheels
- See Features and Specs Tabs for more product details
Warranty Coverage
- Engine: 3 years residential; 3 years commercial
-
Machine: 2 years residential; 2 years commercial
SPECS
| Cutting | |
|---|---|
| Blade Tip Speed | 18,864 FPM |
| Cutting Capacity | 6’ Grass, 8’ Weeds, 3” Saplings |
| Cutting Height | 4.25" |
| Cutting Width | 36" |
| Discharge Location | Side Discharge |
| Dimensions | |
|---|---|
| Handlebar Height | 40.5" |
| Height | 43" |
| Length | 92" |
| Shipping Weight | 647 lbs |
| Weight | 505 lbs |
| Width | 48" |
| Shipping Dimensions | 49"W x 50"H x 78"L |
| Engine | |
|---|---|
| Air Filter | Dual-Element |
| Cooling Methods | Air Cooled |
| Displacement | 726cc |
| Engine Type | OHV |
| Ft Lbs Torque | 39.3 ft-lbs |
| Horsepower | 22 HP |
| Lubrication | Full Pressure Pump w/Oil Filter |
| Make | Kawasaki |
| Model | FS651V |
| Number Of Cylinders | 2 |
| Oil Capacity | 67.2oz |
| Oil Filter | Yes |
| Oil Type | SAE 30W HD |
| Starting Type | Electric |
| Fuel_System | |
|---|---|
| Fuel Capacity | 2 gallon with Fuel Pump |
| Inline Fuel Filter | Yes |
| General | |
|---|---|
| Accepts Attachments | No |
| Assembly | Install Brush Deck & Caster Wheels |
| Speed | Reverse: 0mph - 1.9mph | Forward: 0mph - 4.0mph |
| Transmission | Hydro Gear ZT1800 |
| Wheels_Tires | |
|---|---|
| Casters | Two 11" foldable front caster wheels |
| Rear Tire Size | 18" x 8.50" |
| Tread | Directional Tread |
| Warranty | |
|---|---|
| Engine Warranty | 3 Year Residential, 3 Year Commercial |
| Machine Warranty | 2 Year Residential, 2 Year Commercial |
| Material | |
|---|---|
| Deck | 12GA w/7GA Reinforcements |
| Frame | 11GA w/7GA Reinforcements |
