Patriot Tractor
Usually ready in 2-4 days
VT15010TBN Trailer

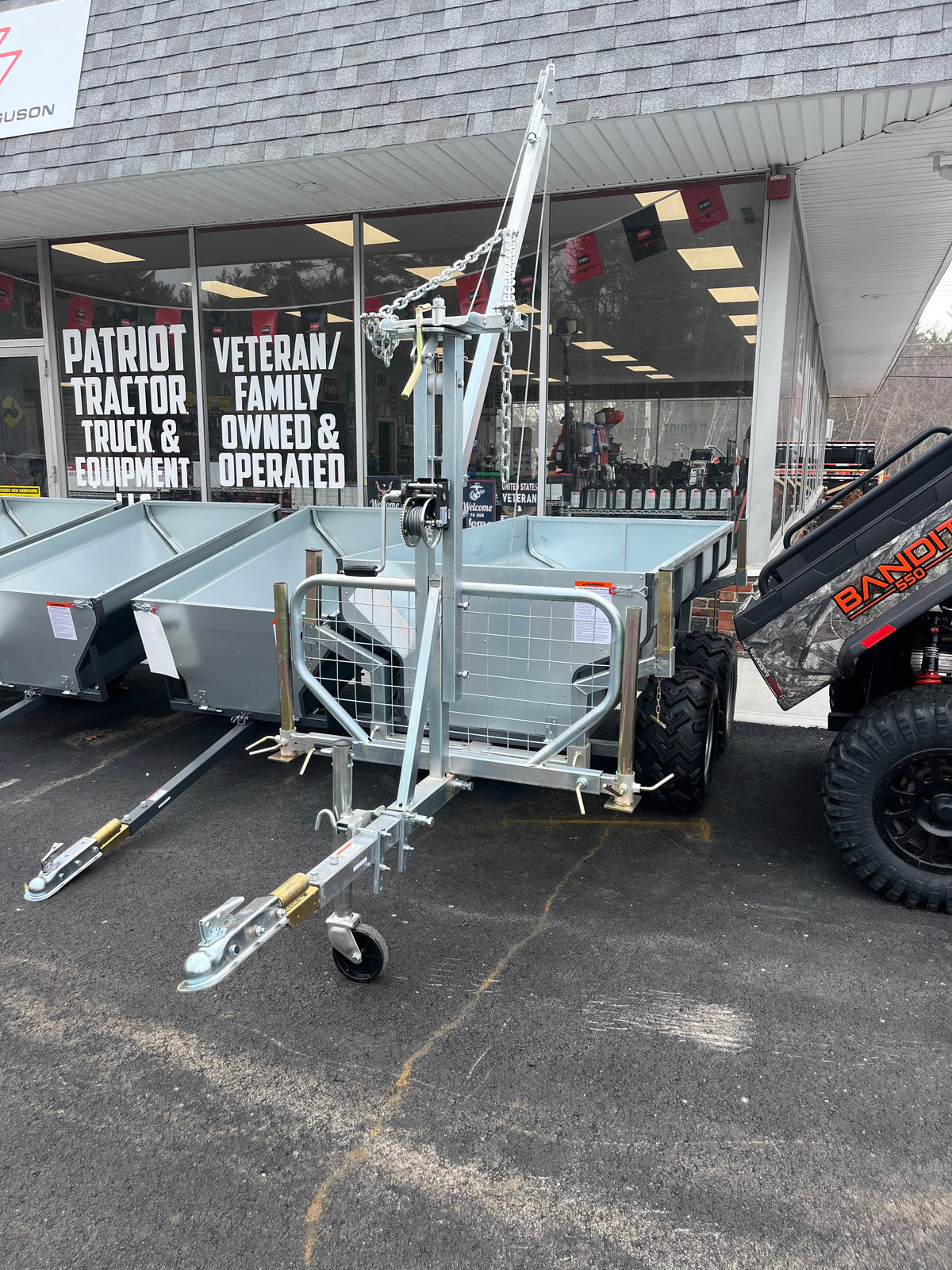

DR VERSA TRAILER PRO XL2000
OVERVIEW
The Ultimate Dumping Work Trailer!
The new DR® Versa-Trailer is unlike any utility trailer you've seen. There are hundreds of trailers out there that haul (that's the easy part!). The hard work is all in the lifting and dumping. And the 1-Ton Versa-Trailer uses a Boom-Lift to take the struggle out of lifting and dumping. Use the DR® Versa-Trailer with your ATV, UTV, or just about any other vehicle you're willing to use off-road. The 1-Ton Model:
- LIFTS up to 440 lbs.
- DUMPS up to 650 lbs.
- HAULS up to 2000 lbs.
SPECS
| Dimensions | |
|---|---|
| Height | 80" (w/ boom) |
| Length | 133.6" |
| Shipping Weight | 760 lbs |
| Weight | 703 lbs |
| Width | 50.7" |
| Shipping Dimensions | 82.5" L x 44.5" W x 26.5" H |
| Dumping | |
|---|---|
| Dump Angle | 35 degrees |
| Dumping Capacity | 650 lbs |
| General | |
|---|---|
| Assembly | Yes |
| Type | Versa-Trailer |
| Hauling | |
|---|---|
| Bed Dimensions | 79" L x 42" W x 24" H |
| Bed Volume | 31.25 cu ft |
| Dump Angle | 35 degrees |
| Dumping Capacity | 650 lbs |
| Hauling Capacity | 2000 lbs |
| Loading | |
|---|---|
| Boom Angle Positions | 23 degrees left or right; 45 degrees left or right |
| Bucket Rotation | 45 degrees left or right |
| Cable Size | 7/32" x 25' |
| Crane Lifting Capacity | 440 lbs |
| Hook Size | 5/16"; 1" opening |
| Loading Height | 5/16" |
| Loading Reach | 1" opening |
| Wheels_Tires | |
|---|---|
| Number of Tires | 4 |
| Tire Size | 22" x 11" |
| Towing | |
|---|---|
| Hitch Type | Ball Hitch |
| Tongue Weight | 120 lbs |
| Tow Receiver Size | 2" |
| Towable | Yes |
