Patriot Tractor
Usually ready in 2-4 days

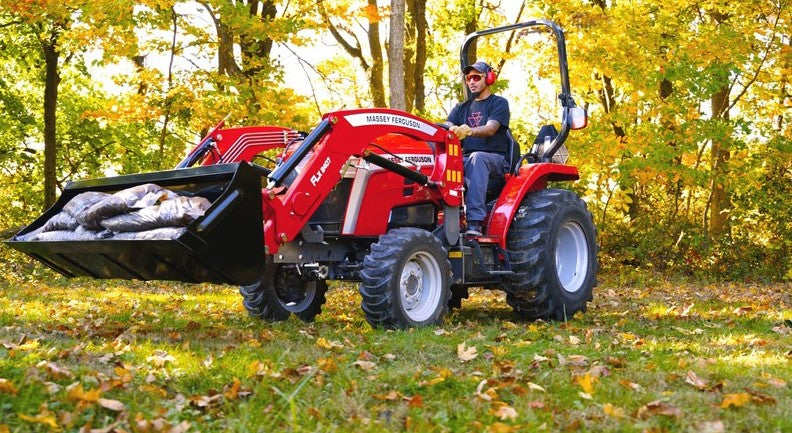

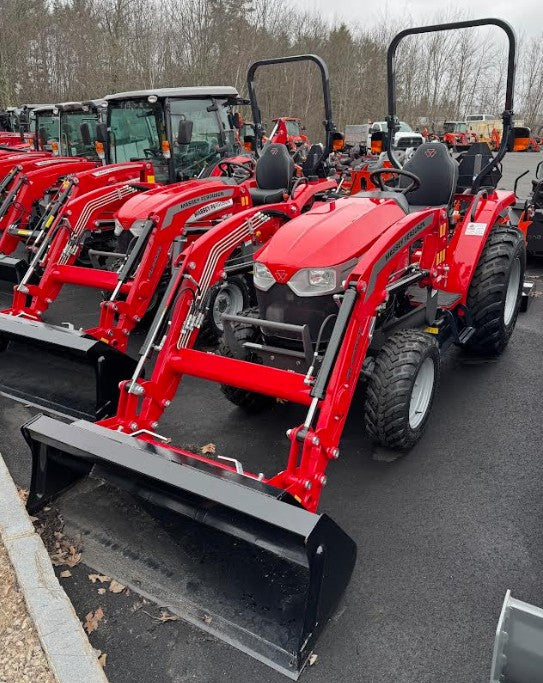

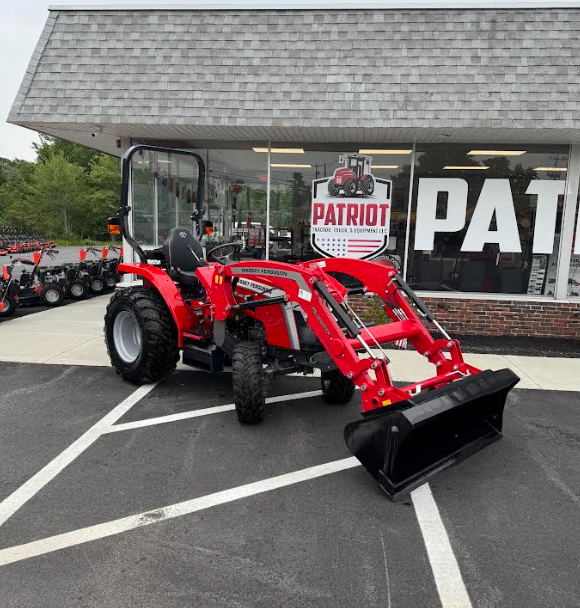

1E.25 Economy Compact Tractor Loader
Power Train
- Engine: 24.0 Rated HP Iseki 3-Cylinder Liquid-Cooled Diesel
- 1.49 L In-Direct Injection System
- Electronic Engine Control
- 20.4 PTO HP @ 2600 RPM (Gear)
- 19.2 PTO HP @ 2600 RPM (Hydrostatic)
- Emissions: Tier 4 Compliant, EPA and CARB Certified
- Air Cleaner: Single Stage, Dry Element Type
- Transmission Options:
- 8F / 8R Speeds Gear Transmission
- Hydrostatic: 3 Non-Synchronized Ranges
- Brakes: Sealed Wet Disc
- Differential Lock: Pedal Operated Rear
- PTO: 540 RPM Rear Independent (Gear) / Transmission Driven with Overrunning Clutch (HST)
- Note: Not Mid PTO Capable
Hydraulic System
- 3-Point Hitch: Cat I with Position Control
- Lift Capacity: 2205 lbs at Hitch Point / 1598 lbs @ 24 inches
- Pump: Dual Engine Driven Gear Pump
- Flow at Remotes: 7.3 GPM (27.6 LPM)
- Power Steering Pump: 3.6 GPM (13.8 LPM)
- Total Combined Flow: 10.9 GPM (41.4 LPM)
- Expansion: Supports up to 2 Rear Remote Valves (Optional)
FL.2407X Loader
- Design: One-Piece Main Frame with Tapered Arms and Single Cross Member
- Mounting: Quick-Attach Frame Mount with Pin Lock and Built-in Parking Stands
- Cylinders: (2) 2.0 inch Double Acting Lift / (2) 2.0 inch Double Acting Bucket
- Features: External Hydraulic Lines, Galvanized Steel Pins, Grille Guard Standard
- Tool Carrier: Skid Steer or Pin-Type Implement Attachments
- Max Lift Height: 94 inches at Pivot Pins
- Lift Capacity: 1,450 lbs to Full Height at Pivot Pins
- Breakout Force: 2,288 lbs at Pivot Pins
- Rated Pressure: 2,132 PSI
Instruments & Features
- Gauges: Tachometer, RPM, Fuel, and Hour Meter
- Warning Lights: Temperature, High Beam, Oil Pressure, PTO, Battery, Glow Plug, Flashers, and Regen
- Chassis: Steel Tilt-up Hood, Adjustable Spring Suspension Seat
- Safety: 2-Post Folding ROPS, Retractable Seat Belt, Turn Signals, Flashers, Tail Lights, SMV Emblem, 2 Headlights
- Note: 3-Point Mounted Backhoe installation voids warranty. Use the required Subframe Mounting Kit.
