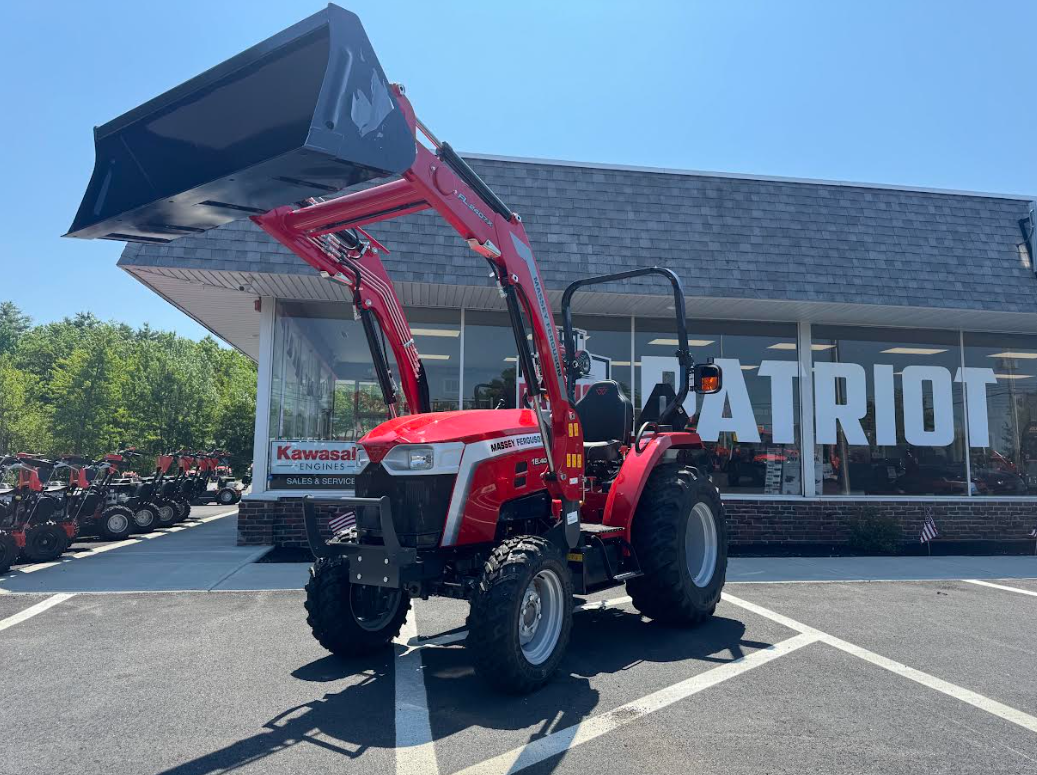

2026 Massey Ferguson 1E.40, 40 HP Turbocharged Compact Tractor, 3 Range HST, 60" Skid-Steer Bucket
Massey Ferguson MF1E.40, 40 HP Turbocharged Compact Tractor, 3 Range HST, 60" Skid-Steer Bucket
FEATURES:
IMPLEMENT FEATURES
POWER TRAIN
• Engine:
39.4 Gross HP Iseki 3-Cylinder Liquid-Cooled
Diesel
1.83 L Turbocharged, Common Rail Injection
System
Internal Exhaust Gas Recirculation (EGR),
Diesel Oxidation Catalyst (DOC),
Regenerating Diesel Particulate Filter (DPF),
Electronic Engine Control
33.5 PTO HP @ 2600 RPM - Gear
31.5 PTO HP @ 2600 RPM - Hydrostatic
Emission Standard Category: Tier 4 Final Compliant,
EPA and CARB Certified
• Single Stage, Dry Element Type Air Cleaner
• Transmission:
8F / 8R Speeds Gear Transmission
Hydrostatic: 3 Non-Synchronized Ranges
with Side by Side Pedals
• Sealed Wet Disc Brakes
• Pedal Operated Rear Differential Lock
• PTO:
Gear: Rear - 540 RPM Independent PTO
HST: Rear - 540 RPM Transmission Driven PTO
with Overrunning Clutch
Not Mid PTO Capable
HYDRAULIC SYSTEM
• 3-Point Hitch Cat I with Position Control
• Lift Capacity @ Hitch Point: 2205 lbs (1000 kg)
@ 24 inches: 1598 lbs (725 kg)
• Dual Engine Driven Gear Pump
• Flow at Remotes 7.6 GPM (28.9 LPM)
• Power Steering Pump 4.1 GPM (15.4 LPM)
• Total Combined Flow 11.7 GPM (44.3 LPM)
• Can Support up to 2 Rear Remote Valves
(Optional, Dealer Installed)
INSTRUMENTS
• Tachometer
• Fuel and Hour Meters
• Indicator/Warning Lights: High Beam, Engine Oil
Pressure, PTO Engagement, Battery Charge (alt),
Glow Plug, Flashers, Water in Fuel, Neutral,
Check Engine, NOX, Engine Coolant Temperature
• Key Operated Electronic Fuel Shutoff and Glow Plug
Control
• Emission System Indicator Lamps
OTHER STANDARD FEATURES
• Steel Tilt-up Hood
• Rubber Floormat
• Adjustable Spring Suspension Seat
• 2 Post Folding ROPS and Retractable Seat Belt
• Turn Signals, Flashers, Tail Lights and SMV Emblem
• 2 Headlights
• Note: 3-Point Mounted Backhoe Installation Voids
Warranty. Use the Required Subframe Mounting Kit.
FL.2407X LOADER
• One Piece Main Frame with Tapered Arms and
Single Cross Member
• Quick At tach Loader Frame Mount with Pin Lock
• Built-in Parking Stands
• (2) 2.0 inch Double Acting Lift Cylinders
• (2) 2.0 inch Double Acting Bucket Cylinders
• External Hydraulic Lines Routed Along Loader
Main Frame for Protection and Visibility
• Galvanized Steel Pins
• Grease Zerk Points
• Skid Steer or Pin-Type Implement Attachments
• Grille Guard Standard
• Fits all 1E.25/35/40 Series Economy Compact Tractor
Models with R1 AG or R4 Industrial Tires
• Maximum Lift Height at Pivot Pins: 94 inches
• Lift Capacity to Full Height at Pivot Pins: 1,450 lbs
• Lift Capacity 19.5" For ward of Pins: 1,047 lbs
• Break out Force at Pivot Pins: 2,288 lbs
• Rated Hydraulic Pres sure: 2,132 PSI
• Max i mum Roll Back Angle: 26 Degrees
• Dump Angle: 54 Degrees
