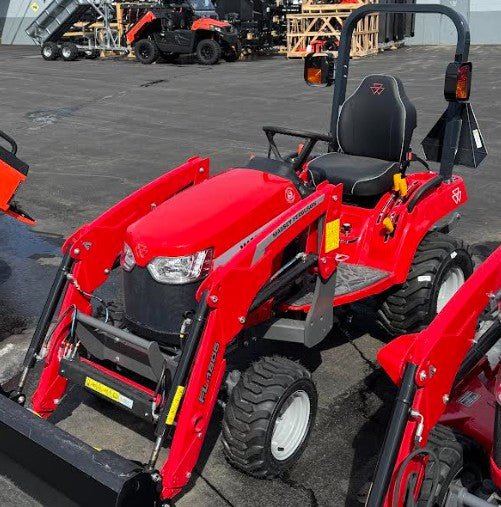

1GC.23 Garden Compact Tractor Loader
Power Train
- Engine: 22.5 Gross HP 3-Cyl Diesel
- 1.12 L Displacement
- 21.6 Net HP @ 2600 RPM
- 18.3 PTO HP @ 2600 RPM
- Air Cleaner: Dry Type Single
- Transmission: 2-Range Hydrostatic with Cruise Control
- Brakes: Wet Disk
- Parking Brake: Standard
- Differential Lock: Standard
- PTO: 540 RPM Independent PTO / 2000 RPM Mid-Independent PTO
Hydraulic System
- 3-Point Hitch: Cat I with Directional Control and Auto-Return Lever System
- Pump: Engine-Driven Gear Pump
- 3-Point Hitch Flow: 4.3 GPM (16.5 LPM)
- Power Steering Flow: 2.0 GPM (7.5 LPM)
- Total Combined Flow: 6.3 GPM (24 LPM)
- Control: Factory Joystick with Integrated Hydraulic Manifold
FL.1805 Loader
- Design: One-Piece Main Frame with Tapered Arms and Single Cross Member
- Mounting: Quick-Attach Frame Mount with Pin Lock and Built-in Parking Stands
- Cylinders: (2) 1.57-inch Double-Acting Lift / (2) 1.57-inch Double-Acting Bucket
- Operation: Simultaneous Lift/Lower and Curl/Dump Functions
- Bucket: 48-inch Standard Duty Skid Steer Bucket
- Grille Guard: Standard
- Max Lift Height: 74 Inches at Pivot Pins
- Lift Capacity: 922 lbs to Full Height at Pivot Pins
- Lift Capacity (19.5" Forward of Pins): 622 lbs
- Breakout Force: 1,392 lbs at Pivot Pins
- Rated Pressure: 1,920 PSI
Instruments & Features
- Gauges: Tachometer / Hourmeter, Digital Fuel and Water Temperature
- Warning Lights: Electrical Charging and Oil Pressure
- Steering: Hydrostatic Power Steering with Tilt Column
- Operator Station: Forward and Reverse Foot Pedal, Hand Accelerator, Rubber Floor Mat, Covered Storage
- Safety: 2-Post Fixed ROPS, Retractable Seatbelt, Turn Signals, Flashers, Tail Lights
- Battery: 390 Cold Cranking Amps
- Note: 3-Point Mounted Backhoe installation voids warranty. Use the required Subframe Mounting Kit.
Available Attachments
- Mowers: MF 2315, 2320, and 2326 Mid-Mounted
- Snow Blower: MF SBx1270 Front-Mounted
- Rotary Broom: MF RBx1524 Front-Mounted
- Blade: MF FBx1574 Front-Mounted
