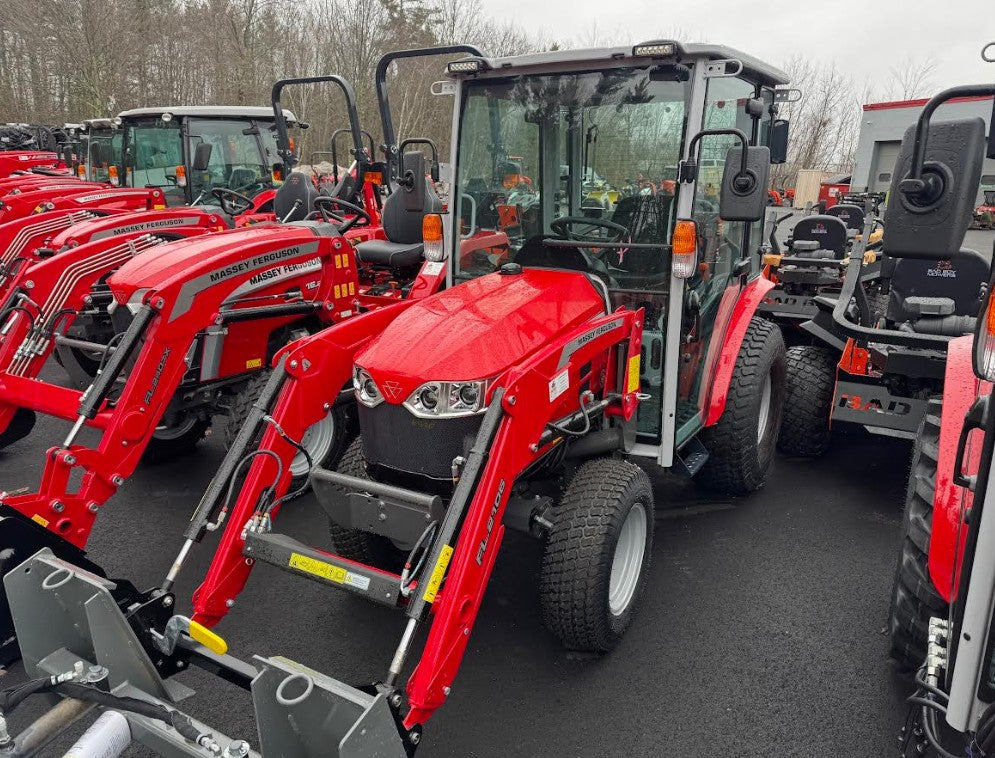

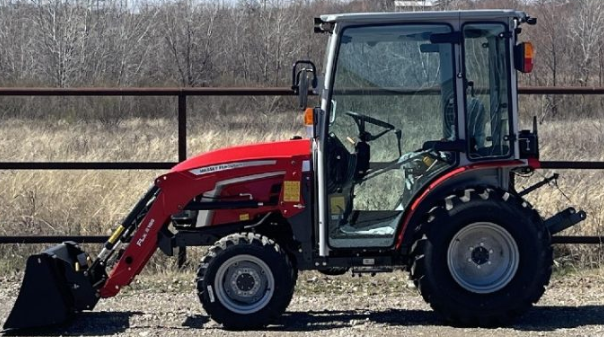

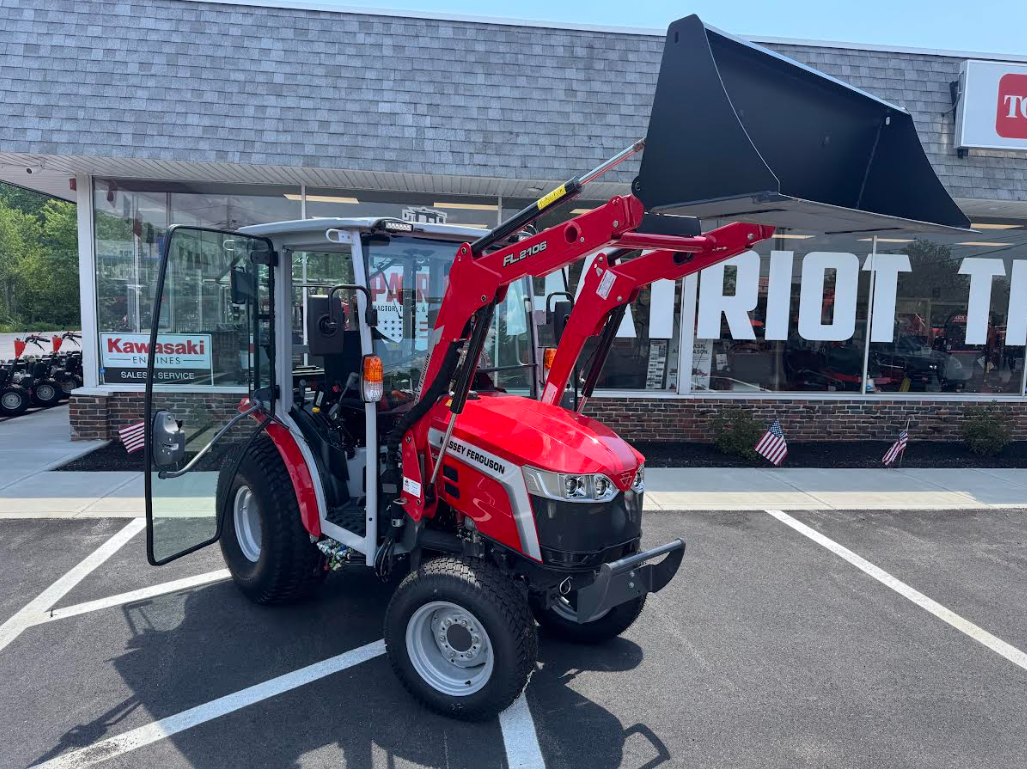

Massey Ferguson 1M.25H / Sub-Compact HVAC Cabbed Tractor / Loader / 25HP Diesel / 3-Range Hydrostatic / Single Rear Remote/ 54" SSQA Bucket

Sub-Compact Tractor

Availability:Out of stock

$30,999.00

Cash Price

Financed purchases include lender fees, so financed totals will be higher than the cash price. See financing options

Sold by quote. To purchase or arrange pickup, use the Contact Us button above.

Pickup available at our Somersworth shop

Usually ready in 2–4 days

Financing available

We service what we sell

Pickup & delivery

Type: Sub-Compact Tractor

SKU: MF1M.25H

Power Train

Engine: 24.8 Gross HP Iseki 3-Cylinder Diesel
1.49 L Displacement
18.2 PTO HP @ 2,600 RPM (Platform) / 16.9 PTO HP @ 2,600 RPM (Cab)
Emissions: Tier 4 Final (EPA and CARB Certified)
Air Cleaner: Dry Single Element
Transmission: Hydrostatic with 3 Non-Synchronized Ranges
Features: Cruise Control with Auto-Throttle Control
Brakes: Wet Disc with Parking Brake
Differential Lock: Foot Pedal Operated
PTO: 540 RPM Independent Electro-Hydraulic (Rear) / Optional 2000 RPM Independent (Mid)

Hydraulic System

3-Point Hitch: Cat I with Position and Response Control
Lift Capacity: 1,058 lbs @ 24 inches
Pump: Dual Engine Driven Gear Pumps
Flow at Remotes: 5.5 GPM (20.8 LPM)
Power Steering Pump: 3.2 GPM (12.1 LPM)
Total Combined Flow: 8.7 GPM (32.9 LPM)
Valves: One Rear Remote Valve Standard on Cab models (up to 2 possible); Loader Joystick Standard

FL.2106 Loader

Design: One-Piece Main Frame with Tapered Arms and Single Cross Member
Mounting: Quick-Attach Frame Mount with Pin Lock and Built-in Parking Stands
Cylinders: (2) 1.77-inch Double Acting Lift / (2) 1.77-inch Double Acting Bucket
Operation: Simultaneous Lift/Lower and Curl/Dump Functions
Bucket: 54-inch Standard Duty Pin-Type Bucket with Grille Guard
Max Lift Height: 83 Inches at Pivot Pins
Lift Capacity: 1,222 lbs to Full Height at Pivot Pins
Breakout Force: 1,870 lbs at Pivot Pins
Rated Pressure: 2,132 PSI

Cab & Standard Features

Standard: Adjustable Suspension Seat, 2-Post Folding ROPS, Tilt Hood, Side Shift Control Levers
Steering: Hydrostatic Power Steering with Foot Accelerator and Hand Throttle
Cab Features: LED Work Lights (Front/Rear), HVAC, Front Wiper with Interval, Rear Window Defroster, Radio Ready
Safety: Turn Signals, Flashers, Tail Lights, SMV Emblem, Retractable Seat Belt
Note: 3-Point Mounted Backhoe installation voids warranty.

Available Attachments
