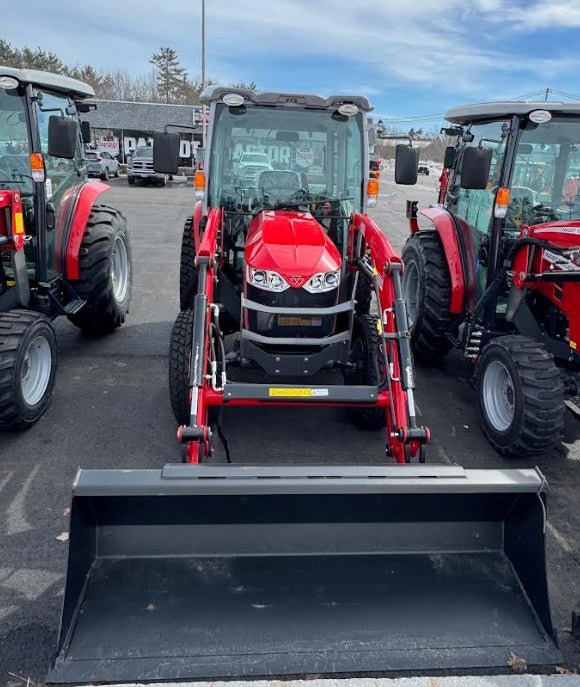

Patriot Tractor
Usually ready in 2-4 days
1M.35 Compact Tractor Loader
(F.O.B. Port of Entry)
Power Train
- Engine: 36.2 Gross HP Iseki 3-Cylinder Liquid Cooled Diesel
- 1.83 L Direct Injection, Naturally Aspirated and Intercooled
- Electronic Engine Control
- 27.5 PTO HP @ 2600 RPM (Shuttle) / 25.7 PTO HP @ 2600 RPM (Hydrostatic)
- Emissions: Tier 4F (EGR, DOC, and Regenerating DPF)
- Air Cleaner: Dual Element Dry Type
- Transmission Options:
- 12F/12R Power Shuttle with 4 Synchronized Gears and 3 Ranges
- Servo-HST Electronic Hydrostatic with 3 Ranges, Cruise Control, Stall Guard, Max Speed Control, and Response Control
- Brakes: Sealed Wet Disc
- Differential Lock: Pedal Operated Rear
- PTO: 540 RPM Independent Electro-Hydraulic (Rear); Optional 1916 RPM (Mid)
Hydraulic System
- 3-Point Hitch: Cat I with Position Control (Standard); Draft Control (Optional)
- Lift Capacity: 2,535 lb (1150 kg) @ 24 inches
- Hitch Features: Telescopic Stabilizers and Telescopic Draft Link Ends
- Pump: Dual Engine Driven Gear Pump
- Flow at Remotes: 12.6 GPM (47.8 LPM)
- Steering: Hydrostatic Power Steering
- Valves: One Rear Remote Valve Standard on Cab models (up to 3 possible); Loader Joystick Standard
FL.2611 Loader
- Design: One-Piece Main Frame with Tapered Arms and Single Cross Member
- Mounting: Quick-Attach Frame Mount with Pin Lock and Built-in Parking Stands
- Cylinders: (2) 2.36-inch Double Acting Lift / (2) 2.36-inch Double Acting Bucket
- Features: Internal Hydraulic Lines, 3rd Function Capable, Soft-Drive Capable, Galvanized Steel Bushings
- Tool Carrier: Universal Skid Steer Tool Carrier
- Max Lift Height: 100 Inches at Pivot Pins
- Lift Capacity: 1,870 lbs to Full Height at Pivot Pins
- Breakout Force: 2,950 lbs at Pivot Pins
- Rated Pressure: 2,277 PSI
Cab & Standard Features
- Platform: ISO Mounted Flat Platform with Molded Rubber Floor Mat
- Cab Features: HVAC, Mobile Phone Holder, Radio Ready, Front/Rear Wiper and Work Lights
- Seat: Premium Adjustable Suspension Seat with Armrest
- Safety: 2-Post Folding ROPS, Retractable Seat Belt, Back-up Alarm Wiring, Auto Throttle Disengagement
- Note: 3-Point Mounted Backhoe installation voids warranty. Use the required Subframe Mounting Kit.
