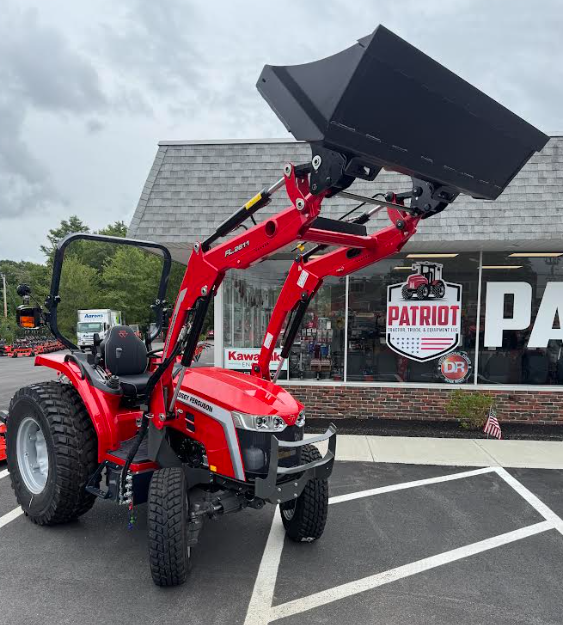

MASSEY FERGUSON 1M.40H / COMPACT TRACTOR / 3 RANGE HYDROSTATIC / 40 HP TURBOCHARGED DIESEL / 72" SSQA BUCKET

MASSEY FERGUSON 1M.40H / COMPACT TRACTOR/ 3 RANGE HYDROSTATIC /40 HP TURBOCHARGED DIESEL / 72" SSQA BUCKET

$37,200 CASH OR PAYMENTS AS LOW AS $547/ MO!

MASSEY FERGUSON 1M.40

TRACTOR FEATURES:
IMPLEMENT FEATURES
POWER TRAIN
• Engine:
39.4 Gross HP Iseki 3-Cylinder liquid cooled
Diesel, 1.83 L Direct Injection, Naturally Aspirated
and Intercooled, Electronic Engine Control
30.0 PTO HP @ 2600 RPM - Shuttle
27.9 PTO HP @ 2600 RPM - Hydrostatic
Emission Standard Category: Tier 4F
Exhaust Gas Recirculation (EGR)
Diesel Oxidation Catalyst (DOC)
Regenerating Diesel Particulate Filter (DPF)
• Dual Element Dry Type Air Cleaner
• Transmission:
12F/12R Power Shuttle with 4 Synchronized Gears
 and 3 Ranges.
• Servo-HST Electronic Hydrostatic Transmission
 with 3 Ranges, Cruise Control, Stall Guard,
 Max Speed Control and Response Control
• Sealed Wet Disc Brakes
• Pedal Operated Rear Differential Lock
• PTO:
Rear - 540 RPM Independent Electro Hydraulic
Mid - Optional 1916 RPM Independent
HYDRAULIC SYSTEM
• 3-Point Hitch Cat I with Position Control Standard, Draft
Control Optional
• Lift Capacity @ 24 inches - 2,535 lb (1150 kg)
• Telescopic Stabilizers
• Telescopic Draft Link Ends
• Dual Engine Driven Gear Pump
• Flow at Remotes 12.6 GPM (47.8 LPM)
• Hydrostatic Power Steering
• One Rear Remote Valve Standard on Cab Models,
up to 3 Possible. Loader Joystick Standard
INSTRUMENTS
• Combination Digital and Analog Front Dash Display
• Tachometer and Hour Meter
• Temperature and Fuel Gauges
• 4wd Engagement Indicator
• Warning Lights: High Beam Indicator, Engine Oil
Pressure, PTO Engagement, Battery Charge (alt)
Indicator, Glow Plug Indicator and Flasher Indicators
• Key Operated Electronic Fuel Shutoff and Glow Plug
Control
OTHER STANDARD FEATURES
• ISO Mounted Flat Platform w/Molded Rubber Floor Mat
• One Piece Tilt-up Hood
• 3 Position Tilt Steering
• Premium Adjustable Suspension Seat with Arm Rest
• 2 Post Folding ROPS and Retractable Seat Belt
• Turn Signals, Flashers, Tail Lights and SMV Emblem
• 4 Headlights
• Back up Alarm Wiring
• Auto Throttle Disengagement
CAB FEATURES
• Heating and Air Conditioning
• Mobile Phone Holder
• Speakers, Radio Ready
• Radio Antenna
• Front and Rear Wiper / Washer
• 2 Front Work Lights
• 2 Rear Work Lights
• Rear and Side opening Windows
• Right and Left Entry Doors
• Right and Left External Mirrors
• Premium Digital Display w/Ground Speed (HST Only),
Engine Coolant, Temperature, Fuel Level and
Diagnostic Readout
• 12V Power Outlet, External Access on Right Engine Hood
• ROPS Certified
• Recirculation Filter
• Note: 3-Point Mounted Backhoe Installation Voids
Warranty. Use the Required Subframe Mounting Kit.
FL.2611 LOADER
• One Piece Main Frame with Tapered Arms and
Single Cross Member
• Quick At tach Loader Frame Mount with Pin Lock
• Built-in Parking Stands
• (2) 2.36 inch Double Acting Lift Cylinders
• (2) 2.36 inch Double Acting Bucket Cylinders
• Hydraulic Lines Routed In side Main Frame for
Protection and Visibility
• 3rd Function Capable, Soft-Drive Capable
• Galvanized Steel Bushings with Recessed Grease Points
• Universal Skid Steer Tool Carrier
• Grille Guard Standard
• Fits 1M.35 and 1M.40 Com pact Trac tor Models
with R1 AG, R3 Turf, or R4 Industrial Tires
• Max i mum Lift Height at Pivot Pins: 100 Inches
• Lift Capacity to Full Height at Pivot Pins: 1,870 lbs
• Lift Capacity 19.5" For ward of Pins: 1,380 lbs
• Break out Force at Pivot Pins: 2,950 lbs
• Rated Hydraulic Pressure: 2,277 PSI
• Maximum Roll Back Angle: 42 Degrees
• Dump Angle: 55 Degrees
