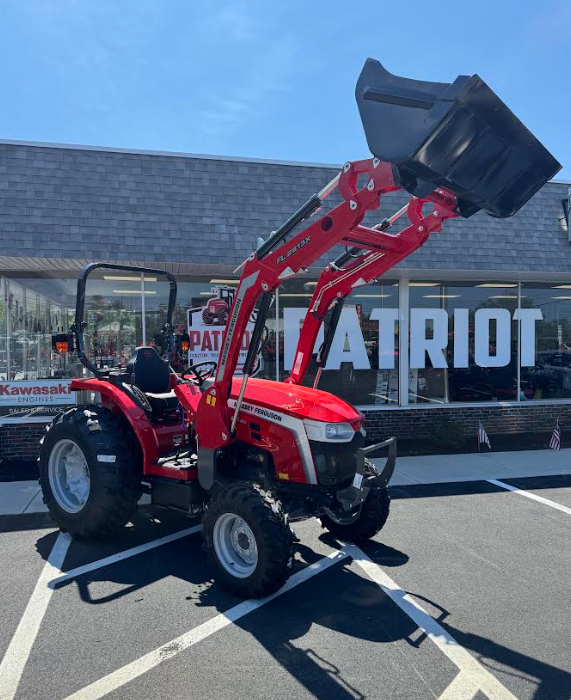

Massey Ferguson MF2E.60H, 60 HP Turbo Compact Tractor, 3 Range HST, loader, 72" Skid-Steer Bucket
Massey Ferguson MF2E.60 HST Tractor Features:
IMPLEMENT FEATURES
POWER TRAIN
• Engine:
57.3 Gross Engine HP Iseki 4-Cylinder liquid
cooled Diesel, 2.43 L Direct Injection,
Turbocharged, Internal Exhaust Gas
Recirculation (EGR), Diesel Oxidation
Catalyst (DOC), Regenerating Diesel
Particulate Filter (DPF), Electronic Engine
Control
48.8 PTO HP @ 2600 RPM - 8x8
45.0 PTO HP @ 2600 RPM - Hydrostatic
Emission Standard Category: Tier 4 Final
CARB and EPA Certified
• Dual Element Dry Type Air Cleaner
• Transmission:
•8F/8R Synchro Shuttle with 2 Synchronized Gears
(3rd and 4th) and 2 Ranges
•Servo-Assist Electronic Hydrostatic Transmission
with 3 Ranges and Cruise Control
• 4WD Front Axle with Center Drive Line and Bevel-gear
Final Drives
• Sealed Wet Disc Brakes
• Pedal Operated Differential Lock
• PTO:
Rear - 540 RPM Independent Electro Hydraulic
HYDRAULIC SYSTEM
• 3-Point Hitch Cat. I and II with Position Control Standard,
Draft Control Optional
• Lift Capacity @ 24 inches - 2,425 lb (1100 kg)
• Telescopic Stabilizers
• Telescopic Draft Link Ends with Cat I and Cat II Cross
Drilled Ball Ends
• Flow at Remotes 12.6 GPM (47.8 LPM)
• Hydrostatic Power Steering
ELECTRICAL
• 12-Volt DC System
• 90 Amp Alternator
INSTRUMENTS
• Combination Digital and Analog Front Dash Display
• Tachometer
• Fuel and Hour Meters
• Indicator/Warning Lights: High Beam, Engine Oil
Pressure, PTO Engagement, Battery Charge (alt),
Glow Plug, Flashers, Water in Fuel, Neutral,
Check Engine, NOX, Engine Coolant Temperature
• Key Operated Electronic Fuel Shutoff and Glow Plug
Control
• Emission System Indicator Lamps
OTHER STANDARD FEATURES
• ISO Mounted Flat Platform
• One Piece Tilt-up Hood
• 2 Post Folding ROPS
• Mechanical Suspension Seat with Seat Belt
• Turn Signals, Flashers, Tail Lights and SMV Emblem
• 2 Headlights
• Tool Box
NOTES:
• Specifications are Manufacturers estimates
at time of publication and are subject to change
without prior notification.
• 3-Point Back hoe Installation Voids Warranty
FL.2813X PIN TYPE STYLE LOADER
• One Piece Main Frame with Tapered Arms and
Single Cross Member
• Quick Attach Loader Frame Mount with Pin Lock
• Built-in Parking Stands
• (2) 1.4 inch Double Acting Lift Cylinders
• (2) 1.4 inch Double Acting Bucket Cylinders
• External Hydraulic Lines Routed Along
Main Frame for Protection and Visibility
• Galvanized Steel Pins
• Recessed Grease Zerk Points
• 72-inch Standard Duty Skid Steer Bucket
• Grille Guard Standard
• Fits all MF 2E.50 and MF 2E.60 Series Tractor Models
• Maximum Lift Height at Pivot Pins: 111 Inches
• Lift Capacity to Full Height at Pivot Pins: 3,016 lbs
• Lift Capacity 19.5" Forward of Pins: 2,191 lbs
• Break out Force at Pivot Pins: 4,175 lbs
• Rated Hydraulic Pressure: 2,346 PSI
• Maximum Roll Back Angle: 44 Degrees
• Dump Angle: 54 Degrees
