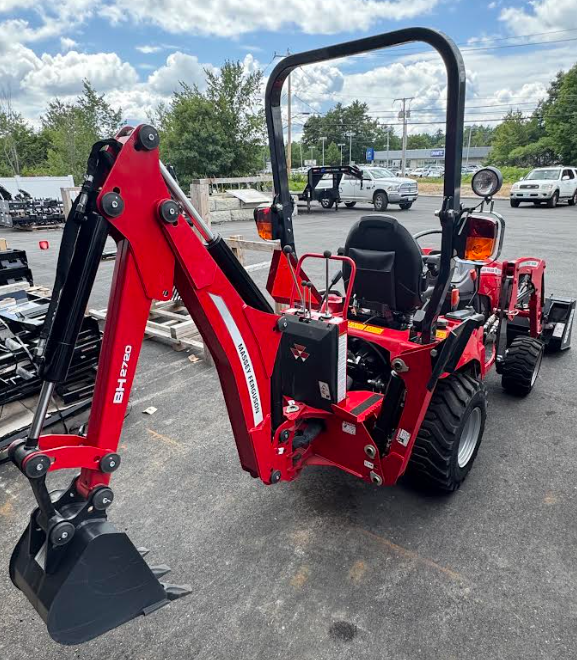

USED 2023 MASSEY FERGUSON GC1725MB / SUB-COMPACT TRACTOR / 25 HP ISEKI DIESEL / FL.1805 LOADER / BH2720 BACKHOE
MASSEY FERGUSON
Used

USED 2023 MASSEY FERGUSON GC1725MB / SUB-COMPACT TRACTOR / 25 HP ISEKI DIESEL / FL.1805 LOADER / BH2720 BACKHOE

Sub-Compact Tractor
Availability:In stock — 1 unit available
$22,900.00
Cash Price

Financed purchases include lender fees, so financed totals will be higher than the cash price. See financing options

Sold by quote. To purchase or arrange pickup, use the Contact Us button above.
Pickup available at our Somersworth shop
Usually ready in 2–4 days
Financing available
We service what we sell
Pickup & delivery
Type: Sub-Compact Tractor
SKU: MFGC1725MB

USED 2023 MASSEY FERGUSON GC1725MB / SUB-COMPACT TRACTOR / 25 HP ISEKI DIESEL / FL.1805 LOADER / BH2720 BACKHOE

ONLY 16 ORIGINAL HOURS! REMAINING WARRANTY IS TRANSFERABLE.

  • Engine: 24.5 Gross HP, 3-Cyl Diesel
    • 1.12 L Displacement
    • 23.6 Net HP @ 3000 RPM
    • 18.5 PTO HP @ 3000 RPM
  • Air Cleaner: Dry Type Single
  • Transmission: 2-Range Hydrostatic with Cruise Control
  • Brakes: Wet Disk
  • Parking Brake: Standard
  • Differential Lock: Standard
  • PTO: 540 RPM Independent PTO / 2000 RPM Mid-Independent PTO

Hydraulic System
  • 3-Point Hitch: Cat I with Directional Control, Auto-Return Lever System
  • Pump: Engine-Driven Gear Pump
  • 3-Point Hitch Flow: 4.9 GPM (18.8 LPM)
  • Power Steering Flow: 2.0 GPM (7.5 LPM)
  • Total Combined Flow: 6.9 GPM (26.3 LPM)

MF BH2720 Backhoe
  • Digging Depth: 76 inches (1.9 m)
  • Max Reach: 107 inches (2.7 m)
  • Transport Height: 71 inches (1.8 m)
  • Stabilizer Spread (Transport): 51 inches (1.3 m)
  • Stabilizer Spread (Operating): 81 inches (2.1 m)
  • Loading Height: 66 inches (1.7 m)
  • Angle of Departure: 22 Degrees
  • Swing Arc: 150 Degrees
  • Bucket Rotation: 177 Degrees
  • Shipping Weight: 573 lbs (260 kg)
  • Digging Force (Bucket Cylinder): 2184 lbs (911 kg)
  • Digging Force (Dipper Cylinder): 1541 lbs (699 kg)
  • Swing Cylinder: Single Boom
  • Note: Dimensions may change due to tire size. Backhoe must be detached before installing mid-mount mower.

FL.1805 Loader
  • Frame: One-Piece Main Frame with Tapered Arms and Single Cross Member
  • Mounting: Quick-Attach Loader Frame Mount with Pin Lock
  • Parking: Built-in Parking Stands
  • Cylinders: (2) 1.57-inch Double-Acting Lift / (2) 1.57-inch Double-Acting Bucket
  • Operation: Simultaneous Lift/Lower and Curl/Dump Functions
  • Hydraulic Lines: Routed inside Main Frame for protection and visibility
  • Maintenance: Galvanized Pins with Recessed Grease Points
  • Bucket: 48-inch Standard Duty Skid Steer Bucket
  • Grille Guard: Standard
  • Max Lift Height (Pivot Pins): 74 Inches
  • Lift Capacity (Full Height at Pivot Pins): 922 lbs
  • Lift Capacity (19.5" Forward of Pins): 622 lbs
  • Breakout Force (Pivot Pins): 1,392 lbs
  • Rated Hydraulic Pressure: 1,920 PSI

Instruments & Other Features
  • Instruments: Tachometer / Hourmeter, Digital Fuel and Water Temp Gauges
  • Warning Lights: Electrical Charging, Oil Pressure, Water Temperature
  • Steering: Hydrostatic Power Steering with Tilt Column
  • Operator Station: Side-by-Side Forward and Reverse Pedals, Hand Accelerator, Rubber Floor Mat, Covered Storage with 12V Socket
  • Seat: Fully Adjustable Swivel Seat with Armrests and Retractable Seatbelt
  • Safety: 2-Post Folding ROPS, Turn Signals, Flashers, Tail Lights
  • Loader Control: Factory Joystick with Pressure and Return Line Manifold
  • Battery: 390 Cold Cranking Amps
  • Note: 3-Point Mounted Backhoe installation voids warranty. Use the required Subframe Mounting Kit.
